Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your VAXCEL Bozeman 14 Inch Flush Mount Rustic Ceiling Light. Please read this manual thoroughly before beginning installation or use, and retain it for future reference.

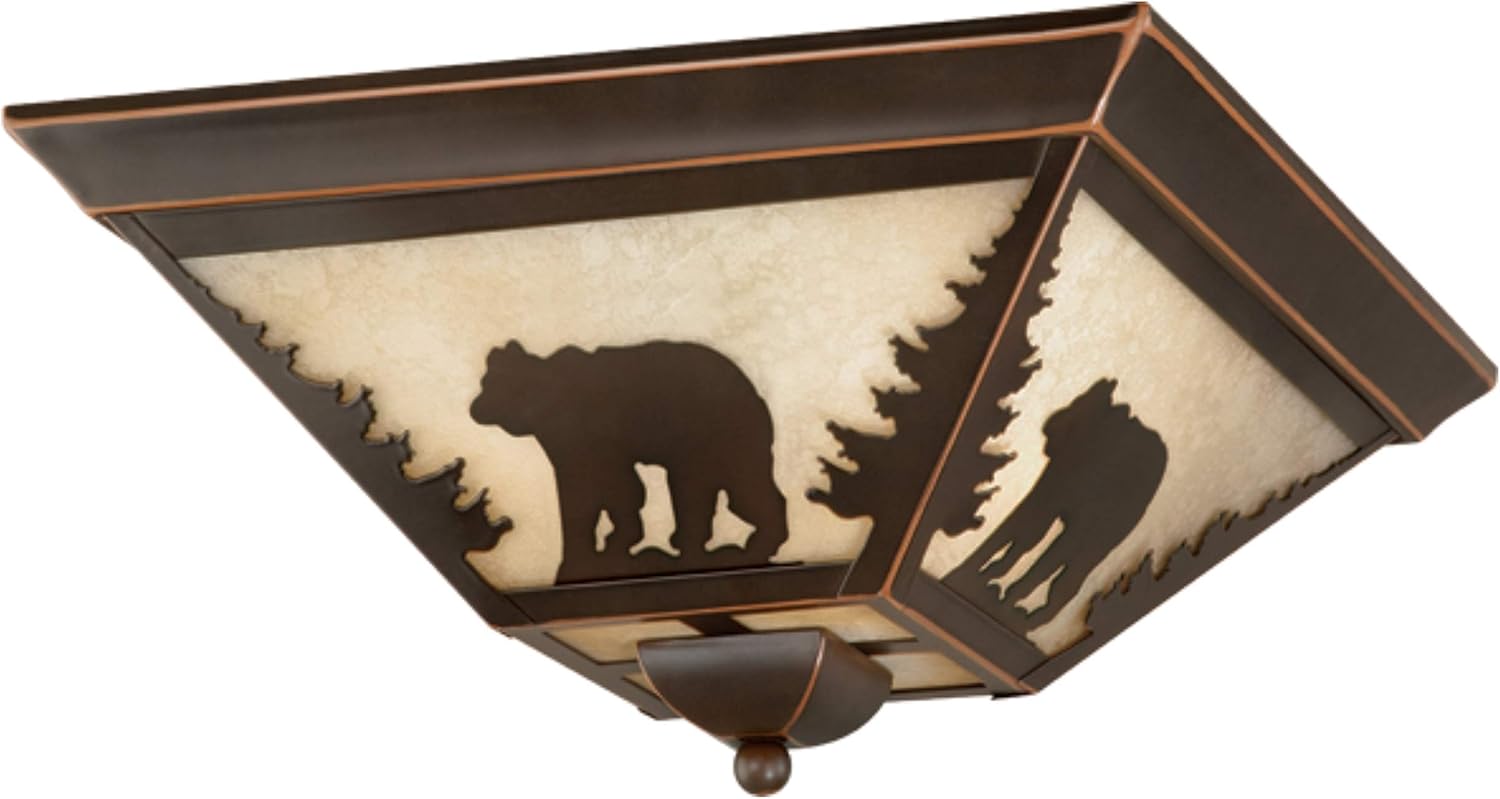

Image: The VAXCEL Bozeman 14 Inch Flush Mount Rustic Ceiling Light, featuring a burnished bronze finish and amber flake glass panels with bear and tree silhouettes.
Important Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
- Always consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections comply with local codes, ordinances, and the National Electric Code (NEC).
- Do not exceed the maximum wattage specified for the light bulbs.
- Handle glass components with care to prevent breakage.
- This fixture is ETL-listed, ensuring compliance with safety and performance standards.
Package Contents
Before beginning assembly, unpack all parts and ensure the following items are present:
- Light Fixture Assembly (Burnished Bronze finish with Amber Flake Glass panels)
- Mounting Hardware Kit (includes mounting strap, outlet box screws, wire nuts, ground screw)
- Shade/Glass Panels
- Instruction Manual (this document)
Note: Light bulbs are not included and must be purchased separately.
Setup and Installation
For detailed installation steps, please refer to the official Installation Manual (PDF) provided by VAXCEL. A link to this document is available for download:
Download Installation Manual (PDF)
General Installation Steps (Summary):
- Turn Off Power: Locate the circuit breaker or fuse box and turn off the power to the junction box where the fixture will be installed.
- Prepare Mounting: Attach the mounting strap to the outlet box using the provided screws.
- Wire Connections: Connect the fixture's wires to the house wires using wire nuts. Typically, black to black (live), white to white (neutral), and bare copper/green to bare copper/green (ground).
- Secure Fixture: Carefully push the wired fixture into place and secure it to the mounting strap.
- Install Glass Panels: Insert the amber flake glass panels into the fixture.
- Install Bulbs: Screw in the appropriate light bulbs (E26 Medium base, max 60 watts each).
- Restore Power: Turn the power back on at the circuit breaker or fuse box.
Image: The VAXCEL Bozeman light installed in a kitchen, demonstrating its suitability for low ceilings (less than 10 feet).
Image: The VAXCEL Bozeman light shown in a hallway and entryway, highlighting its compact design that fits well in tight spaces.
Operating Instructions
Turning On/Off:
The VAXCEL Bozeman ceiling light is operated via a standard wall switch connected to the fixture's electrical circuit. Simply toggle the wall switch to turn the light on or off.
Dimmable Functionality:
This fixture is designed to be dimmable. To utilize the dimming feature, you must:
- Use dimmable light bulbs (e.g., dimmable LED, incandescent, or halogen bulbs).
- Install a compatible dimmer wall switch (sold separately) in place of a standard on/off switch.
Image: A visual guide to compatible bulb types for the VAXCEL Bozeman light, including Halogen, Incandescent, Vintage Filament, LED, and LED Vintage Filament. Note: Dimmable functionality requires dimmable bulbs and a compatible dimmer switch.
Maintenance
Cleaning:
- Always ensure the power is turned off and the fixture has cooled before cleaning.
- Wipe the metal parts with a soft, dry cloth.
- Clean the glass panels with a soft cloth dampened with a mild, non-abrasive glass cleaner. Avoid harsh chemicals that may damage the finish or glass.
- Do not spray cleaner directly onto the fixture.
Bulb Replacement:
- Turn off the power to the fixture at the circuit breaker or fuse box.
- Allow bulbs to cool completely before touching them.
- Carefully remove the glass panels if necessary to access the bulbs.
- Unscrew the old bulb and screw in a new E26 Medium base bulb, ensuring it does not exceed 60 watts.
- Reinstall glass panels.
- Restore power.
Image: The VAXCEL Bozeman light in a bathroom setting, illustrating its indoor damp rating, meaning it is resilient against steam and condensation but not direct water contact.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers. |
|
|
| Dimmable feature not working. |
|
|
Specifications
| Brand | VAXCEL |
| Model Name | CC55714BBZ |
| ASIN | B005VO662G |
| UPC | 884656725162 |
| Product Dimensions | 14"L x 14"W x 5.75"H |
| Item Weight | 4.75 pounds |
| Material | Alloy Steel |
| Finish Type | Burnished Bronze |
| Shade Material | Amber Flake Glass |
| Number of Light Sources | 3 |
| Bulb Base | E26 Medium |
| Max Wattage per Bulb | 60 watts |
| Voltage | 120 Volts |
| Special Feature | Dimmable, Warranty Included |
| Indoor/Outdoor Usage | Indoor (Damp Rated) |
| Safety Rating | ETL Listed |

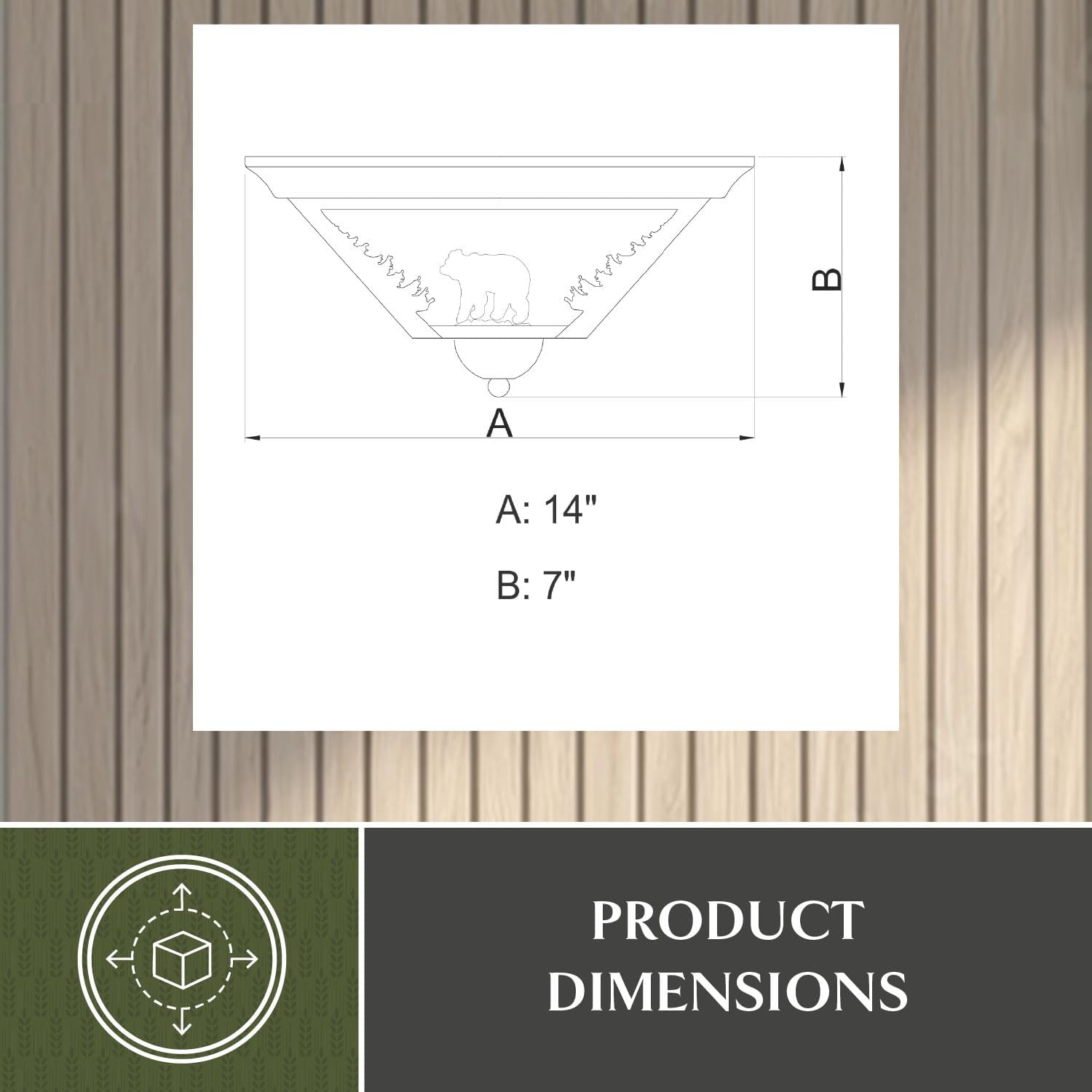

Image: A technical diagram illustrating the product dimensions, with a width (A) of 14 inches and a height (B) of 7 inches.
Warranty Information
The VAXCEL Bozeman 14 Inch Flush Mount Rustic Ceiling Light comes with a Limited Warranty. For specific details regarding the terms and conditions of your warranty, please refer to the documentation included with your purchase or contact VAXCEL customer support.
It is recommended to retain your proof of purchase for warranty claims.
Customer Support
If you have any questions, require technical assistance, or need to report a missing/damaged part, please contact VAXCEL customer support. Refer to the contact information provided on the product packaging or the official VAXCEL website.
For additional resources, you may visit the VAXCEL store on Amazon: VAXCEL Amazon Store.
