Magic Chef MCSFS12ST 3 Tier Food Steamer Instruction Manual

Important Safety Instructions

Please read and understand all safety instructions before operating the Magic Chef 3 Tier Food Steamer. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not immerse the heating base, cord, or plug in water or other liquids.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Always place the steamer on a stable, heat-resistant surface away from edges.
• Do not operate the steamer without water in the reservoir.
• Exercise extreme caution when opening the cover or removing baskets during or after operation, as hot steam will escape.
• Unplug the steamer from the outlet when not in use and before cleaning. Allow it to cool completely before handling or storing.
• Do not use attachments not recommended by the manufacturer.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.

Product Components

Familiarize yourself with the parts of your Magic Chef 3 Tier Food Steamer:

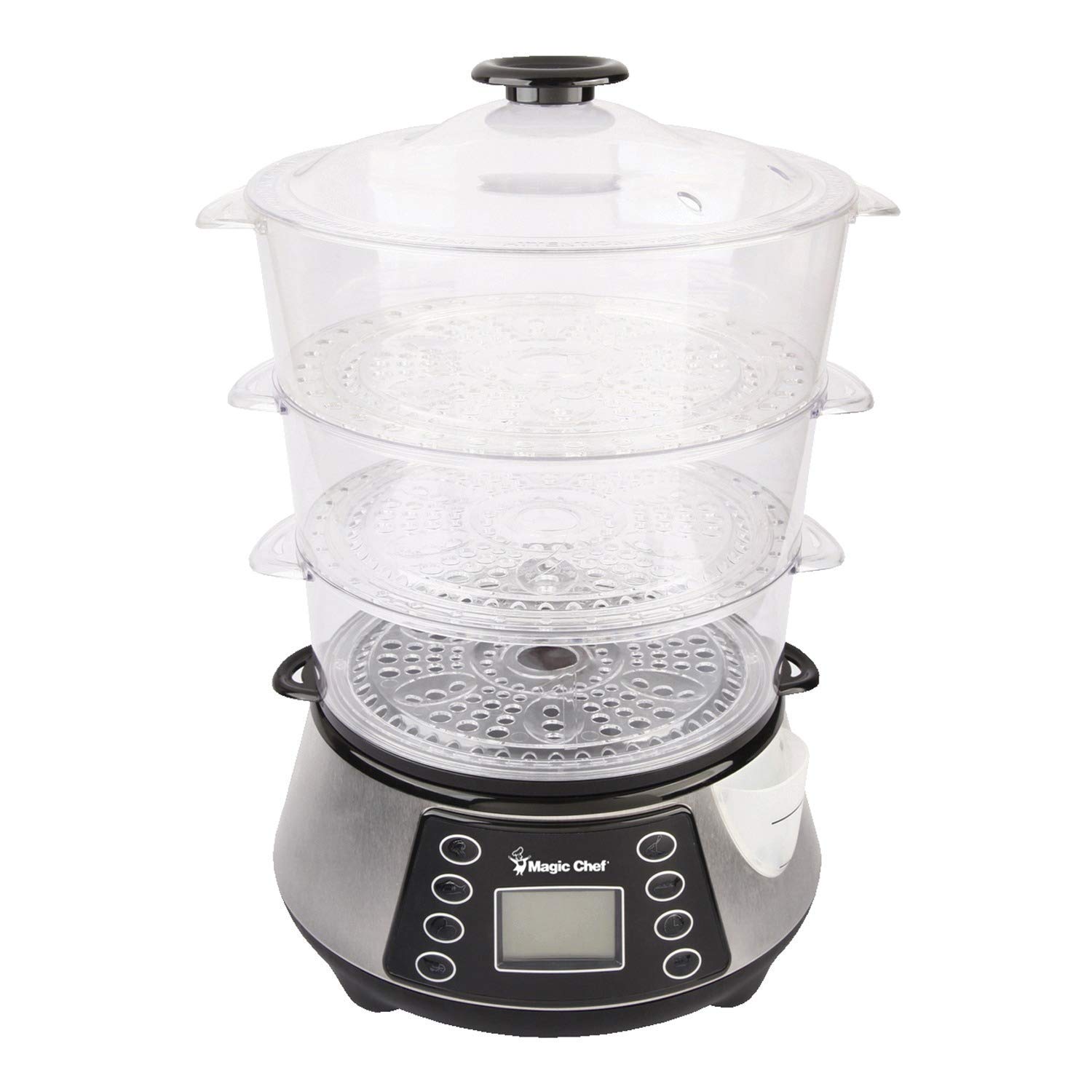

Image: Fully assembled Magic Chef 3 Tier Food Steamer.

• Heating Base: Contains the heating element and water reservoir.
• Drip Tray: Collects condensation and food juices.
• Food Baskets (3): Transparent tiers for steaming different foods.
• Separator Rings (3): Used to stack the food baskets.
• Rice Bowl: A dedicated bowl for steaming rice or other grains.
• Cover: Transparent lid to retain steam and heat.

Setup

Follow these steps to prepare your steamer for use:

1. Place the heating base on a clean, dry, and stable countertop or table. Ensure there is adequate ventilation around the unit.
2. Insert the drip tray securely into the heating base.
3. Stack the desired number of food baskets onto the drip tray, using the separator rings between each basket. The baskets are designed to fit together in a specific order.
4. Place the cover firmly on the top basket.

Operating Instructions

1. Filling the Water Reservoir

• Before adding food, fill the water reservoir in the heating base with clean, cold water. Do not exceed the 'MAX' fill line indicated on the reservoir.
• For longer steaming times, ensure the water level is sufficient.

2. Arranging Food Baskets

• Place food items into the food baskets. For optimal steaming, arrange food in a single layer or with sufficient space for steam to circulate.
• Place foods requiring longer cooking times in the lower baskets, closer to the heating base.
• Use the included rice bowl for steaming rice or other small grains, placing it within one of the food baskets.

Image: Example of food arrangement in steamer baskets.

3. Using the Control Panel

• Plug the steamer into a standard electrical outlet. The LCD display will illuminate.
• The steamer features 7 "Easy Touch" program settings for common food types. Select the appropriate program by pressing the corresponding button.
• The LCD display will show the selected steaming time.
• Press the Start/Stop button to begin the steaming process.

Image: Control panel with LCD display and program buttons.

4. Steaming Process

• The steamer will begin to heat the water, producing steam that rises through the baskets to cook the food.
• Monitor the cooking progress through the transparent baskets and cover.
• Avoid lifting the cover frequently, as this releases steam and extends cooking time.

5. Auto Shut-Off

• The steamer is equipped with an auto shut-off feature. It will automatically turn off when the water reservoir is empty or the set cooking time has elapsed.
• A signal may sound to indicate the completion of the cooking cycle.
• Always unplug the unit after use.

Cooking Guide

The following table provides approximate steaming times for common foods. Times may vary based on food quantity, freshness, and desired doneness. Always ensure food is cooked to a safe internal temperature.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your steamer.

1. Always unplug the steamer and allow it to cool completely before cleaning.
2. Empty any remaining water from the reservoir and discard contents from the drip tray.
3. The food baskets, separator rings, rice bowl, and cover are dishwasher safe. Alternatively, wash them in warm, soapy water and rinse thoroughly.
4. Wipe the exterior of the heating base with a damp cloth. Do not use abrasive cleaners or scourers. Never immerse the heating base in water.
5. Descaling: Over time, mineral deposits may accumulate in the water reservoir. To descale, fill the reservoir with a mixture of equal parts water and white vinegar. Run the steamer for 20-30 minutes. Unplug, let cool, then rinse the reservoir thoroughly several times with clean water.
6. Ensure all parts are completely dry before reassembling or storing the steamer.

Troubleshooting

If you encounter issues with your steamer, refer to the following common problems and solutions:

Specifications

• Model: MCSFS12ST
• Brand: Magic Chef
• Material: Stainless Steel (exterior)
• Tiers: 3 Food Baskets
• Control: 7 "Easy Touch" Program Settings, LCD Digital Display
• Features: Auto Shut-Off, Dishwasher Safe Removable Parts
• Item Weight: Approximately 5.3 pounds
• UPC: 665679012770

Warranty and Support

This Magic Chef MCSFS12ST 3 Tier Food Steamer comes with a 1-year warranty covering parts and labor from the date of purchase.

For warranty claims, technical assistance, or customer support, please contact Magic Chef customer service. Keep your proof of purchase for warranty validation.

Please refer to the official Magic Chef website or your purchase documentation for the most current contact information.
