Auna CS-5838 5-inch 3-Way Coaxial Car Speakers User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Auna CS-5838 5-inch 3-way coaxial car speakers. Please read this manual thoroughly before installation and retain it for future reference.

Image 1.1: A pair of Auna CS-5838 5-inch 3-way coaxial car speakers with grilles.

2. Product Overview and Features

The Auna CS-5838 speakers are designed to deliver clear and powerful audio in your vehicle. They feature a 3-way coaxial design, integrating a woofer, midrange, and tweeter into a single unit for a full-range sound experience.

• 3-Way Coaxial Design: Integrates a woofer, midrange, and tweeter for comprehensive sound reproduction.
• High Power Handling: Capable of handling up to 600 Watts maximum power.
• Optimized Membrane Materials: Selected for weight and rigidity to ensure clarity in mid-range frequencies and distortion-free sound.
• ASV Voice Coils: Relatively large ASV voice coils contribute to enhanced performance.
• Neodymium Tweeter: Generates a powerful magnetic field, which increases the sensitivity of the voice coil and ultimately leads to optimized sound quality.
• Aesthetic Design: Features a discreet black and silver finish to complement various car interiors.

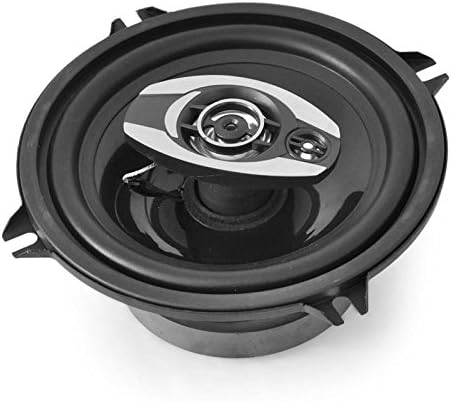

Image 2.1: Close-up view of the Auna CS-5838 speaker cone, showing the integrated tweeter and midrange components.

3. Safety Information

Please observe the following safety precautions to prevent damage to the speakers, your vehicle, or personal injury:

• Professional Installation Recommended: If you are unsure about the installation process, seek assistance from a qualified car audio technician.
• Disconnect Battery: Always disconnect the vehicle's negative battery terminal before beginning any electrical work to prevent short circuits.
• Proper Wiring: Ensure all wiring connections are secure and correctly polarized (positive to positive, negative to negative) to avoid damage and ensure optimal sound.
• Avoid Water and Moisture: Do not expose the speakers to water or excessive moisture.
• Secure Mounting: Ensure speakers are securely mounted to prevent them from becoming loose during vehicle operation.
• Volume Levels: Prolonged exposure to high volume levels can cause hearing damage.

4. Package Contents

Upon opening the package, please verify that all components are present and undamaged:

• 2 x Auna CS-5838 5-inch 3-Way Coaxial Car Speakers
• 2 x Speaker Grilles (if applicable)
• Mounting Screws and Clips (quantity may vary)
• User Manual (this document)

5. Installation and Setup

Follow these steps for proper installation of your Auna CS-5838 speakers:

1. Preparation:
   • Disconnect the vehicle's negative battery terminal.
   • Determine the mounting location (e.g., door panels, rear deck). Ensure there is sufficient depth and clearance for the speakers.
   • Remove existing speakers or prepare the mounting holes.
2. Mounting:
   • Carefully place the speaker into the mounting opening.
   • Align the mounting holes on the speaker frame with the holes in the vehicle.
   • Secure the speaker using the provided mounting screws. Do not overtighten.
3. Wiring:
   • Identify the positive (+) and negative (-) terminals on the speaker. These are typically marked.
   • Connect the positive speaker wire from your car stereo or amplifier to the positive (+) terminal of the speaker.
   • Connect the negative speaker wire from your car stereo or amplifier to the negative (-) terminal of the speaker.
   • Ensure all connections are tight and insulated to prevent short circuits.


   Image 5.1: Rear view of the Auna CS-5838 speaker, showing the positive and negative wiring terminals.

4. Final Steps:
   • If applicable, attach the speaker grilles.
   • Reconnect the vehicle's negative battery terminal.

6. Operation

Once properly installed, your Auna CS-5838 speakers will function as part of your vehicle's audio system. Their operation is controlled by your car stereo or external amplifier.

• Power On: Turn on your car stereo or amplifier.
• Volume Adjustment: Adjust the volume level on your car stereo. Start with a low volume and gradually increase it to a comfortable listening level.
• Audio Settings: Use your car stereo's equalizer, balance, and fader controls to optimize the sound to your preference.

7. Maintenance

To ensure the longevity and optimal performance of your speakers, follow these simple maintenance guidelines:

• Cleaning: Use a soft, dry cloth to gently wipe dust from the speaker grilles and cones. Avoid using harsh chemicals or abrasive cleaners.
• Avoid Moisture: Keep speakers dry. If they become wet, allow them to dry completely before use.
• Inspect Connections: Periodically check wiring connections to ensure they remain secure.
• Protect from Damage: Avoid placing heavy objects on the speakers or exposing them to sharp impacts.

8. Troubleshooting

If you encounter issues with your Auna CS-5838 speakers, refer to the following common problems and solutions:

9. Specifications

Detailed technical specifications for the Auna CS-5838 speakers:

10. Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact Auna customer service directly. Keep your proof of purchase for warranty claims.

Manufacturer: Auna
