Introduction
This instruction manual provides essential information for the proper setup, operation, and maintenance of your ProTeam Cuff, Swivel 1.5 (#PT-100694). This component is designed to ensure a secure and flexible connection for your vacuum hose, enhancing the efficiency of your cleaning tasks. Please read this manual thoroughly before use.

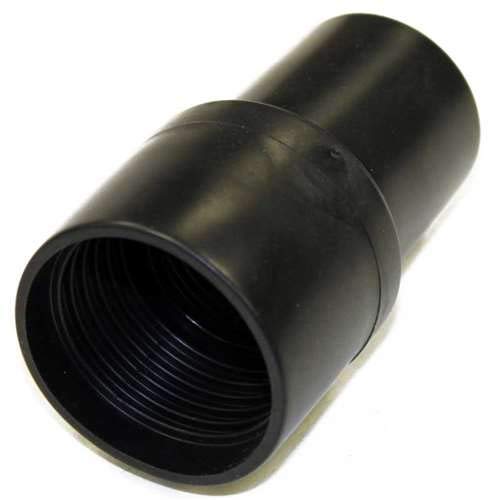

Image: The ProTeam Cuff, Swivel 1.5, a black plastic component designed for vacuum hose connections.
Setup
The ProTeam Cuff, Swivel 1.5 is designed for easy integration with compatible vacuum hoses and equipment. Ensure your vacuum hose has a 1.5-inch diameter for proper fitment.
- Inspect Components: Before installation, verify that the cuff and your vacuum hose ends are clean and free from debris or damage.
- Connect to Hose: Firmly insert one end of the vacuum hose into the cuff. Twist gently while pushing to ensure a snug fit. The swivel design allows for rotational movement once connected.
- Connect to Equipment: Attach the other end of the hose (or the other end of the cuff if it's a dual-ended swivel) to your vacuum cleaner's inlet or desired attachment. Ensure a secure connection to prevent air leaks, which can reduce suction power.
- Test Connection: Once connected, gently pull on the hose to confirm the cuff is securely attached to both the hose and the vacuum/attachment.
Video: This video demonstrates the connection process of a vacuum hose adapter, similar to the ProTeam Cuff, Swivel 1.5. It shows how to securely join two sections of a vacuum hose using an adapter, ensuring a tight fit for effective vacuuming.
Operating
The ProTeam Cuff, Swivel 1.5 is a passive component designed to facilitate hose movement and connection. No specific operational steps are required beyond ensuring a secure fit.
- Secure Connection: Always ensure the cuff is tightly connected to both the vacuum hose and the vacuum or attachment. A loose connection can lead to loss of suction.
- Flexibility: The swivel feature allows the hose to rotate freely, preventing kinks and tangles during use. Utilize this flexibility to maneuver your vacuum hose efficiently around obstacles.
- Compatibility: This cuff is specifically designed for 1.5-inch diameter hoses. Using it with incompatible sizes may result in poor performance or damage.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your ProTeam Cuff, Swivel 1.5.
- Cleaning: Periodically inspect the cuff for any accumulated dust, dirt, or debris, especially within the swivel mechanism. Clean with a damp cloth. Avoid harsh chemicals that could degrade the plastic material.
- Inspection: Check for any signs of wear, cracks, or damage to the plastic. A damaged cuff can lead to air leaks and reduced vacuum efficiency.
- Storage: Store the cuff in a clean, dry place away from direct sunlight and extreme temperatures when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cuff does not fit hose/equipment. | Incorrect hose diameter; incompatible equipment. | Ensure hose is 1.5-inch diameter. Verify compatibility with your vacuum model (e.g., ProTeam RunningVac Canister Vacuum). |
| Loss of suction. | Loose connection; damaged cuff. | Check all connections for tightness. Inspect cuff for cracks or damage and replace if necessary. |
| Cuff is stiff or difficult to swivel. | Dirt or debris in swivel mechanism. | Clean the cuff thoroughly, especially around the swivel joint. |
Specifications
- Brand: ProTeam
- Model Number: PT-100694
- Item Weight: 3.17 ounces
- Package Dimensions: 4.29 x 2.36 x 2.2 inches
- Compatible Device: Canister Vacuum (e.g., ProTeam RunningVac Canister Vacuum)
- Reusability: Disposable (Note: While durable, components may need replacement over time due to wear.)
- Unit Count: 1.0 Count
Warranty and Support
For warranty information or technical support regarding your ProTeam Cuff, Swivel 1.5, please refer to the official ProTeam website or contact their customer service directly. Keep your purchase receipt for warranty claims.
