1. Introduction

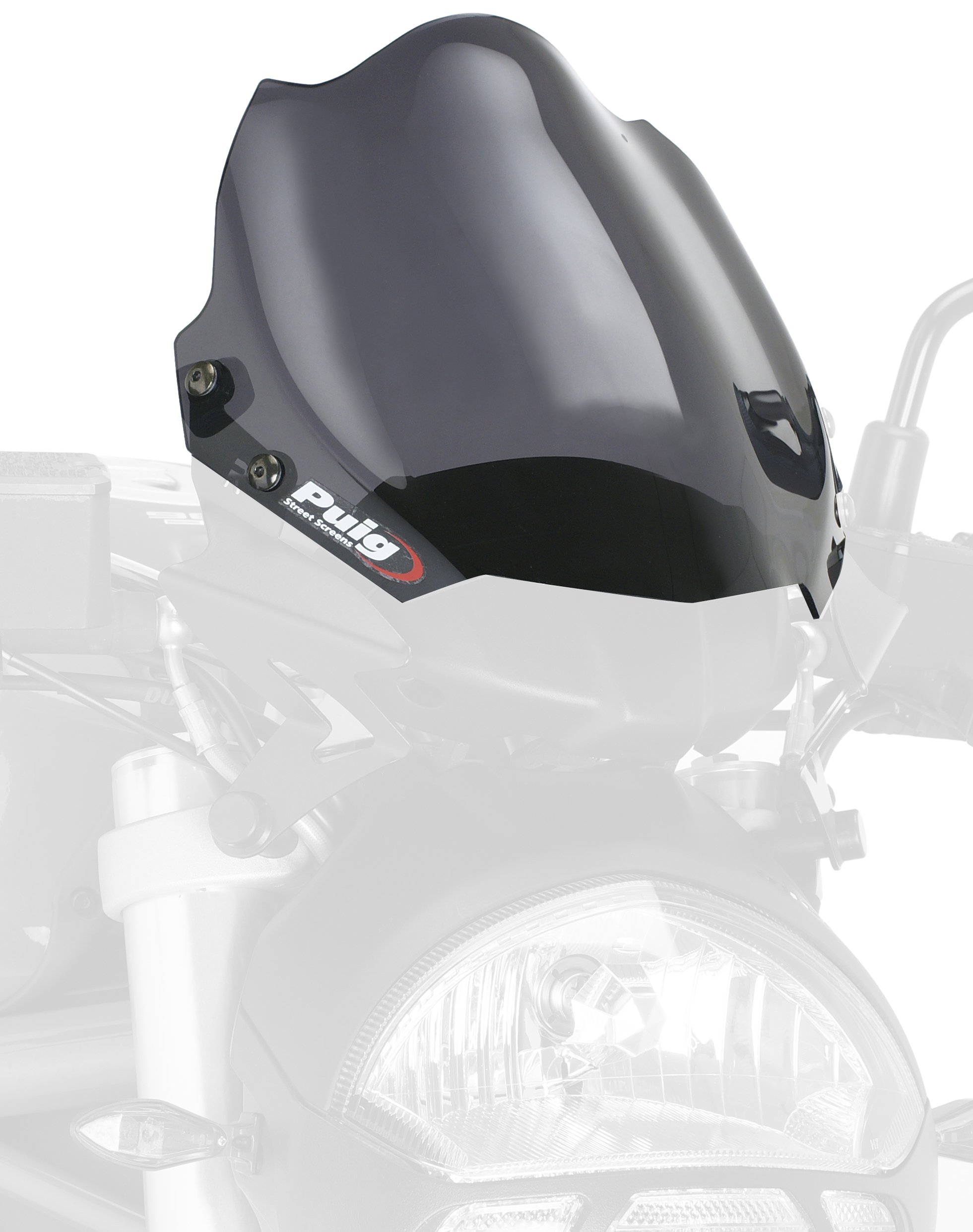

Thank you for choosing the Puig 4672F Dark Smoke Windscreen. This product is designed to enhance your riding experience by providing improved wind deflection and a distinctive aesthetic for your Ducati Monster motorcycle. This manual provides essential information for proper installation, operation, and maintenance of your new windscreen.
The Puig Naked New Generation series windscreens feature an exclusive design tailored for various motorcycle types, ensuring a perfect fit and high-quality finish. These windscreens elevate wind flow by several centimeters, allowing the rider to maintain a more comfortable position on the motorcycle.
2. Compatibility
This Puig 4672F Windscreen is specifically designed for the following Ducati Monster models and years:
- Ducati Monster 696: 2008, 2009, 2010, 2011, 2012, 2013, 2014
- Ducati Monster 796: 2010, 2011, 2012, 2013, 2014
- Ducati Monster 1100: 2009, 2010, 2011, 2012, 2013, 2014
- Ducati Monster 1100 S: 2009, 2010, 2011, 2012, 2013, 2014
3. Product Features
- Material: High-impact 3.00 mm thick methacrylate.
- Color: Dark Smoke.
- Height: 245.00 mm.
- Design: Exclusive Naked New Generation series design for optimal fit and finish.
- Functionality: Improves wind deflection for increased rider comfort.
- Installation: Designed for easy installation without requiring drilling or modifications to the fairing.
- Certification: TÜV approved, tested in accredited TÜV SÜD laboratories.
4. Package Contents
The package includes all necessary components for installation. Please verify that all parts are present before beginning the installation process:
- Puig 4672F Dark Smoke Windscreen
- Mounting hardware kit (brackets, bolts, washers, etc.)
- Installation instructions (this manual)
5. Setup and Installation
Important: Ensure the motorcycle is stable and turned off before starting installation. It is recommended to have basic mechanical knowledge or seek professional assistance for installation.
- Prepare the Motorcycle: Park your Ducati Monster on a level surface using a stand. Ensure the engine is cool.
- Identify Mounting Points: The Puig windscreen typically mounts to existing points on the motorcycle's steering head or headlight assembly. For Ducati Monster models, this often involves replacing the upper fork clamp bolts.
- Remove Existing Components (if any): If your motorcycle has an existing windscreen or covers at the mounting points, carefully remove them.
- Attach Mounting Brackets: Secure the provided mounting brackets to the designated points on your motorcycle. Use the new bolts supplied in the kit. If replacing fork clamp bolts, ensure you use verified class 8 bolts of the correct size and torque them to Ducati's specifications. Do not overtighten.
- Position the Windscreen: Carefully align the Puig windscreen with the mounting brackets.
- Secure the Windscreen: Attach the windscreen to the brackets using the remaining hardware. Ensure it is centered and level before fully tightening all bolts.
- Final Check: Double-check all connections to ensure they are secure. Gently test the windscreen for any looseness.
No drilling or modifications to the motorcycle's fairing are required for installation.
6. Operating the Windscreen
The Puig 4672F Windscreen is a passive component designed to redirect airflow over the rider, reducing wind pressure on the chest and helmet. Once installed, no further operation is required. The windscreen's design aims to provide a more comfortable riding experience, especially at higher speeds, by minimizing direct wind impact.
7. Maintenance
To ensure the longevity and clarity of your Puig windscreen, follow these maintenance guidelines:
- Cleaning: Clean the windscreen regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the methacrylate material.
- Drying: Dry with a clean, soft microfiber cloth to prevent water spots and streaks.
- Inspection: Periodically check all mounting bolts for tightness. Vibrations from riding can sometimes loosen fasteners.
- Storage: When not in use for extended periods, store the motorcycle in a shaded area to prevent prolonged exposure to direct sunlight, which can cause material degradation over time.
8. Troubleshooting
While the Puig windscreen is designed for optimal performance, some minor issues may arise:
- Excessive Wind Noise/Buffeting: Ensure the windscreen is installed correctly and all bolts are tightened. Minor adjustments to riding posture can also sometimes alleviate buffeting.
- Reflected Headlight Glare: Some riders may experience reflected headlight glare, particularly at night. This can sometimes be mitigated by adding a thin, dark, non-reflective strip (e.g., felt) along the bottom edge of the windscreen where it meets the headlight assembly, if a gap is present. Ensure any modification does not obstruct vision or interfere with motorcycle operation.
- Loose Windscreen: If the windscreen feels loose, re-tighten all mounting bolts. Do not overtighten.
9. Specifications
| Attribute | Detail |
|---|---|
| Model Number | 4672F |
| Material | High-impact Methacrylate |
| Thickness | 3.00 mm |
| Color | Dark Smoke |
| Height | 245.00 mm |
| Orientation | Driver Side |
| Certification | TÜV SÜD Approved |
10. Warranty and Support
Puig products are manufactured to high-quality standards and are TÜV approved, ensuring compliance with strict safety and performance regulations. For specific warranty information, please refer to the documentation included with your purchase or visit the official Puig website.
For technical support, installation assistance, or inquiries regarding your Puig 4672F Windscreen, please contact Puig customer service through their official website or authorized dealers. When contacting support, please have your product model number (4672F) and purchase details ready.
Official Puig Website: www.puig.tv
