Introduction
This instruction manual provides essential information for the proper installation and use of the Deka East Penn 05334 Copper Lug, 10 Gauge. Please read this manual thoroughly before installation to ensure safe and effective operation.
Product Overview
The Deka East Penn 05334 is a high-quality copper lug designed for secure electrical connections. It is suitable for 10 gauge wire and provides a reliable termination point for various automotive, marine, and industrial applications. Constructed from copper, it offers excellent conductivity and corrosion resistance.

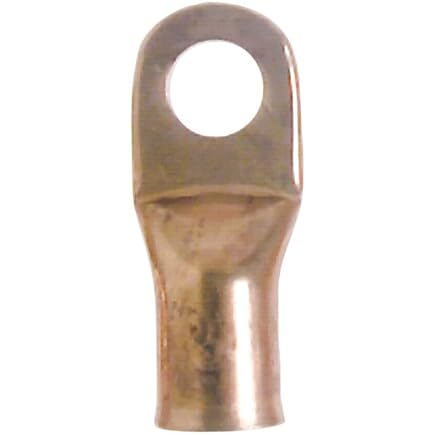

Image 1: The Deka East Penn 05334 Copper Lug. This image displays a single copper lug, featuring a circular eyelet at the top for bolt connection and a cylindrical barrel at the bottom for wire insertion. The lug is made of a reddish-brown copper material, indicating its conductive properties.
Setup and Installation
Proper installation is crucial for safety and performance. Always disconnect power sources before beginning any electrical work.
- Prepare the Wire: Strip approximately 1/2 to 3/4 inch of insulation from the end of the 10 gauge wire, ensuring the copper strands are clean and free of damage.
- Insert Wire: Insert the stripped end of the wire fully into the barrel of the copper lug until it bottoms out. Ensure no stray strands are outside the lug.
- Crimp the Lug: Using an appropriate crimping tool for copper lugs and 10 gauge wire, crimp the barrel of the lug securely onto the wire. Ensure a tight, permanent connection. A proper crimp will deform the lug barrel around the wire without cutting the strands.
- Inspect Connection: Visually inspect the crimp for tightness. Gently tug on the wire to confirm it is securely fastened within the lug.
- Connect to Terminal: Attach the eyelet of the lug to the intended electrical terminal using a bolt, nut, and washer. Ensure the connection is clean, tight, and free of corrosion.
- Verify Polarity: If connecting to a battery or power source, always verify correct polarity before re-connecting power.
Safety Warning: Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when working with electrical components. Consult a qualified electrician if you are unsure about any installation steps.
Operating Instructions
Once properly installed, the copper lug functions as a permanent electrical connector. Its operation is passive, facilitating the flow of electrical current between the wire and the connected terminal. Ensure all connections remain tight and free from environmental contaminants.
Maintenance
Regular inspection of electrical connections is recommended to ensure long-term reliability.
- Visual Inspection: Periodically check the lug and connection point for signs of corrosion, fraying wires, or loose connections.
- Cleaning: If corrosion is present, disconnect power and carefully clean the lug and terminal using a wire brush and an appropriate electrical contact cleaner.
- Tightness Check: Ensure the bolt and nut securing the lug to the terminal remain tight. Do not overtighten, as this can damage the terminal or lug.
Troubleshooting
Most issues related to copper lugs stem from improper installation or environmental factors.
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor electrical conductivity / Intermittent connection | Loose crimp, corroded connection, incorrect wire gauge, loose terminal bolt. | Re-crimp the lug, clean corrosion, ensure correct wire gauge, tighten terminal bolt. |
| Overheating at connection point | Loose connection, undersized wire/lug for current, excessive current draw. | Tighten connection, verify wire and lug are rated for current, reduce load or upgrade wiring. |
| Wire pulls out of lug | Improper crimping, insufficient wire insertion. | Re-crimp with proper tool and technique, ensure full wire insertion. |
Specifications
- Model: 05334
- Brand: Deka (East Penn)
- Material: Copper
- Wire Gauge: 10 GA
- Product Dimensions: 10 x 5 x 4 inches (Shipping/Packaging dimensions, actual lug is smaller)
- ASIN: B005IU1TWK
Warranty and Support
Specific warranty information for the Deka East Penn 05334 Copper Lug is not provided in the product data. For warranty inquiries or technical support, please contact the manufacturer, Deka (East Penn), directly or refer to their official website.
For general product information, you may visit the product page on Amazon.
