1. Introduction and Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your Speco PBM-30 30W Contractor Series PA Amplifier. Designed for professional audio applications, this amplifier offers robust performance and versatile connectivity options.
The PBM-30 is a 30W contractor series PA amplifier featuring two independent channels, an auto-mute function, and manual muting contacts. It is UL Listed, ensuring compliance with safety standards. The amplifier accepts inputs from two distinct sound sources and provides a variety of output choices, including 4, 8, and 16 ohm, as well as 70 and 25 volt line outputs. Additionally, it includes a music-on-hold output with separate level control and a 600 ohm telephone line input with its own level control.
2. Key Features
- 30W Contractor Series PA Amplifier
- UL Listed for safety and reliability
- Two independent input channels
- Automatic mute function for seamless audio management
- Music on hold output with dedicated level control (600 ohm line and one watt 8 ohm)
- 600 ohm telephone line input with adjustable level control
- Manual muting contacts for external control
- Accepts inputs from two distinct sound sources
- Versatile output options: 4, 8, and 16 ohm, plus 70 and 25 volt line outputs
3. Safety Instructions
Please read and follow all safety instructions carefully to prevent injury or damage to the amplifier. Keep this manual for future reference.
- Power Source: Connect the amplifier only to the specified power supply voltage. Ensure the power cord is not damaged or pinched.
- Ventilation: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions, ensuring adequate airflow around the unit.
- Water and Moisture: Do not expose this apparatus to rain or moisture. Do not place objects filled with liquids, such as vases, on the apparatus.
- Heat: Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Setup and Connections
Before connecting any components, ensure the amplifier is powered off and unplugged from the mains supply. Refer to the diagram below for a visual guide to the front panel controls.

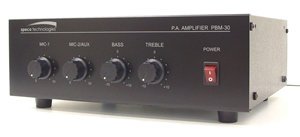

Figure 4.1: Front Panel View of Speco PBM-30 PA Amplifier, showing MIC 1, MIC 2/AUX, BASS, TREBLE, and POWER controls.
4.1 Input Connections
- Microphone/Auxiliary Inputs: The amplifier accepts inputs from two sound sources. Connect your microphones or auxiliary devices (e.g., CD player, media player) to the designated input jacks on the rear panel. Ensure proper cable types (e.g., XLR for microphones, RCA for auxiliary) are used.
- Telephone Line Input: Connect a 600 ohm telephone line to the dedicated input. This input has its own level control for adjusting the volume of telephone audio.
4.2 Output Connections
- Speaker Outputs: Connect your speakers to the appropriate output terminals on the rear panel. The amplifier supports 4, 8, and 16 ohm speaker loads. Ensure the impedance of your speakers matches the selected output terminals.
- Constant Voltage Outputs: For distributed audio systems, connect speakers to the 70 volt or 25 volt line outputs as required. Ensure all speakers in a constant voltage system are compatible with the chosen voltage.
- Music on Hold Output: Connect your music on hold system to this output. It provides both a 600 ohm line output and a one watt 8 ohm output, each with separate level control.
4.3 Power Connection
Once all audio connections are made, connect the amplifier's power cord to a suitable AC power outlet. Ensure the power switch on the front panel is in the OFF position before plugging in.
5. Operating Instructions
This section details the functions of the front panel controls and key features of the PBM-30 amplifier.
5.1 Front Panel Controls
- POWER Switch: This is the main power switch for the amplifier. Press to turn the unit ON or OFF. The indicator light will illuminate when the unit is powered on.
- MIC 1 Control: Adjusts the volume level for the microphone connected to Input 1.
- MIC 2/AUX Control: Adjusts the volume level for the microphone connected to Input 2 or the auxiliary audio source.
- BASS Control: Adjusts the low-frequency (bass) response of the audio output. Turn clockwise to increase bass, counter-clockwise to decrease.
- TREBLE Control: Adjusts the high-frequency (treble) response of the audio output. Turn clockwise to increase treble, counter-clockwise to decrease.
5.2 Auto Mute Function
The auto-mute function automatically mutes background music or other audio when a signal is detected on a priority input (e.g., a microphone input for announcements). This ensures that announcements are clear and audible without interference from other audio sources. The sensitivity and priority of the auto-mute function may be configured via internal jumpers or rear panel controls, if available (refer to detailed wiring diagrams for specific setup).
5.3 Manual Muting Contacts
The amplifier includes manual muting contacts, allowing for external control of the muting function. These contacts can be wired to an external switch or control system to manually mute audio output when activated. Consult the wiring diagram in the full technical manual for proper connection of these contacts.
5.4 Music on Hold (MOH) Output
The dedicated Music on Hold output allows you to feed background music to a telephone system's MOH input. Use the separate level control to adjust the volume of the music being sent to the telephone system.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Speco PBM-30 amplifier.
- Cleaning: Regularly wipe the exterior of the amplifier with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and then dry thoroughly. Do not use harsh chemicals, abrasive cleaners, or solvents.
- Ventilation: Ensure that the ventilation openings are clear of dust and debris. Periodically check that nothing is obstructing the airflow around the unit.
- Storage: If storing the amplifier for an extended period, disconnect it from power, clean it, and store it in a cool, dry place away from direct sunlight and extreme temperatures.
- Inspection: Periodically inspect power cords and audio cables for any signs of damage. Replace damaged cables immediately.
7. Troubleshooting
If you encounter issues with your amplifier, refer to the following common troubleshooting steps. If the problem persists, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power | Power cord unplugged; Power switch off; Blown fuse; Power outlet fault. | Ensure power cord is securely plugged in; Turn power switch ON; Check and replace fuse if necessary (refer to service manual); Test power outlet with another device. |
| No Sound Output | Volume controls too low; Incorrect input selected; Speaker connections loose or incorrect; Mute function active. | Increase MIC/AUX volume controls; Verify input source is active; Check all speaker wiring for secure and correct connections; Check manual muting contacts or auto-mute settings. |
| Distorted Sound | Input signal too high (clipping); Speaker impedance mismatch; Damaged speaker or cable. | Reduce input signal level; Ensure speaker impedance matches amplifier output; Test with different speakers or cables to isolate the issue. |
| Humming/Buzzing Noise | Ground loop; Loose connections; Interference from other electronics. | Ensure all equipment is on the same electrical circuit; Check all audio cable connections; Move amplifier away from other electronic devices. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | PBM-30 |
| Power Output | 30 Watts |
| Channels | Two |
| Speaker Outputs | 4 Ohm, 8 Ohm, 16 Ohm, 25V Line, 70V Line |
| Music on Hold Output | 600 Ohm Line, 1 Watt 8 Ohm (with separate level control) |
| Telephone Line Input | 600 Ohm (with level control) |
| Special Functions | Auto Mute, Manual Muting Contacts |
| Certifications | UL Listed |
| Item Weight | 12 pounds |
| Manufacturer | Speco |
| ASIN | B005H59JKA |
| Date First Available | September 14, 2011 |
9. Warranty and Support
Speco Technologies products are designed for reliability and performance. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Speco Technologies website.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Speco Technologies customer support. Contact details can typically be found on the manufacturer's website or on the product packaging.
Online Resources: For the most up-to-date information, FAQs, and additional resources, please visit the official Speco Technologies website: www.specotech.com
