Rowenta DG8430 Pro Precision Steam Iron Station User Manual

1. Product Overview

The Rowenta DG8430 Pro Precision Steam Iron Station is designed to provide efficient garment care. This 1800-watt steam station combines the functionality of a vertical fabric steamer and a traditional iron, offering powerful steam output and precise ironing capabilities. It features a fast heat-up time and a large water tank for extended use.

Key Features:

Powerful 1800-watt system for enhanced steam generation.
Continuous high-powered steam (4 bar pressure and 90g/min output).
Fast heat-up in approximately 3 minutes.
Microsteam 400-hole stainless-steel soleplate for even steam distribution.
Precision tip for accessing hard-to-reach areas.
Vertical steam function for hanging garments and drapes.
Extra-large, 33-ounce (975 ml) water tank with anytime refill capability.
Integrated Calc-Away filter system to manage mineral deposits.

Rowenta DG8430 Pro Precision Steam Iron Station with iron resting on the base. — Figure 1: The Rowenta DG8430 Pro Precision Steam Iron Station. The iron rests securely on its base, which houses the water tank and steam generator.

2. Setup Instructions

Before first use, ensure all packaging materials are removed from the appliance. Place the steam station on a stable, heat-resistant surface.

Initial Setup Steps:

Fill the Water Tank: Remove the water tank from the base. Fill it with tap water up to the maximum fill line. The 33-ounce capacity allows for extended ironing sessions. Reinsert the water tank securely into the base.
Connect Power: Plug the power cord into a suitable electrical outlet (120V).
Power On: Turn on the steam station. The indicator light will illuminate, signaling that the unit is heating up. The iron will be ready for use in approximately 3 minutes.

Water being poured into the removable water tank of the Rowenta steam station. — Figure 2: Filling the water tank. The large, removable tank can be refilled at any time during operation.

3. Operating the Steam Iron Station

The Rowenta DG8430 offers versatile ironing options, including dry ironing, steam ironing, and vertical steaming.

Operating Modes:

Dry Ironing: For dry ironing, ensure the steam function is off. Adjust the temperature dial on the iron to the appropriate setting for your fabric type.
Steam Ironing: Once the iron is heated, press the steam trigger located on the handle to release a continuous burst of steam. The Microsteam 400 soleplate ensures even steam distribution for effective wrinkle removal. Adjust the steam level as needed for different fabrics.
Vertical Steam: For hanging garments, drapes, or delicate fabrics, hold the iron vertically a few inches from the fabric. Press the steam trigger to release steam. This function helps to refresh and de-wrinkle items without direct contact.

Rowenta iron emitting steam vertically, demonstrating its steaming capability for hanging garments. — Figure 3: Utilizing the vertical steam function. The iron can be used to steam hanging clothes or curtains.

Precision Ironing:

The iron features a precision tip designed to reach difficult areas such as collars, cuffs, and around buttons. This allows for detailed and crisp ironing results.

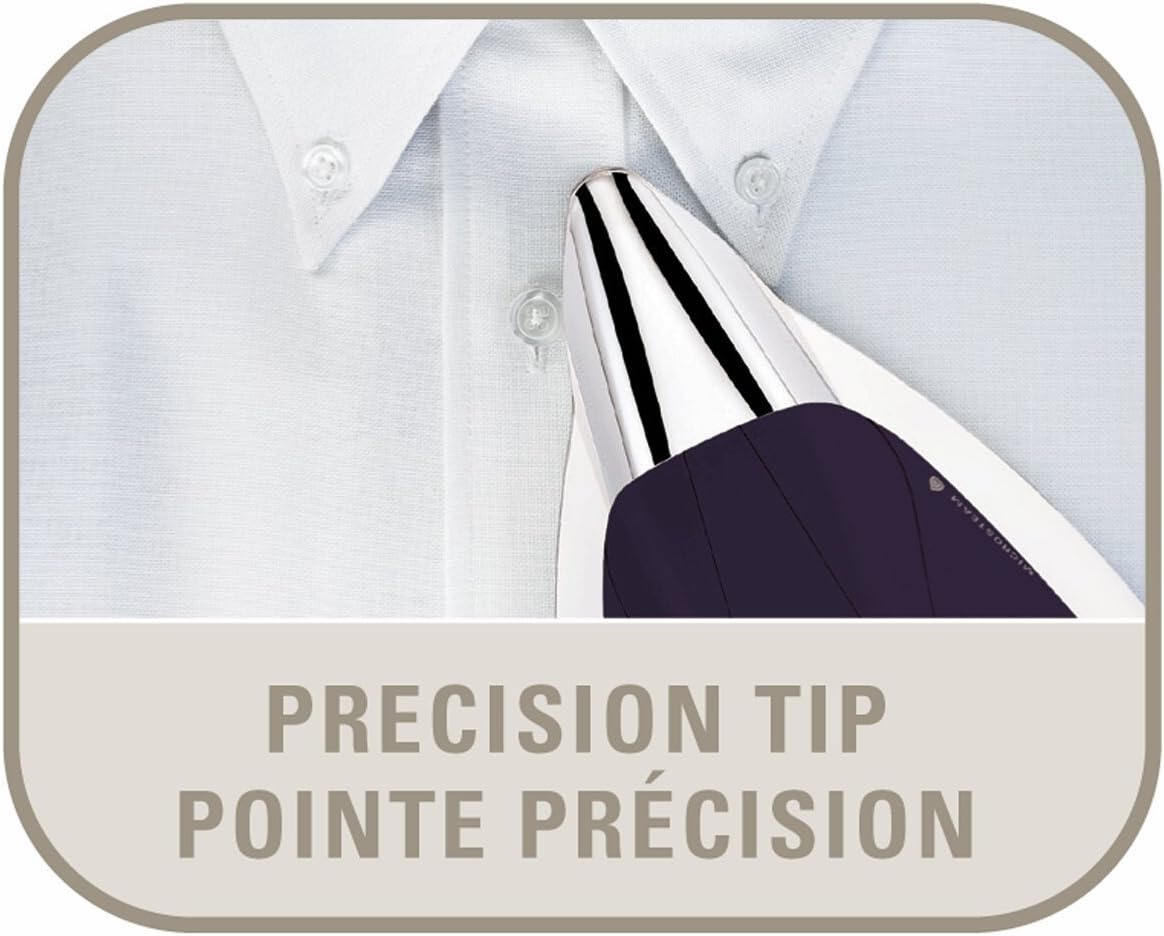

Close-up of the Rowenta iron's precision tip ironing around shirt buttons. — Figure 4: The precision tip in action. Its pointed design allows for easy maneuvering around buttons and seams.

Close-up of the Rowenta iron's stainless steel soleplate with 400 microsteam holes. — Figure 5: The Microsteam 400 stainless steel soleplate. This design ensures optimal steam diffusion and smooth gliding.

4. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your Rowenta DG8430 steam iron station.

Calc-Away System:

The steam station is equipped with a Calc-Away filter system designed to collect mineral deposits from the water. This feature helps prevent scale buildup and maintains steam performance. Refer to the specific instructions in your product packaging for the frequency and method of cleaning the Calc-Away collector. Regular cleaning is essential, especially when using tap water.

Hand removing the calc-away collector from the Rowenta steam station base. — Figure 6: The Calc-Away System. This removable collector helps to prolong the life of the appliance by trapping mineral deposits.

General Cleaning:

Always unplug the appliance and allow it to cool completely before cleaning.
Wipe the soleplate with a damp cloth to remove any residue. Avoid abrasive cleaners.
Clean the exterior of the steam station with a soft, damp cloth.
Empty the water tank after each use to prevent stagnant water and mineral buildup.

5. Troubleshooting

If you encounter issues with your Rowenta DG8430 steam iron station, review the following common troubleshooting tips:

No Steam: Ensure the water tank is filled and properly seated. Check that the appliance is plugged in and powered on, and allow sufficient time for heating.
Water Leaking: Verify that the water tank is not overfilled and is correctly installed. Ensure the iron is fully heated before using the steam function.
Iron Not Heating: Confirm the power cord is securely plugged into a working outlet. Check the temperature setting on the iron.

For persistent issues not resolved by these steps, please refer to the full product manual or contact Rowenta customer support.

6. Technical Specifications

Brand	Rowenta
Model Name	PRO PRECISION
Model Number	1830005398
Wattage	1800 watts
Voltage	120 Volts
Frequency	50 Hz
Water Tank Capacity	33 ounces (approx. 975 ml)
Soleplate Material	Stainless Steel (Microsteam 400-hole)
Item Weight	10.6 Pounds (approx. 4.8 kg)
Color	Mauve

7. Warranty and Support

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Rowenta website. If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact Rowenta customer support directly. Keep your purchase receipt as proof of purchase for warranty claims.
