1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your BLANCO ANTAS-S compact single-lever kitchen faucet. Designed for modern kitchens, this high-pressure faucet features a sleek design and a convenient pull-out spray for extended reach. Please read these instructions carefully before installation and use to ensure proper function and longevity of your product.

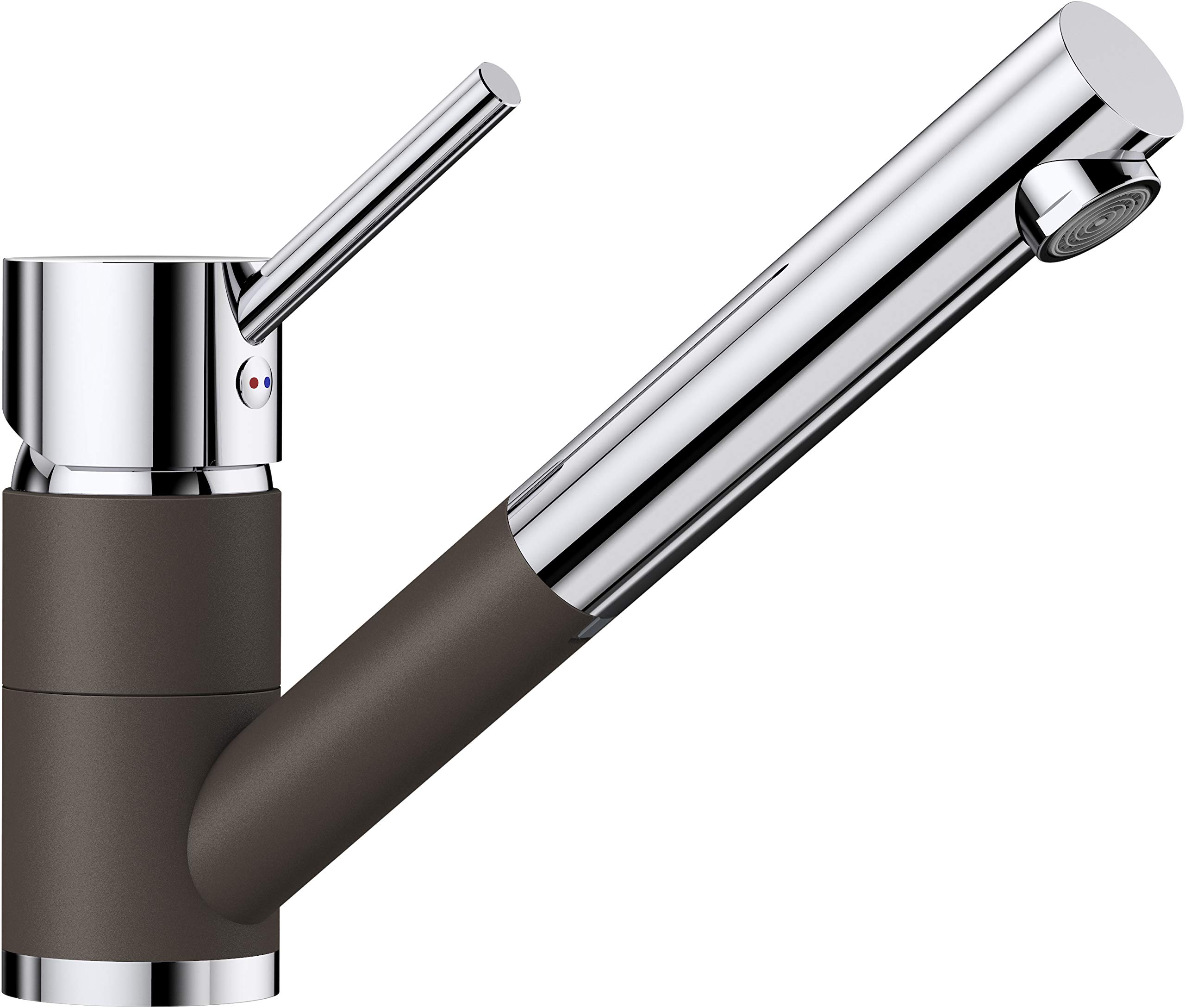

Image 1.1: BLANCO ANTAS-S kitchen faucet with coffee chrome finish.
2. Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Ensure all connections are secure to prevent leaks.
- Do not use excessive force when operating the lever or pull-out spray.
- If you are unsure about any part of the installation, consult a qualified plumber.
- Keep small parts away from children.
3. Package Contents
Verify that all components are present before starting the installation:
- 1 x BLANCO ANTAS-S Kitchen Faucet (Coffee/Chrome)
- 1 x Pull-out spray hose
- Flexible connection hoses (450 mm long, 3/8" nut)
- Stabilization plate
- Mounting hardware
4. Installation Instructions
Follow these steps for a successful installation:
- Prepare the Sink: Ensure the sink or countertop has a faucet hole with a diameter of 35 mm. The maximum countertop thickness should not exceed 40 mm.
- Mount the Faucet: Insert the faucet body into the prepared hole. From underneath the sink, secure the faucet using the provided stabilization plate and mounting hardware. Tighten the nut firmly but do not overtighten.
- Connect Water Hoses: Attach the flexible connection hoses (450 mm, 3/8" nut) to the hot and cold water supply lines. Ensure a watertight seal.
- Connect Pull-out Spray Hose: Connect the pull-out spray hose to the designated outlet on the faucet body. Ensure the hose moves freely and does not kink.
- Test for Leaks: Slowly turn on the main water supply and check all connections for any leaks. Operate the faucet to ensure proper water flow and temperature control.
Image 4.1: Technical drawing with dimensions for installation. Note the 35mm hole requirement and maximum 40mm countertop thickness.
5. Operating Instructions
The BLANCO ANTAS-S faucet is designed for intuitive use:
- Water Flow and Temperature: The single lever on the right controls both water flow and temperature. Lift the lever to increase flow. Move the lever left for hot water and right for cold water.
- Pull-out Spray: Gently pull the spray head from the spout to extend the hose. This allows for greater flexibility in rinsing and cleaning. Push the spray head back into the spout until it clicks securely into place.
- Swivel Spout: The faucet spout can swivel up to 140 degrees, providing ample range for various sink tasks.
Image 5.1: Illustration of the 140-degree swivel function.
6. Maintenance and Care
To maintain the appearance and functionality of your BLANCO ANTAS-S faucet:
- Regular Cleaning: Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive liquid cleaner. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, or cleaners containing acids, ammonia, or bleach, as these can damage the finish and internal components.
- Aerator Maintenance: Periodically unscrew the aerator at the tip of the spout and clean any mineral deposits or debris. This helps maintain optimal water flow.
- Hose Inspection: Regularly inspect the pull-out spray hose for any signs of wear or damage.
7. Troubleshooting
If you encounter any issues with your faucet, refer to the following common problems and solutions:
- Low Water Flow:
- Check if the main water supply is fully open.
- Clean the aerator for mineral buildup.
- Inspect the connection hoses for kinks or obstructions.
- Leaks from Faucet Base:
- Ensure the mounting nut underneath the sink is securely tightened.
- Check the O-rings and gaskets for proper seating and damage.
- Leaks from Hose Connections:
- Tighten the connection hoses to the water supply and faucet body. Do not overtighten.
- Ensure rubber washers are correctly seated in the hose connections.
- Stiff Lever Operation:
- Mineral deposits can affect cartridge movement. If cleaning does not resolve the issue, the ceramic cartridge may need replacement.
If these steps do not resolve the issue, please contact BLANCO customer support.
8. Specifications
| Model Number | 515357 |
| Brand | BLANCO |
| Color | Coffee/Chrome |
| Material | Brass (faucet body), Stainless Steel (handle/lever) |
| Product Dimensions (L x W x H) | 19.2 x 5 x 16.4 cm |
| Weight | 1.87 kg |
| Installation Method | Single-hole |
| Required Faucet Hole Diameter | 35 mm |
| Max. Countertop Thickness | 40 mm |
| Spout Height | 155 mm |
| Spout Depth | 200 mm |
| Swivel Range | 140 degrees |
| Hose Length (Pull-out Spray) | 600 mm |
| Connection Hoses Length | 450 mm |
| Connection Nut Size | 3/8" |
| Flow Rate | 1 Centiliter per second |
| Number of Handles | 1 |
| Handle Location | Right |
9. Warranty and Support
BLANCO products are manufactured to high-quality standards. Spare parts for this product are available for a period of 2 years from the date of purchase.
For further assistance, technical support, or warranty claims, please contact BLANCO customer service. Refer to the official BLANCO website for contact information in your region.
