1. Introduction
Thank you for choosing the BLANCO METRA XL 6 S kitchen sink. This manual provides essential information for the safe installation, operation, and maintenance of your new sink. The METRA XL 6 S features a deep, extra-large bowl, designed for convenience in washing voluminous dishes and soaking. Constructed from high-quality SILGRANIT, a composite material comprising up to 80% quartz sand, this sink offers exceptional durability, scratch resistance, break resistance, and heat resistance, making it ideal for daily kitchen use. Please read these instructions carefully before installation and use.
Image 1: BLANCO METRA XL 6 S sink in use, demonstrating its spacious design.
2. Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Ensure all plumbing connections are secure to prevent leaks.
- Use appropriate personal protective equipment (e.g., gloves, safety glasses) during installation.
- If you are unsure about any part of the installation process, consult a qualified plumber or professional installer.
- Do not use abrasive cleaners or harsh chemicals on the sink surface, as this may damage the SILGRANIT material.
3. Package Contents
Please check that all components are present before beginning installation:
- BLANCO METRA XL 6 S Sink Unit
- Drainage system with space-saving pipe
- 3 ½'' basket strainer valve
- Comfortable rotary automatic waste control
- Installation clips and seals
- Installation template
4. Setup and Installation
The BLANCO METRA XL 6 S sink is designed for top-mount installation in a 60 cm wide base cabinet. The sink features a reversible design, allowing the bowl to be oriented to the left or right as preferred.
4.1. Preparation
- Ensure the countertop material is suitable for sink installation.
- Verify that the base cabinet has a minimum width of 60 cm to accommodate the sink.
- Turn off the main water supply to the kitchen area.
- Clear the installation area of any obstructions.
4.2. Countertop Cut-out
Use the provided installation template to mark the cut-out area on your countertop. Carefully cut the opening using appropriate tools, ensuring clean and precise edges. The typical cut-out dimensions are approximately 980 mm x 480 mm.
Image 2: Countertop cut-out dimensions (approx. 980mm x 480mm).
4.3. Sink Placement and Securing
- Apply a bead of silicone sealant around the edge of the cut-out opening on the countertop to create a watertight seal.
- Carefully lower the sink into the cut-out opening, ensuring it is properly aligned.
- From underneath the countertop, attach the provided installation clips to secure the sink firmly in place. Tighten the clips evenly to ensure a snug fit without overtightening.
4.4. Plumbing Connections
- Install the 3 ½'' basket strainer valve into the sink's drain opening.
- Connect the space-saving drainage system to the basket strainer and then to your household waste pipe. Ensure all connections are sealed properly to prevent leaks.
- Install the comfortable rotary automatic waste control mechanism according to the separate instructions provided with the waste kit.
- If installing a faucet (not included), follow the faucet manufacturer's instructions for mounting and connecting to the water supply lines.
Image 3: Side view of sink installation with plumbing (depth 190mm).

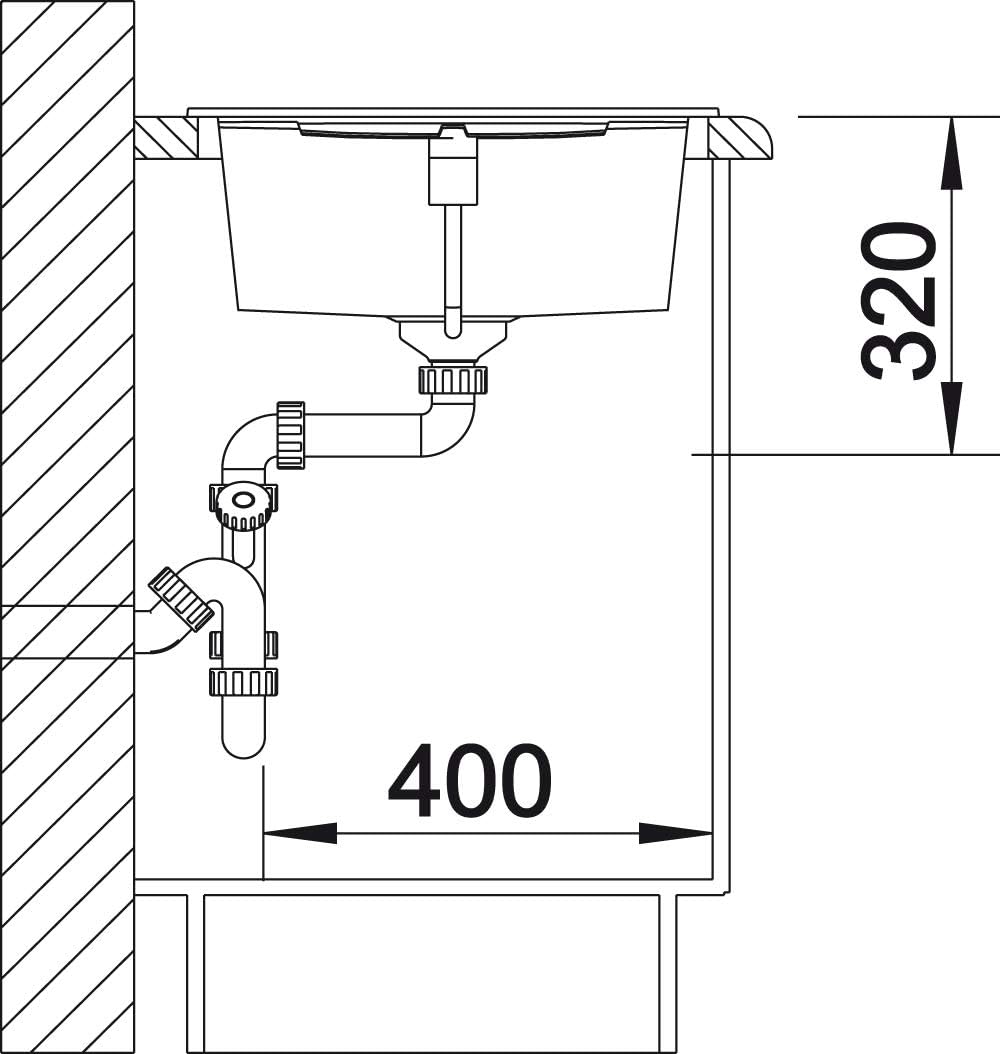

Image 4: Front view of sink installation with plumbing (overall depth 320mm, cabinet width 400mm).
5. Operating Instructions
The BLANCO METRA XL 6 S sink is designed for straightforward use in your kitchen. Its extra-large bowl allows for versatile tasks, from washing large pots and pans to soaking dishes.
- Filling the Sink: Use your kitchen faucet to fill the sink with water to the desired level.
- Draining the Sink: Operate the comfortable rotary automatic waste control to open or close the basket strainer valve, allowing water to drain or be retained in the bowl.
- Using the Basket Strainer: The basket strainer collects food particles and debris, preventing them from entering the drainage system. Regularly empty and clean the basket strainer to maintain optimal drainage.
6. Maintenance and Care for SILGRANIT
SILGRANIT is a highly durable and easy-to-maintain material. Regular cleaning will preserve its appearance and functionality.
6.1. Daily Cleaning
- Wipe the sink daily with a soft cloth or sponge and a mild dish soap solution.
- Rinse thoroughly with clean water and dry the surface to prevent water spots, especially in hard water areas.
6.2. Removing Stains
- For stubborn stains, use a non-abrasive cleaner specifically designed for granite or composite sinks.
- Apply the cleaner, let it sit for a few minutes (as per product instructions), then scrub gently with a soft brush or sponge.
- Rinse thoroughly and dry. Avoid using steel wool, abrasive pads, or harsh chemical cleaners (e.g., drain cleaners, oven cleaners) as these can damage the SILGRANIT surface.
6.3. Preventing Damage
- While SILGRANIT is heat-resistant, avoid placing extremely hot pots or pans directly onto the sink surface without protection.
- Avoid dropping heavy or sharp objects into the sink, which could cause chipping or cracking.
- Rinse the sink after contact with highly acidic or alkaline substances to prevent potential discoloration.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow drainage | Clogged basket strainer or drain pipe. | Clean the basket strainer. If the issue persists, check the drain pipe for blockages and clear as necessary. |
| Water spots or mineral deposits | Hard water residue. | Regularly dry the sink after use. For existing spots, use a solution of white vinegar and water (1:1 ratio), let it sit briefly, then rinse and dry. |
| Discoloration or faint stains | Accumulation of food residues or contact with strong coloring agents. | Clean with a specialized SILGRANIT cleaner. For persistent stains, a paste of baking soda and water can be gently applied and scrubbed. Rinse thoroughly. |
| Leakage around the sink edge | Improperly sealed sink or loose clips. | Check and tighten installation clips. Reapply silicone sealant if necessary. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 515280 |
| Brand | BLANCO |
| Material | SILGRANIT (80% Quartz Sand) |
| Color | White Silgranit |
| Overall Dimensions (L x W x H) | 100 x 50 x 32 cm (39.4 x 19.7 x 12.6 inches) |
| Bowl Type | Extra-Large Single Bowl |
| Minimum Base Cabinet Width | 60 cm (23.6 inches) |
| Installation Type | Top-Mount (Reversible) |
| Drain Type | Pop-Up (with 3 ½'' Basket Strainer) |
| Number of Holes | 2 (for faucet and waste control) |
| Item Weight | 9.53 kg (21 lbs) |
Image 5: Overall sink dimensions (1000mm x 500mm).
9. Warranty Information
BLANCO provides a 2-year availability of spare parts for the METRA XL 6 S kitchen sink. For specific warranty terms and conditions, please refer to the official BLANCO warranty documentation included with your purchase or visit the official BLANCO website.
10. Customer Support
Should you have any questions regarding the installation, operation, or maintenance of your BLANCO METRA XL 6 S kitchen sink, please contact BLANCO customer service. You can find contact information on the official BLANCO website or in the documentation provided with your product.
