1. Introduction
Thank you for purchasing the Orbegozo SP 5010 Ceramic Wall Heater. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:
- Read all instructions before using this heater.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and keep them away from the sides and rear.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
- Always unplug the heater when not in use.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
- Do not use outdoors.
- This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- To disconnect heater, turn controls to off, then remove plug from outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
- Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
- Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
3. Product Overview
The Orbegozo SP 5010 is a ceramic wall-mounted heater designed for efficient heating. It features two heat settings, an adjustable thermostat, and a convenient remote control for ease of use. A built-in timer allows for scheduled operation.

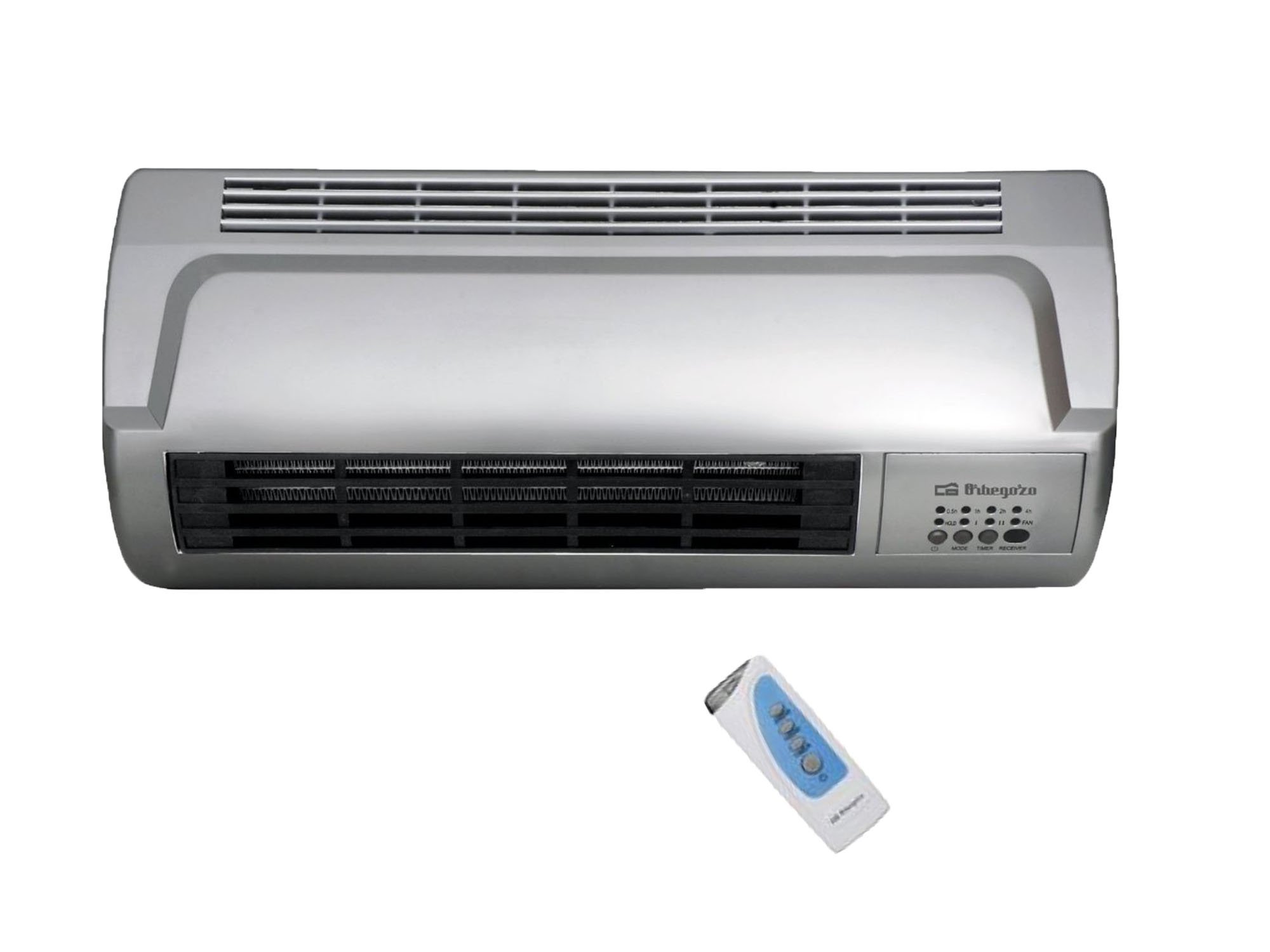

Figure 1: Front view of the Orbegozo SP 5010 Ceramic Wall Heater, showing the air outlet and control panel.
Key Features:
- Two Heat Levels: Select between 1000 W and 2000 W for optimal heating.
- Adjustable Thermostat: Maintain your desired room temperature.
- Remote Control: Conveniently operate the heater from a distance.
- 8-Hour Timer: Program the heater to turn off automatically.
- Wall-Mounted Design: Space-saving and efficient placement.
4. Setup and Installation
The Orbegozo SP 5010 is designed for wall mounting. Ensure the installation location is suitable and follows all safety guidelines.
4.1. Choosing a Location:
- Select a wall location that is clear of obstructions and at least 1 meter (3 feet) away from combustible materials.
- Ensure the wall can support the weight of the heater (approximately 2.12 kg).
- Avoid locations directly above or below electrical outlets.
4.2. Mounting the Heater:
- Carefully unpack the heater and check for any damage.
- Using the provided mounting template (if included) or by measuring the mounting holes on the back of the unit, mark the drilling points on the wall.
- Drill holes at the marked points and insert appropriate wall anchors (if necessary for your wall type).
- Secure the mounting bracket (if separate) or the heater itself to the wall using screws. Ensure it is firmly attached and level.
4.3. Power Connection:
- Once securely mounted, plug the heater's power cord directly into a suitable wall outlet. Do not use extension cords or power strips.
- Ensure the outlet voltage matches the heater's requirements (220-240V, 50Hz).
5. Operating Instructions
The Orbegozo SP 5010 can be operated using the control panel on the unit or the remote control.
5.1. Control Panel:
The control panel typically includes buttons for Power, Mode (heat settings), Temperature Adjustment, and Timer.
5.2. Remote Control:
The remote control provides the same functionalities as the control panel for convenient operation.
5.3. Basic Operation:
- Power On/Off: Press the POWER button to turn the heater on or off.
- Select Heat Level: Press the MODE button to cycle through the heat settings:
- Low Heat (1000 W)
- High Heat (2000 W)
- Fan Only (Cool Air)
- Adjust Thermostat: Use the TEMP + and TEMP - buttons to set your desired temperature. The heater will automatically turn on or off to maintain this temperature.
- Set Timer: Press the TIMER button repeatedly to set the desired operating duration, up to 8 hours. Each press typically increases the timer by 1 hour. The heater will automatically shut off after the set time.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and efficient operation of your heater.
6.1. Before Cleaning:
- Always turn off the heater and unplug it from the power outlet.
- Allow the heater to cool down completely before attempting any cleaning.
6.2. Cleaning the Exterior:
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.
- Ensure no water enters the interior of the heater.
6.3. Cleaning Air Vents:
- Use a vacuum cleaner with a brush attachment to gently remove dust and lint from the air intake and exhaust vents.
- Do not attempt to disassemble the heater for cleaning.
6.4. Storage:
- If storing the heater for an extended period, clean it thoroughly and store it in its original packaging or a dust-free, dry location.
- Do not wrap the power cord tightly around the heater.
7. Troubleshooting
If you experience issues with your Orbegozo SP 5010 heater, please consult the following table before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power supply. Power button not pressed. Overheat protection activated. | Ensure the heater is plugged into a working outlet. Press the POWER button. Unplug the heater, let it cool for 30 minutes, then plug it back in. Clear any obstructions from air vents. |
| No heat output. | Fan-only mode selected. Thermostat set too low. | Select a heat mode (1000W or 2000W). Increase the thermostat setting. |
| Remote control not working. | Batteries are dead or incorrectly inserted. Obstruction between remote and heater. | Replace batteries, ensuring correct polarity. Remove any objects blocking the signal path. |
| Unusual noise during operation. | Loose internal component. Debris in fan. | Turn off and unplug the heater. If noise persists after cooling, contact customer support. Do not attempt to open the unit. |
8. Specifications
Technical specifications for the Orbegozo SP 5010 Ceramic Wall Heater:
| Model Number | SP 5010 |
| Brand | Orbegozo |
| Power Output | 1000 W / 2000 W |
| Control Method | Remote Control, Manual Buttons |
| Timer | Up to 8 hours |
| Dimensions (L x W x H) | 45.01 x 10.01 x 18.01 cm (approximately) |
| Weight | 2.12 kg |
| Color | Grey |
| Power Source | Electric with cord |
9. Warranty and Support
Orbegozo products are manufactured to high-quality standards. For detailed warranty information, please refer to the warranty card included with your product or visit the official Orbegozo website. If you require technical assistance or have questions not covered in this manual, please contact Orbegozo customer support.
Please have your model number (SP 5010) and purchase date available when contacting support.
