1. Introduction
This manual provides essential information for the safe and efficient use of your Orbegozo TH 8000 Electric Towel Warmer. Please read these instructions carefully before installation and operation, and retain them for future reference. The Orbegozo TH 8000 is designed to warm and dry towels, enhancing comfort in your bathroom.
Image 1.1: Front view of the Orbegozo TH 8000 Electric Towel Warmer.
2. Safety Instructions
Always observe the following safety precautions to prevent electric shock, injury, or damage to the appliance:
- Ensure the voltage indicated on the appliance matches your local mains voltage before connecting.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Keep the appliance away from water sources, such as bathtubs, showers, or sinks.
- Do not operate the appliance with a damaged cord or plug, or after it malfunctions or has been damaged in any manner.
- This appliance is for domestic use only. Do not use it outdoors.
- Unplug the appliance from the outlet when not in use and before cleaning.
- Do not allow the power cord to hang over the edge of a table or counter, or touch hot surfaces.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Package Contents
Verify that all components are present and in good condition:
- 1 x Orbegozo TH 8000 Electric Towel Warmer
- Mounting accessories (screws, wall plugs, brackets)
- Instruction Manual

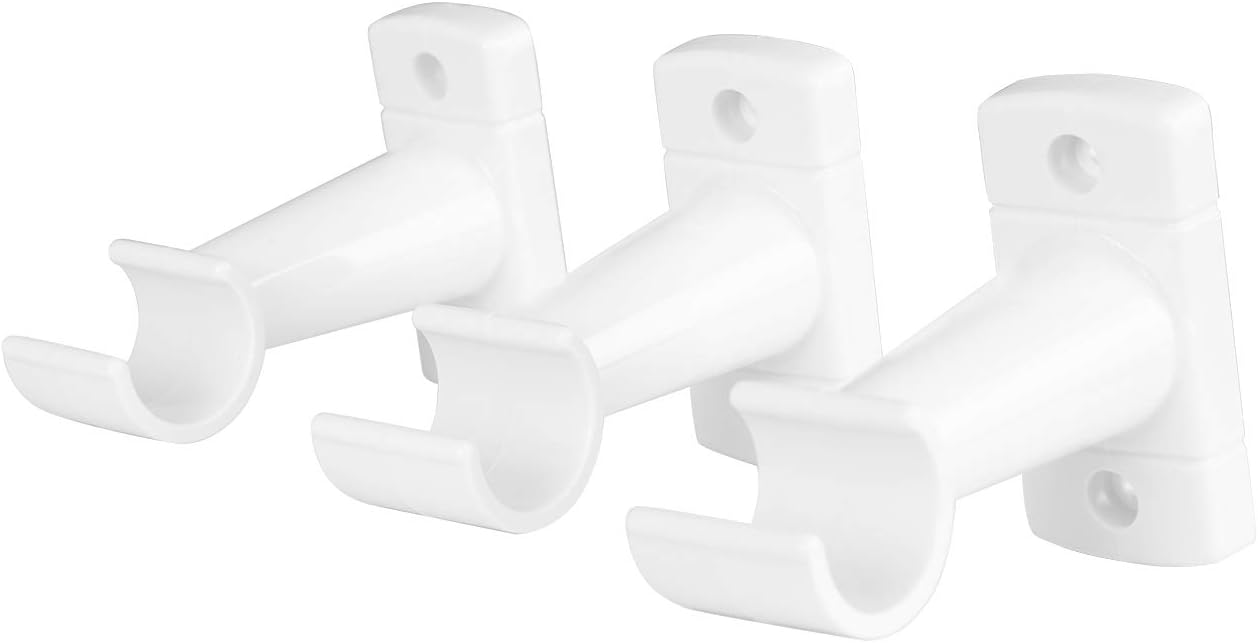

Image 3.1: Included mounting brackets.
4. Setup and Installation
The Orbegozo TH 8000 is designed for easy wall-mounted installation. Follow these steps for secure vertical placement in your bathroom:
- Choose Location: Select a suitable wall location in your bathroom, ensuring it is away from direct water spray and within reach of a power outlet. Consider the dimensions of the towel warmer (600mm H x 545mm W x 25mm D) and allow adequate space around it.
- Mark Drilling Points: Use the provided template (if included) or measure carefully to mark the four drilling points for the mounting brackets on the wall. Ensure the points are level and correctly spaced for vertical installation.
- Drill Holes: Using an appropriate drill bit for your wall type, drill holes at the marked points.
- Insert Wall Plugs: Insert the provided wall plugs into the drilled holes.
- Attach Brackets: Secure the mounting brackets to the wall using the screws. Ensure they are firmly attached.
- Mount Towel Warmer: Carefully align the towel warmer with the mounted brackets and secure it in place. Ensure it is stable and does not wobble.
- Connect to Power: Once securely mounted, plug the towel warmer into a grounded electrical outlet.
It is recommended to consult a qualified electrician if you are unsure about any part of the electrical installation.
5. Operating Instructions
The Orbegozo TH 8000 Electric Towel Warmer is simple to operate:
- Power On: Locate the power switch, typically found on the lower right side of the unit. Press the switch to the 'ON' (I) position.
- Indicator Light: A red indicator light will illuminate, signaling that the towel warmer is active and heating.
- Place Towels: Hang your towels over the bars of the warmer. For optimal drying and warming, ensure towels are spread out as much as possible to allow heat to circulate.
- Power Off: To turn off the towel warmer, press the power switch to the 'OFF' (O) position. The indicator light will turn off.
Image 5.1: Power switch and indicator light.
Image 5.2: Towel warmer in use with towels.
6. Maintenance and Cleaning
Regular cleaning ensures the longevity and optimal performance of your towel warmer:
- Before Cleaning: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Do Not Immerse: Never immerse the towel warmer in water or any other liquid.
- Storage: If storing the appliance for an extended period, ensure it is clean and dry. Store it in a cool, dry place.
7. Troubleshooting
If you encounter issues with your Orbegozo TH 8000, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Towel warmer does not heat. | Not plugged in; power switch is off; power outage; faulty outlet. | Ensure the plug is securely in the outlet. Turn the power switch to 'ON'. Check your circuit breaker. Test the outlet with another appliance. |
| Indicator light is off, but unit is plugged in. | Power switch is off; internal fault. | Turn the power switch to 'ON'. If the problem persists, contact customer support. |
| Towels are not drying effectively. | Towels are too thick or bunched up; ambient room temperature is too low. | Spread towels out evenly over the bars. Ensure the bathroom is adequately ventilated but not excessively cold. |
If these solutions do not resolve the issue, do not attempt to repair the appliance yourself. Contact Orbegozo customer support for assistance.
8. Specifications
- Model: TH 8000
- Brand: Orbegozo
- Power: 95 W
- Color: White
- Material: Plastic
- Product Dimensions (L x W x H): 25mm x 545mm x 600mm
- Item Weight: 2.54 kg
- Finish Type: Painted
- Installation Type: Wall-mounted
- GTIN: 08436011055692
9. Warranty and Support
The Orbegozo TH 8000 Electric Towel Warmer comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
For warranty claims, technical support, or any questions regarding your product, please contact Orbegozo customer service. Keep your proof of purchase for warranty validation.
Do not attempt to repair the appliance yourself, as this will void the warranty.
