LED Lenser D14 Frogman Black - Diving Torch User Manual

Introduction

Thank you for choosing the Ledlenser D14 Frogman Black Diving Torch. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your diving torch. Please read this manual thoroughly before using the product and retain it for future reference.

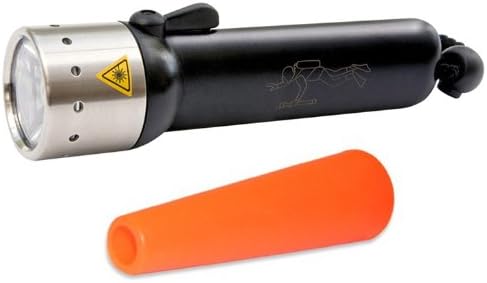

Image: The Ledlenser D14 Frogman Black Diving Torch, a sleek black flashlight with a silver head, shown alongside its accompanying orange signal cone.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the product:

• Do not look directly into the LED light beam.
• Ensure the battery compartment is securely sealed before submerging the torch in water.
• Use only the specified battery type (AA x4).
• Keep out of reach of children.
• Avoid extreme temperatures and direct sunlight.
• Do not attempt to disassemble or modify the torch.

Setup

1. Battery Installation

1. Unscrew the tail cap of the torch by turning it counter-clockwise.
2. Insert four (4) AA batteries, ensuring correct polarity (+/-) as indicated inside the battery compartment.
3. Carefully screw the tail cap back on, turning clockwise until it is securely tightened. Ensure the O-ring is properly seated to maintain water resistance.

2. Attaching the Signal Cone (Optional)

• Slide the provided red signal cone over the head of the torch until it fits snugly. This accessory is useful for signaling purposes.

Operating Instructions

Turning On/Off

• The D14 Frogman features a barrel switch. To turn the torch ON, rotate the barrel switch clockwise.
• To turn the torch OFF, rotate the barrel switch counter-clockwise.

Diving Use

• Before each dive, inspect the O-rings and ensure the tail cap is fully tightened to maintain the IPX8 water resistance rating.
• The torch is designed for underwater use and provides a powerful beam for illumination.

Surface Use

• The torch can also be used as a standard flashlight on the surface.
• The fixed focus beam provides consistent illumination.

Maintenance

Cleaning

• After each dive, rinse the torch thoroughly with fresh water to remove salt, sand, or other debris.
• Wipe the torch dry with a soft cloth.

Battery Replacement

• Replace all four AA batteries simultaneously when the light output diminishes.
• Always use new, high-quality batteries of the same type.
• Dispose of used batteries according to local regulations.

O-ring Care

• Periodically inspect the O-rings for cracks, tears, or signs of wear.
• Apply a thin layer of silicone grease to the O-rings to maintain their flexibility and sealing properties.
• Replace damaged O-rings immediately to prevent water ingress.

Storage

• If storing the torch for an extended period, remove the batteries to prevent leakage and corrosion.
• Store in a cool, dry place away from direct sunlight.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the official Ledlenser website or contact your local distributor. Keep your proof of purchase for warranty claims.
