Introduction
The Standard Motor Products PC14T Crankshaft Position Sensor is a critical component in your vehicle's engine management system. It monitors the rotational speed and position of the crankshaft, providing essential data to the engine control unit (ECU) for precise fuel injection and ignition timing. This manual provides important information regarding the installation, operation, and maintenance of your PC14T sensor.
Safety Information
Always prioritize safety when working on your vehicle. Failure to follow safety precautions can result in serious injury or damage to the vehicle.
- Disconnect the vehicle's battery before beginning any electrical work.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands if working underneath it.
- Allow the engine to cool completely before handling engine components.
- Refer to your vehicle's service manual for specific procedures and torque specifications.
Package Contents
Verify that all components are present before proceeding with installation.
- 1 x Standard Motor Products PC14T Crankshaft Position Sensor

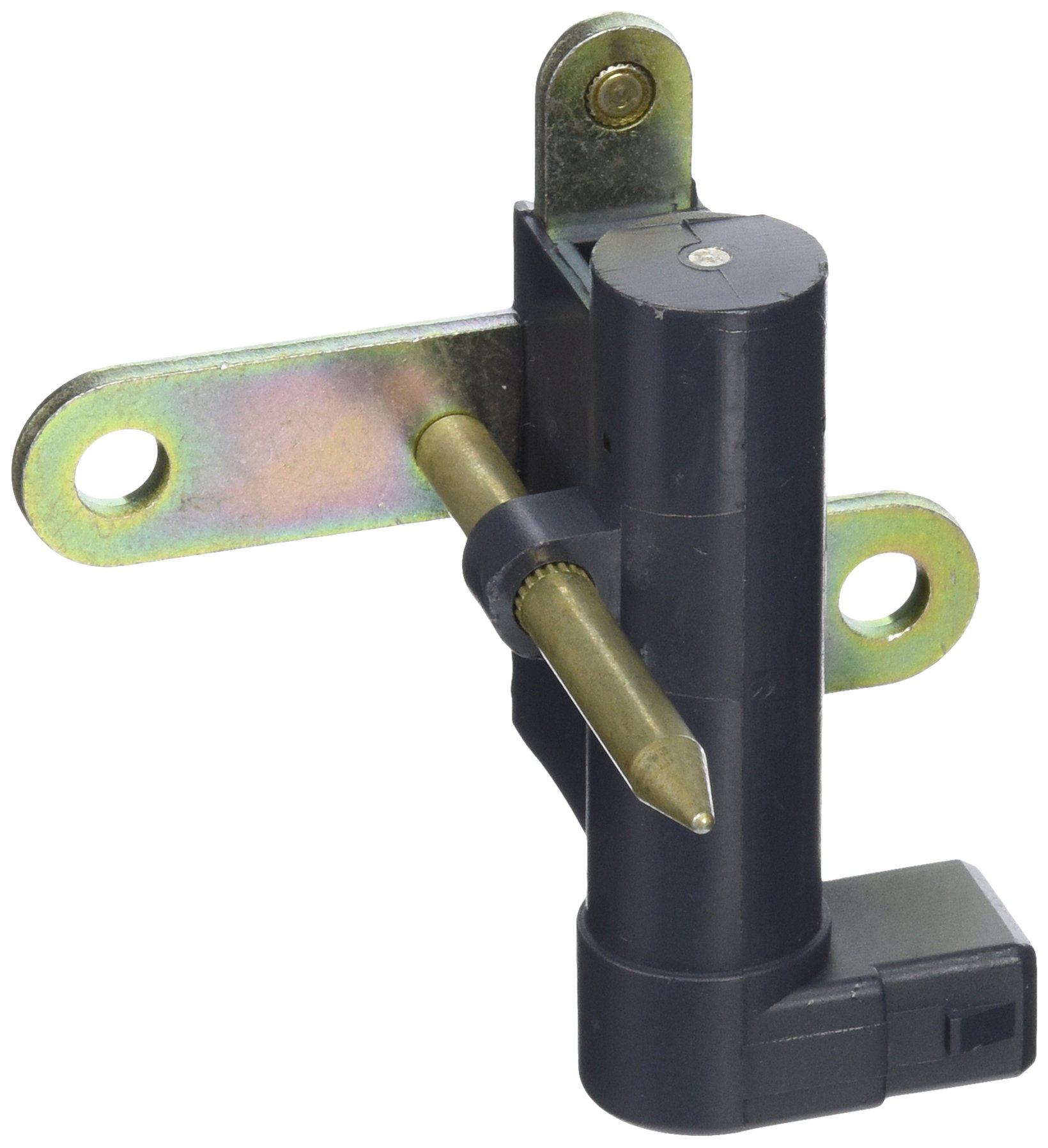

Image: The Standard Motor Products PC14T Crankshaft Position Sensor, typically a black plastic or metal component with an electrical connector and mounting flange.
Setup and Installation
Installation of a crankshaft position sensor can vary significantly depending on the vehicle make and model. It is highly recommended that installation be performed by a qualified automotive technician. The following steps are general guidelines only.
- Locate the Sensor: Consult your vehicle's service manual to identify the exact location of the crankshaft position sensor. It is typically found near the crankshaft pulley or flywheel.
- Disconnect Battery: Disconnect the negative terminal of the vehicle's battery.
- Access the Sensor: Depending on its location, you may need to remove other components (e.g., belts, covers, or other sensors) to gain access.
- Disconnect Electrical Connector: Carefully disconnect the electrical connector from the old sensor.
- Remove Old Sensor: Unbolt the old crankshaft position sensor from its mounting point. Note its orientation.
- Install New Sensor: Insert the new Standard Motor Products PC14T sensor into the mounting hole, ensuring proper alignment. Secure it with the retaining bolt(s) to the manufacturer's specified torque.
- Reconnect Electrical Connector: Firmly attach the electrical connector to the new sensor.
- Reassemble Components: Reinstall any components that were removed for access.
- Reconnect Battery: Reconnect the negative terminal of the vehicle's battery.
- Test Operation: Start the engine and check for proper operation and any diagnostic trouble codes (DTCs). Clear any stored codes if necessary.
Operating Principles
The PC14T Crankshaft Position Sensor operates using magnetic induction or the Hall effect. As the crankshaft rotates, a reluctor wheel (or tone ring) with teeth passes by the sensor. The sensor detects these passing teeth, generating a series of electrical pulses. The frequency and pattern of these pulses allow the ECU to determine the exact rotational speed (RPM) and angular position of the crankshaft. This information is crucial for synchronizing ignition timing and fuel injection, ensuring efficient engine operation.
Maintenance
The Standard Motor Products PC14T Crankshaft Position Sensor is designed to be a maintenance-free component. Regular inspection during routine vehicle service is recommended. Check the sensor's electrical connector for corrosion or damage and ensure it is securely seated. No lubrication or cleaning of the sensor itself is typically required.
Troubleshooting
A faulty crankshaft position sensor can cause various engine performance issues. Common symptoms include:
- Engine cranking but not starting.
- Intermittent stalling, especially after the engine warms up.
- Rough idling or misfires.
- Reduced engine power or acceleration.
- Check Engine Light (CEL) illuminated, often with specific diagnostic trouble codes (DTCs) related to the crankshaft position sensor circuit.
If you experience these symptoms, it is advisable to have your vehicle diagnosed by a professional technician using appropriate diagnostic tools.
Specifications
| Brand | Standard Motor Products |
| Model Number | PC14T |
| Item Dimensions (L x W x H) | 3 x 3 x 3.6 inches |
| Material | Metal |
| Item Weight | 0.01 Ounces |
| Mounting Type | Flange Mount |
| Output Type | Electrical Signal |
| UPC | 025623455372 |
| Country of Origin | United States |
Warranty Information
Standard Motor Products provides a limited warranty on its products. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Standard Motor Products website. Keep your proof of purchase for warranty claims.
Support
For technical assistance, installation questions, or troubleshooting support, please contact Standard Motor Products customer service. Contact information can typically be found on their official website or product packaging. When contacting support, have your product model number (PC14T) and purchase details readily available.
