1. Introduction and Overview
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Raypak Digital Electronic Ignition Natural Gas Pool Heater, Model P-R406A-EN-C. This heater is designed for residential swimming pools and spas, featuring electronic ignition, a digital thermostat, and polymer headers. It is engineered to meet federal and state fuel efficiency standards, offer high flow rates, and provide condensation protection, all within a wind-resistant design for durability.
Key features include:
- Built to withstand various weather conditions, ensuring efficiency and versatility.
- Intermittent spark ignition pilot safety controls, activating the pilot only when heat is required.
- Constructed with advanced materials that prevent residual heat retention after shutdown, allowing installation without metal heat sinks.
- Equipped with a ProTek Shield module designed to protect the heat exchanger and extend the heater's operational life.
Figure 1: Front view of the Raypak Digital Electronic Ignition Natural Gas Pool Heater.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Gas Safety: This appliance uses natural gas. Ensure all gas connections are properly sealed and regularly checked for leaks. Gas leaks can cause explosions or carbon monoxide poisoning.
- Electrical Safety: All electrical wiring must be performed by a qualified electrician in accordance with local codes and regulations. Ensure the unit is properly grounded.
- Water Safety: Ensure proper water flow through the heater at all times during operation to prevent overheating and damage.
- High Temperatures: Surfaces of the heater can become hot during operation. Avoid contact with the heater during and immediately after use.
- Ventilation: Ensure adequate ventilation around the heater as specified in the installation instructions to prevent the accumulation of combustion byproducts.
- Chemicals: Maintain proper pool water chemistry. Incorrect pH levels can cause damage to the heater's components.
3. Setup and Installation
Installation of this pool heater should be performed by a qualified professional to ensure safety, proper function, and warranty validity. The unit weighs approximately 249 pounds, requiring careful handling and placement.
3.1 Site Selection
Choose a location that provides adequate ventilation, protection from severe weather, and is accessible for maintenance. Refer to local codes for specific clearance requirements from combustible materials and other structures.
3.2 Plumbing Connections
Connect the pool's water inflow and outflow pipes to the heater's designated ports. Ensure all connections are watertight. The heater is designed for high flow rates. Proper plumbing ensures efficient heat transfer and prevents damage.
3.3 Gas Connections
A qualified gas technician must connect the natural gas supply line to the heater. Verify that the gas pressure is within the specified range for the heater model. All connections must be tested for leaks using an approved method.
3.4 Electrical Connections
Electrical wiring must be completed by a licensed electrician. Connect the heater to the appropriate power supply as per the wiring diagram provided with the unit and local electrical codes. Ensure proper grounding.

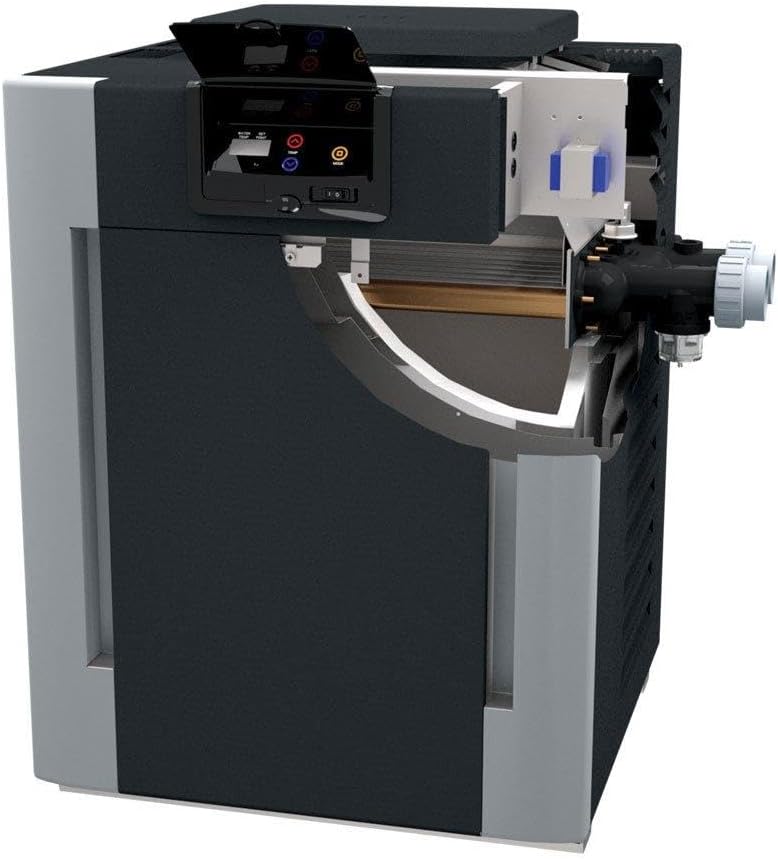

Figure 2: Cutaway view illustrating internal components and connections of the heater.
Figure 3: Dimensional diagram for installation planning, showing various measurements for the heater and its components.
4. Operating Instructions
The Raypak Digital Pool Heater features a user-friendly digital control panel for setting and monitoring pool temperature.
4.1 Initial Startup
- Ensure all gas, water, and electrical connections are secure and verified.
- Turn on the water circulation pump to ensure proper water flow through the heater.
- Open the gas supply valve to the heater.
- Turn on the electrical power to the heater.
4.2 Setting Desired Temperature
- Locate the digital control panel on the front of the heater.
- Use the UP/DOWN arrows to adjust the desired water temperature. The display will show the set temperature.
- The heater will automatically ignite when the pool water temperature falls below the set temperature and water flow is detected. The intermittent spark ignition system will activate the pilot only when heat is needed.
4.3 Shutting Down the Heater
- To turn off the heater, set the desired temperature below the current pool temperature or use the power button on the control panel if available.
- For extended periods of non-use or maintenance, turn off the gas supply valve and the electrical power to the unit.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your Raypak pool heater.
5.1 Water Chemistry
Maintaining proper pool water chemistry is crucial. Specifically, keep the pH level within the manufacturer's recommended range (typically 7.4-7.6). Low pH can cause corrosion and damage to the heater's internal components, including the heat exchanger and temperature sensors.
5.2 Heat Exchanger Protection
The integrated ProTek Shield module helps protect the heat exchanger. However, periodic inspection by a qualified technician is recommended to ensure its continued effectiveness and to clean any potential buildup.
5.3 General Cleaning and Inspection
- Keep the area around the heater clear of debris and obstructions to ensure proper airflow.
- Periodically inspect the exhaust vent for any blockages.
- Check for any visible signs of leaks from gas or water connections.
- An annual professional inspection and tune-up are highly recommended to ensure optimal performance and safety.
6. Troubleshooting
This section provides guidance for common issues. For complex problems, contact a qualified service technician.
6.1 Heater Not Igniting
- Check Gas Supply: Ensure the main gas valve to the heater is open.
- Check Electrical Power: Verify the heater is receiving power and circuit breakers are not tripped.
- Check Water Flow: Ensure the pool pump is running and there is adequate water flow through the heater. Low flow can prevent ignition.
- Thermostat Setting: Confirm the desired temperature is set higher than the current pool temperature.
6.2 Incorrect Temperature Readings
If the heater displays an incorrect water temperature (e.g., 102°F when the actual temperature is much lower), this may indicate a fault with the temperature sensor or the main control board. While the temperature sensor is often replaceable, professional diagnosis is recommended.
6.3 Heater Cycles On/Off Frequently
- Water Flow: Insufficient water flow can cause the heater to cycle rapidly. Check for clogged filters or a malfunctioning pump.
- Thermostat Location: Ensure the pool thermostat is correctly placed and not affected by external factors.
7. Specifications
Detailed specifications for the Raypak 406,000 BTU Digital Electronic Ignition Natural Gas Pool Heater (Model P-R406A-EN-C).
- Product Dimensions: 44 x 34 x 31 inches
- Item Weight: 249 pounds
- Manufacturer: RAYPAK
- ASIN: B0051HOK94
- Item Model Number: P-R406A-EN-C
- BTUH Input (000): 399.0 (for R406A model)
- Gas Connection: 3/4"
- Water Connection: 2"

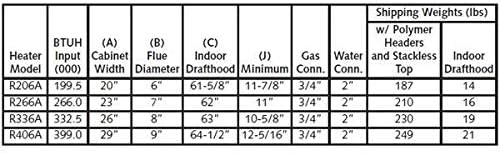

Figure 4: Comprehensive table detailing specifications for various Raypak heater models, including BTUH input, dimensions, and connection sizes.
8. Warranty and Support
Raypak provides a manufacturer's warranty for its products. It is important to note that warranty coverage may be contingent upon professional installation by a qualified technician. Self-installation, while possible for experienced individuals, may void or complicate warranty claims, particularly for components like temperature sensors.
For warranty claims, technical support, or to locate an authorized service provider, please contact Raypak customer service directly. Have your model number (P-R406A-EN-C) and serial number ready when contacting support.
Manufacturer Contact Information: Refer to the documentation included with your product or visit the official Raypak website for the most current contact details.
