1. Introduction
The Diesel Chronograph Black Dial Men's Watch, Model DZ4201, is a precision timepiece designed for accurate timekeeping and stopwatch functionality. This watch features a robust stainless steel case and band, a black dial with chronograph sub-dials, and is water-resistant. Understanding its functions and proper care will ensure its longevity and performance.
2. Setup and Initial Adjustment
2.1 Setting the Time
- Pull the crown (B) out to position 2.
- Turn the crown to set the hour and minute hands to the correct time.
- Push the crown back into position 1.
2.2 Setting the Date
- Pull the crown (B) out to position 1.
- Turn the crown clockwise to set the date. Avoid setting the date between 9 PM and 3 AM to prevent damage to the movement.
- Push the crown back into position 0.
2.3 Bracelet Adjustment
The stainless steel bracelet can be adjusted for a comfortable fit. This typically involves removing or adding links. It is recommended to have this procedure performed by a qualified jeweler or watch technician to prevent damage to the bracelet or watch.

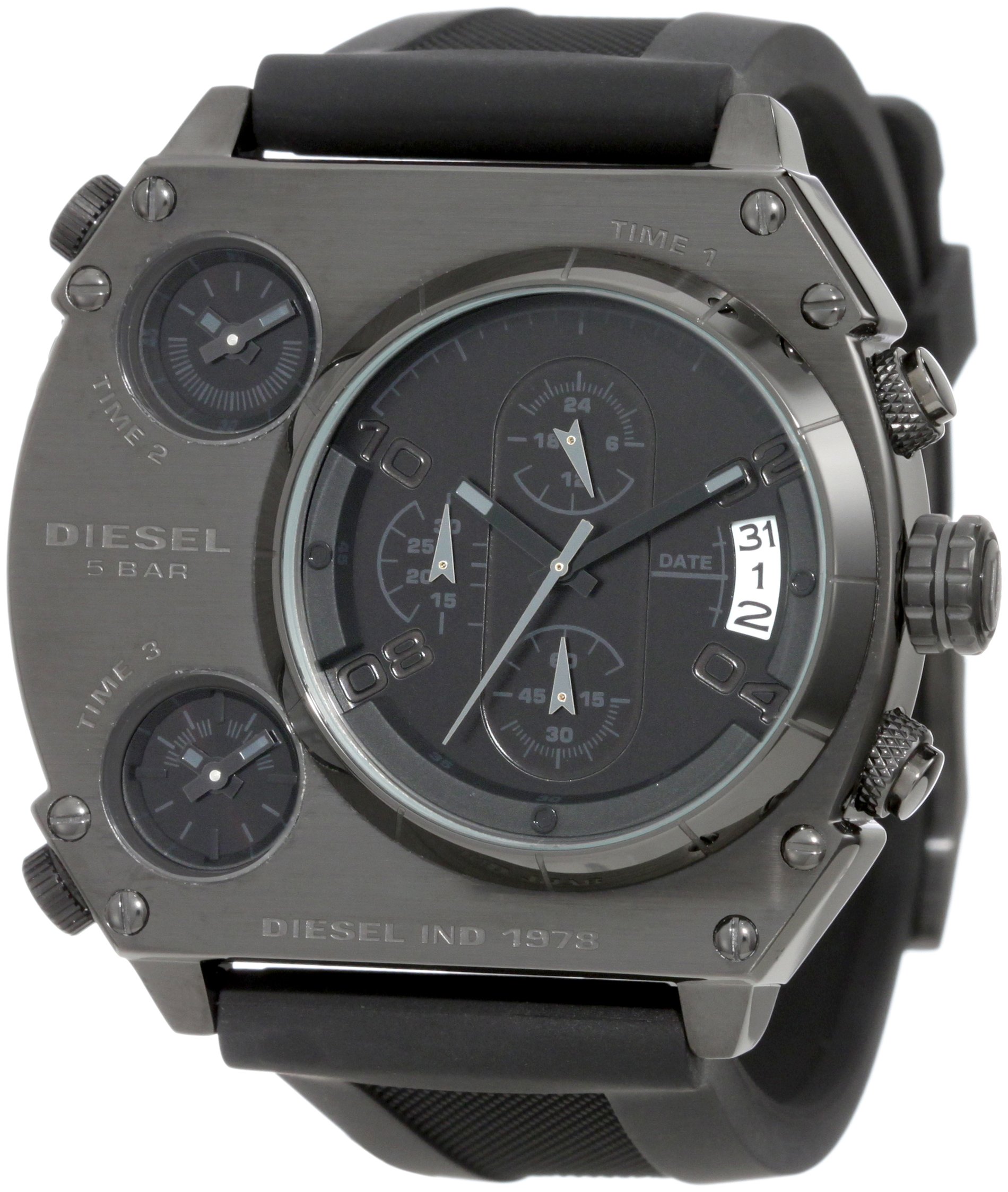

Image: The Diesel DZ4201 watch displayed on a wrist, illustrating its size and appearance when worn.
Image: A visual size chart illustrating different watch case diameters, from 14-16mm up to 50-54mm, to help determine appropriate sizing.
3. Operating the Chronograph (Stopwatch)
Your Diesel DZ4201 watch features a chronograph function, allowing it to be used as a stopwatch.
3.1 Starting and Stopping the Chronograph
- Press the upper pusher (A) to start the chronograph. The chronograph second hand will begin to move.
- Press the upper pusher (A) again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
3.2 Resetting the Chronograph
- After stopping the chronograph, press the lower pusher (C) to reset all chronograph hands to their zero positions.
- Ensure the chronograph is stopped before attempting to reset it.
4. Maintenance and Care
4.1 Cleaning
- Wipe the watch case and bracelet regularly with a soft, dry cloth to remove dust and dirt.
- For stainless steel parts, a slightly damp cloth can be used, followed by immediate drying.
- Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch's finish and seals.
4.2 Water Resistance
- The Diesel DZ4201 is water-resistant. However, it is not suitable for diving or prolonged submersion.
- Ensure the crown is fully pushed in before any contact with water.
- Do not operate the pushers or crown while the watch is wet or submerged.
- Exposure to hot water (e.g., showers, saunas) can compromise water resistance seals.
4.3 Battery Replacement
When the watch stops running, the battery may need replacement. It is highly recommended to have the battery replaced by an authorized Diesel service center or a professional watchmaker to ensure proper sealing and maintain water resistance.
4.4 Storage
When not in use, store your watch in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid placing it near magnetic fields, as this can affect the accuracy of the movement.
5. Troubleshooting
5.1 Watch Not Running
- Check the crown: Ensure the crown is fully pushed in to position 0.
- Battery: If the watch is quartz, the battery may be depleted. Refer to section 4.3 for battery replacement.
5.2 Chronograph Hands Not Resetting to Zero
- Reset procedure: Ensure you are pressing the lower pusher (C) after stopping the chronograph.
- Calibration: If the hands are consistently misaligned, the chronograph may require calibration. Consult an authorized service center.
5.3 Water Inside the Watch
- If condensation or water droplets appear inside the watch, immediately take it to an authorized service center. Do not attempt to dry it yourself, as this can cause further damage.
6. Specifications
- Model Number: DZ4201
- Brand: Diesel
- Case Material: Stainless Steel
- Case Diameter: 55 Millimetres
- Case Thickness: 13.2 Millimetres
- Band Material: Stainless Steel
- Band Width: 28 Millimetres
- Dial Colour: Black (as per title, though JSON specifies 'white' in one place, 'black dial' is in product title)
- Crystal Material: Crystal
- Water Resistance Level: Water Resistant
- Special Feature: Stop Watch (Chronograph)
- Closure Type: Push-Button
- Item Weight: 249 g
7. Warranty and Support
Your Diesel Chronograph Black Dial Men's Watch, Model DZ4201, is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, duration, and to register your product, please refer to the warranty card included with your purchase or visit the official Diesel website.
For technical support, service, or inquiries regarding your watch, please contact Diesel customer service or an authorized service center. Contact information can typically be found on the official Diesel website or in your product packaging.
