Monroe RoadMatic 281952 Suspension Strut and Coil Spring Assembly User Manual for Toyota Corolla

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Monroe RoadMatic 281952 Suspension Strut and Coil Spring Assembly. This integrated unit is designed to meet original equipment (OE) specifications, offering a complete solution for strut replacement without the need for a spring compressor. It is engineered for specific vehicle applications to restore ride quality and handling performance.

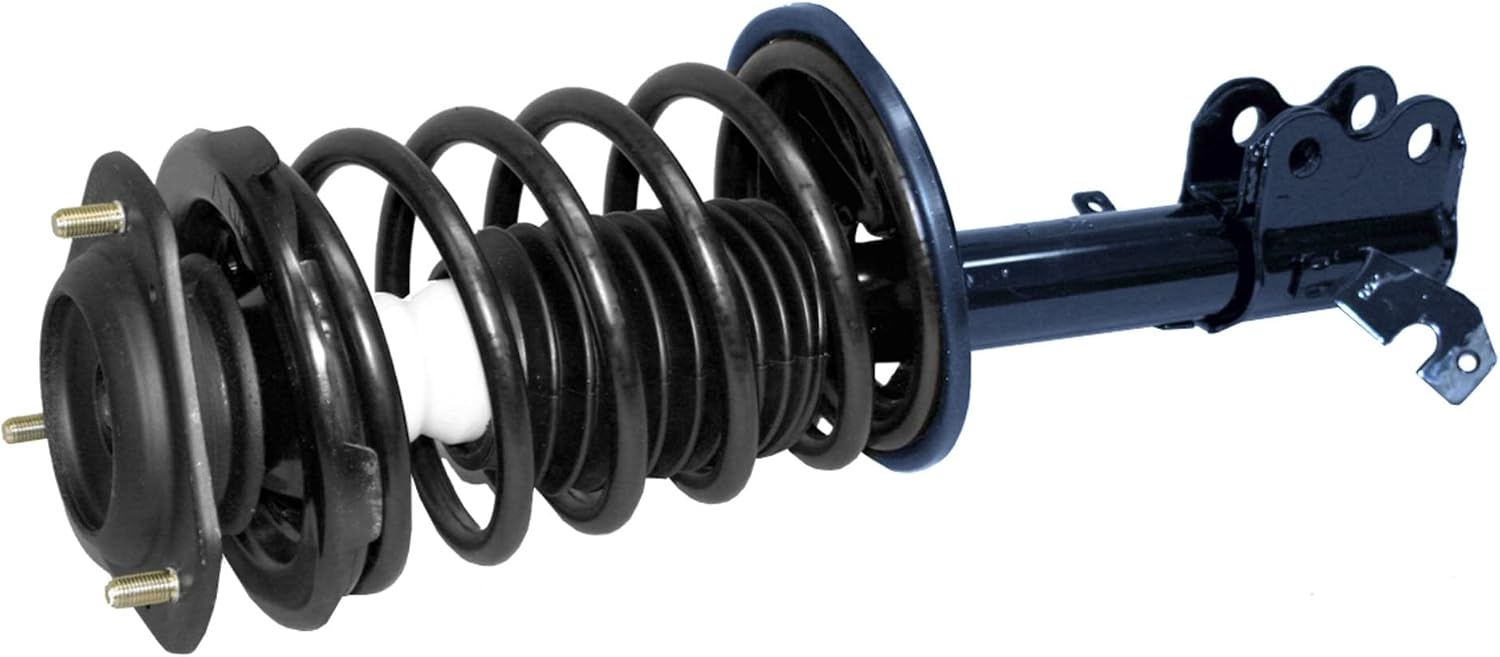

Image 1.1: The Monroe RoadMatic 281952 Suspension Strut and Coil Spring Assembly, a fully integrated unit for vehicle suspension.

2. Product Features

• Complete Repair Solution: Includes all necessary components for strut replacement in a single, fully assembled unit.
• No Spring Compressor Required: Eliminates the need for specialized tools, simplifying installation.
• OE Specification Compliance: Engineered and tested to meet original equipment fit and ride specifications.
• Enhanced Performance: Features nitrogen gas-charge and all-weather fluid for improved ride comfort and handling stability.
• Broad Coverage: Available for various domestic and import passenger cars, light trucks, and SUVs.

Image 2.1: Two Monroe RoadMatic strut assemblies, illustrating the "Quicker, Safer, Easier, and Complete Repair" feature, as they are fully assembled units.

3. Package Contents

The Monroe RoadMatic 281952 Suspension Strut and Coil Spring Assembly package typically includes:

• One (1) Monroe RoadMatic 281952 Strut and Coil Spring Assembly
• Mounting Hardware
• Parts Pack(s) (as required for installation)

4. Compatibility

This Monroe RoadMatic 281952 Suspension Strut and Coil Spring Assembly is compatible with the following vehicles:

• 1998-2002 Chevrolet Prizm
• 1993-1997 Geo Prizm
• 1993-2002 Toyota Corolla

Important: Before purchasing and installing, verify compatibility by entering your vehicle's year, make, model, engine, and trim information. Consult any qualifier notes to ensure proper fitment.

5. Installation Guide

5.1 Safety Precautions

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on jack stands on a level surface before beginning any work. Never rely solely on a jack.
• Disconnect the negative battery terminal before working on any electrical components.
• Refer to your vehicle's service manual for specific torque specifications and additional safety guidelines.
• If you are unsure about any step, consult a qualified automotive technician.

5.2 Tools Required

• Jack and Jack Stands
• Wheel Chocks
• Socket Wrench Set (metric and/or standard, as required by vehicle)
• Combination Wrenches
• Torque Wrench
• Pry Bar
• Penetrating Oil
• Wire Brush

5.3 Installation Steps (General Guidelines)

The Monroe RoadMatic assembly is designed for straightforward installation, eliminating the need for a spring compressor. The following steps are general; always consult your vehicle's specific service manual for detailed instructions.

1. Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and chock the rear wheels. Loosen the lug nuts on the wheel corresponding to the strut being replaced.
2. Lift and Secure: Jack up the front of the vehicle and place it securely on jack stands. Remove the wheel.
3. Disconnect Components:
   • Disconnect the brake line and ABS sensor wire (if applicable) from the strut assembly. Ensure these are not stretched or damaged.
   • Remove the sway bar link from the strut.
   • Remove the bolts connecting the lower part of the strut to the steering knuckle.
4. Remove Old Strut: Support the steering knuckle to prevent it from hanging freely. Access the engine bay and remove the top mounting nuts of the strut assembly. Carefully lower and remove the old strut assembly from the vehicle.
5. Install New Strut:
   • Position the new Monroe RoadMatic assembly into the vehicle, aligning the top mounting studs with the holes in the strut tower. Secure with new nuts (if provided) or original nuts, but do not fully tighten yet.
   • Align the lower mounting holes of the strut with the steering knuckle. Insert and hand-tighten the bolts.
6. Reconnect and Torque:
   • Reconnect the brake line, ABS sensor wire, and sway bar link.
   • Torque all mounting bolts and nuts to the vehicle manufacturer's specifications. This is critical for safety and performance.
7. Final Steps: Reinstall the wheel, lower the vehicle, and torque the lug nuts to specification. Repeat the process for the other side if replacing both front struts.
8. Post-Installation: It is highly recommended to have a professional wheel alignment performed after replacing suspension components to ensure proper vehicle handling and tire wear.

Image 5.1: A mechanic installing a strut assembly, demonstrating the ease of installation for fully integrated units.

6. Operating Principles

A suspension strut assembly, like the Monroe RoadMatic 281952, is a critical component of your vehicle's suspension system. It combines the functions of a shock absorber and a coil spring into a single unit. The coil spring supports the vehicle's weight and absorbs road impacts, while the shock absorber (damper) controls the spring's oscillations, preventing excessive bouncing and maintaining tire contact with the road. This integrated design ensures consistent performance, improved handling, and a comfortable ride by managing vertical movement and body roll.

Image 6.1: A close-up view of the Monroe RoadMatic strut assembly, showcasing its design for consistent performance.

7. Maintenance

While the Monroe RoadMatic strut assembly is a sealed unit and requires no routine maintenance, periodic inspection of your vehicle's suspension components is recommended to ensure optimal performance and safety. Look for the following:

• Visual Inspection: Check for any signs of fluid leaks from the strut, damaged or corroded springs, or worn rubber components (bushings, boots).
• Noise: Listen for unusual noises (clunking, squeaking) coming from the suspension, especially over bumps.
• Ride Quality: Pay attention to changes in ride comfort, excessive bouncing, or poor handling.
• Tire Wear: Uneven tire wear can indicate suspension issues.

If any issues are detected, consult a qualified technician for diagnosis and repair.

Image 7.1: Example of a damaged coil spring, highlighting the importance of regular visual inspections.

8. Troubleshooting

This section addresses common issues that may arise with suspension components. Note that these are general guidelines, and professional diagnosis is recommended for persistent problems.

If troubleshooting steps do not resolve the issue, seek assistance from a certified automotive technician.

9. Specifications

10. Warranty and Support

For specific warranty information regarding your Monroe RoadMatic 281952 Suspension Strut and Coil Spring Assembly, please refer to the documentation included with your purchase or visit the official Monroe website. For technical support, installation assistance, or to inquire about warranty claims, please contact Monroe customer service directly.

Monroe is a registered trademark of Tenneco Inc.
