Product Overview
The Steamist CP150-PC SM Series Control Package is designed for use with the SM 240V steam generator. This package provides comprehensive control and essential components for a complete steam shower system, featuring a polished chrome finish.
Key Components Included:
- SMC-150 Control: Main control unit for adjusting steam shower settings.
- SMC-120 On/Off Control: Dedicated control for simple steam generator activation and deactivation.
- 3199 Steamhead: The outlet for steam delivery into the shower enclosure.
- Auto-Drain (240-Volt): An automatic drainage system for the steam generator, ensuring proper maintenance and longevity.
- Polished Chrome Finish: All visible components feature a polished chrome aesthetic.

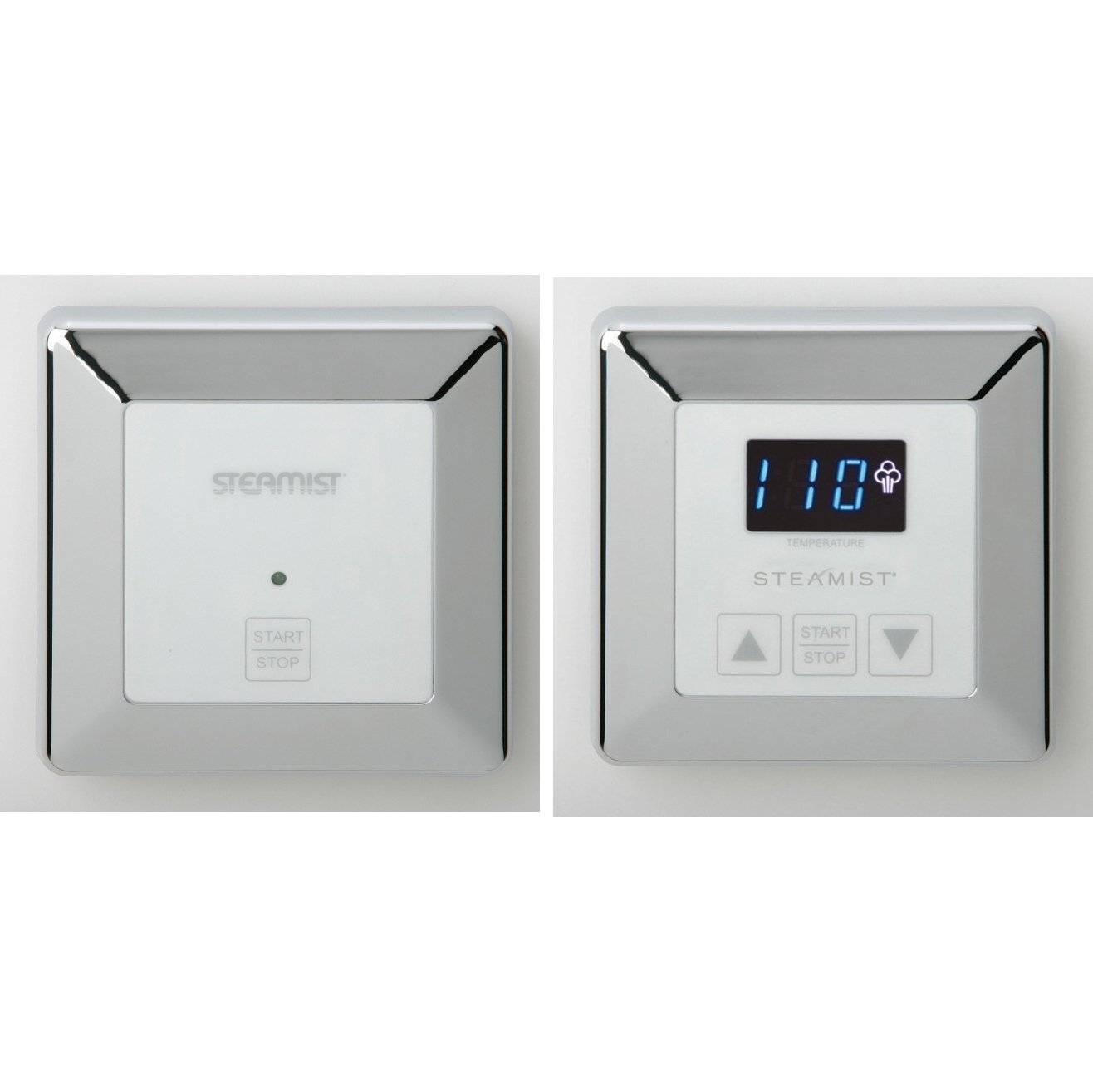

Figure 1: Steamist CP150-PC SM Series Control Package in polished chrome finish, showing the main control unit and associated components.
Setup and Installation
This control package is intended for integration with a Steamist SM 240V steam generator. Installation should be performed by a qualified professional in accordance with all local plumbing and electrical codes. Refer to the comprehensive installation manual provided with the steam generator for detailed instructions on wiring, plumbing, and mounting of the controls and steamhead.
Pre-Installation Checks:
- Ensure the steam generator is compatible with the CP150-PC control package.
- Verify all necessary electrical and plumbing connections are available at the installation site.
- Confirm the steam shower enclosure is properly sealed to retain steam.
Operating Instructions
Once installed, the Steamist CP150-PC control package allows for easy operation of your steam shower. The SMC-120 control provides a straightforward on/off function, while the SMC-150 control offers advanced settings for a customized steam experience.
Basic Operation:
- Turning On: Press the button on the SMC-120 on/off control to activate the steam generator.
- Adjusting Settings: Use the SMC-150 control to set desired temperature and duration for your steam session. Consult the SMC-150 user guide for specific navigation and adjustment procedures.
- Turning Off: Press the button on the SMC-120 control again, or allow the session to complete its programmed duration.
Maintenance
Regular maintenance ensures optimal performance and longevity of your Steamist steam shower system. The CP150-PC package includes an auto-drain feature to simplify routine care.
Routine Care:
- Auto-Drain Function: The 240-Volt auto-drain system automatically flushes the steam generator after each use, minimizing mineral buildup. Ensure this feature is correctly connected and functioning.
- Cleaning Controls and Steamhead: Wipe the polished chrome surfaces of the SMC-150, SMC-120, and 3199 steamhead with a soft, damp cloth. Avoid abrasive cleaners that can damage the finish.
- Steamhead Maintenance: Periodically check the steamhead for any blockages and clean as necessary to ensure unobstructed steam flow.
Troubleshooting
If you encounter issues with your Steamist CP150-PC control package, review the following common troubleshooting steps. For more complex problems, contact a qualified service technician or Steamist customer support.
Common Issues:
- No Steam Production:
- Verify the steam generator is powered on and receiving water.
- Check connections between the controls and the steam generator.
- Ensure the SMC-120 is activated and the SMC-150 has a session programmed.
- Controls Not Responding:
- Check electrical supply to the controls and steam generator.
- Inspect wiring for any loose connections.
- Steamhead Blockage:
- Carefully inspect the 3199 steamhead for mineral deposits or debris. Clean gently if necessary.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Steamist |
| Part Number | CP150-PC |
| Item Model Number | CP150-PC |
| Color | Polished Chrome |
| Item Weight | 5 ounces |
| Package Dimensions | 4.8 x 4.61 x 4.21 inches |
| Item Package Quantity | 1 |
| Date First Available | August 3, 2010 |
Warranty and Support
The Steamist CP150-PC SM Series Control Package comes with a Limited Lifetime Warranty on certain components and a 2-Year Parts Warranty. Please refer to the official Steamist warranty documentation for full terms and conditions.
Customer Support:
For technical assistance, warranty claims, or service inquiries, please contact Steamist customer support directly. Have your model number (CP150-PC) and date of purchase ready when contacting support.
Note: Warranty details are subject to change. Always refer to the most current documentation provided by the manufacturer.
