Yamaha SA2200 Semi-Hollow Electric Guitar Instruction Manual

1. Introduction

This manual provides essential information for the proper setup, operation, and maintenance of your Yamaha SA2200 Semi-Hollow Electric Guitar. Please read this manual thoroughly to ensure optimal performance and longevity of your instrument.

Figure 1: Front view of the Yamaha SA2200 Semi-Hollow Electric Guitar in Violin Sunburst finish.

2. Setup

2.1 Initial Inspection

Upon unboxing, carefully inspect the guitar for any signs of damage. Ensure all components are present and securely attached. The Yamaha SA2200 is a finely crafted instrument; handle it with care.

2.2 Tuning

Before playing, tune the guitar using a reliable electronic tuner. Standard tuning is E-A-D-G-B-e (from thickest to thinnest string).

2.3 Connecting to an Amplifier

Connect a standard 1/4 inch (6.35mm) instrument cable from the guitar's output jack to your amplifier's input. Ensure the amplifier's volume is set to a low level before powering on.

3. Operating the Yamaha SA2200

3.1 Controls Overview

The SA2200 features a versatile control layout for shaping your tone:

• Front Volume: Controls the output level of the neck pickup.
• Rear Volume: Controls the output level of the bridge pickup.
• Front Tone (Push-Pull Coil Split): Adjusts the tone of the neck pickup. Pulling the knob up splits the humbucker into a single-coil for a brighter sound.
• Rear Tone (Push-Pull Coil Split): Adjusts the tone of the bridge pickup. Pulling the knob up splits the humbucker into a single-coil.
• 3-Way Pickup Selector Switch:
  • Up Position: Neck pickup only.
  • Middle Position: Both neck and bridge pickups.
  • Down Position: Bridge pickup only.

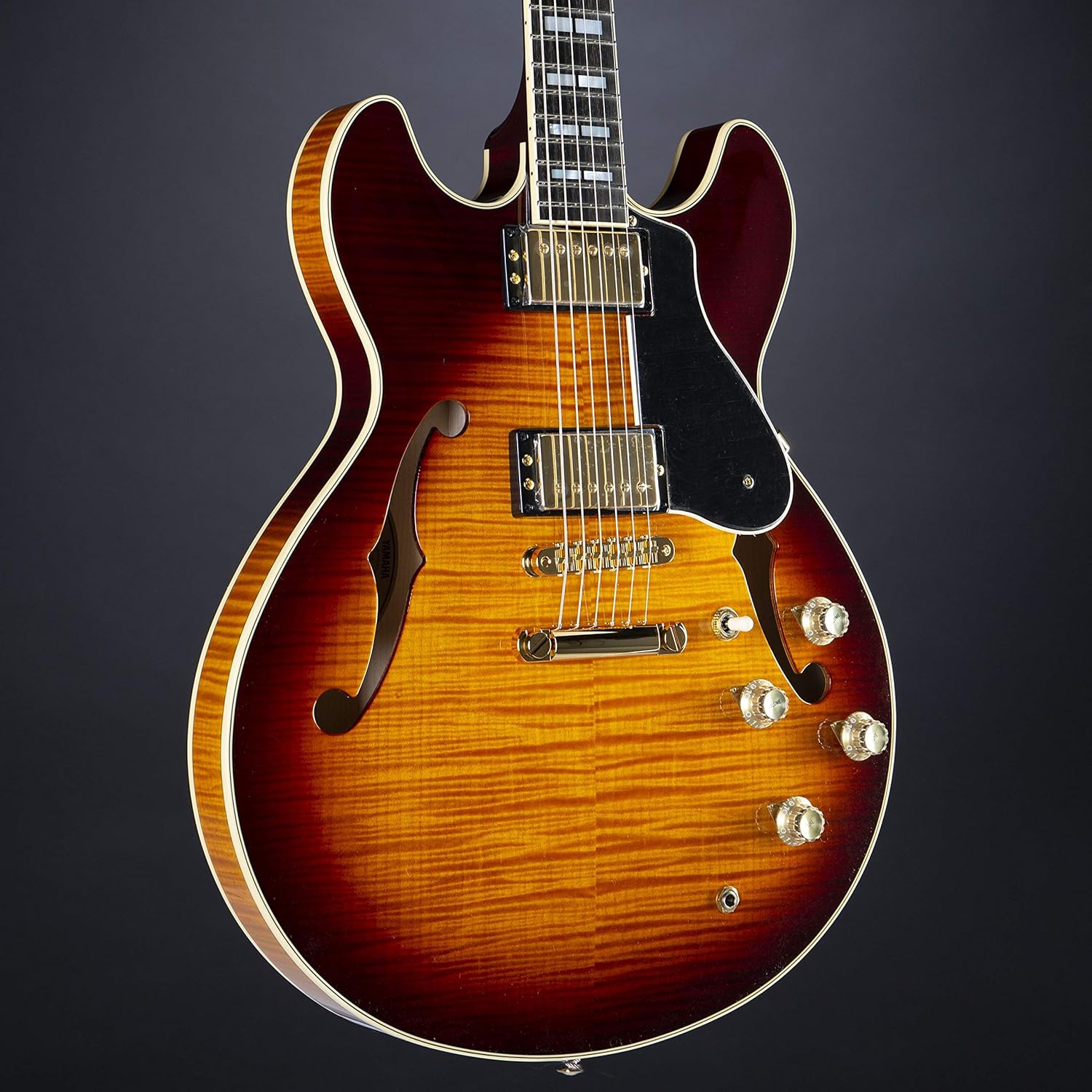

Figure 2: Control layout of the Yamaha SA2200, showing volume, tone knobs with push-pull functionality, and the 3-way pickup selector.

3.2 Pickup System

The SA2200 is equipped with humbucker pickups featuring Alnico V magnets. These pickups are designed to deliver a rich, full tone with excellent clarity. The three-point support system allows for fine height adjustment between the pickups and strings, enabling precise tonal customization.

4. Maintenance

4.1 Cleaning

Regularly wipe down your guitar with a soft, dry cloth after each use to remove sweat and fingerprints. For a deeper clean, use a guitar-specific polish and cleaner. Avoid abrasive materials or household cleaners.

4.2 String Replacement

Replace strings regularly to maintain optimal tone and playability. When replacing, change one string at a time to maintain neck tension. Use metal strings of appropriate gauge for electric guitars.

4.3 Bridge Adjustment

The precision bridge allows for accurate height, tension, and intonation adjustment. If you are unfamiliar with these adjustments, it is recommended to consult a qualified guitar technician to prevent damage to the instrument.

Figure 3: The fixed bridge system on the Yamaha SA2200, designed for precise adjustments.

4.4 Storage

Store your guitar in a stable environment, away from extreme temperature changes and humidity fluctuations. A guitar case is recommended for protection.

5. Troubleshooting

• No Sound:
  • Check all cable connections (guitar to amplifier, amplifier to power).
  • Ensure amplifier is powered on and volume is up.
  • Verify guitar volume knobs are not set to zero.
  • Test with a different cable or amplifier if possible.
• Buzzing/Humming:
  • Check for proper grounding of your amplifier and power outlets.
  • Ensure all guitar components (pickups, bridge, output jack) are securely connected.
  • If using single-coil mode (coil split), some hum is normal.
• Poor Intonation:
  • Intonation issues often require bridge saddle adjustments. Consult a technician if unsure.
  • Ensure strings are new and correctly installed.

6. Specifications

7. Warranty and Support

For warranty information and technical support, please refer to the official Yamaha website or contact your authorized Yamaha dealer. Keep your purchase receipt as proof of purchase.

Note: A guitar case is not included with this product.
