1. Introduction and Safety Information
This manual provides important information regarding the installation, operation, and maintenance of your U-Line Wine Captain 1000 Series model 1175WCS-00. Please read this manual thoroughly before using the appliance to ensure proper operation and to prevent injury or damage.
Important Safety Instructions
- Read all instructions before using the appliance.
- DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.
- WARNING: Use this appliance only for its intended purpose as described in this manual.
- WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- WARNING: This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
2. Setup and Installation
Proper installation is crucial for the performance and longevity of your Wine Captain unit.
Unpacking
- Remove all packaging materials, including foam and tape.
- Inspect the unit for any shipping damage. Report any damage immediately to the carrier.
- Allow the unit to stand upright for at least 24 hours before plugging it in to allow the refrigerant to settle.
Location Requirements
- Install the unit on a level, stable surface capable of supporting its weight when fully loaded.
- Ensure adequate ventilation. Do not block the front grille or any ventilation openings.
- Avoid direct sunlight or heat sources (e.g., oven, radiator).
- Maintain proper clearances as specified in the installation guide for built-in applications.
Electrical Requirements
The unit requires a dedicated, grounded 115 Volt, 60 Hz, 15 Amp circuit. Do not use extension cords or adapter plugs. Ensure the electrical outlet is properly grounded.
Door Reversal
The door on your U-Line Wine Captain is field reversible, meaning it can be configured to open from either the left or right side. Refer to the detailed instructions provided in the separate installation guide for the specific steps to reverse the door swing.

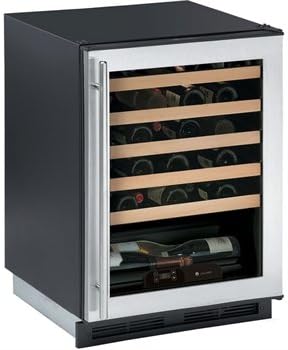

Figure 1: U-Line Wine Captain 1175WCS-00, showcasing its sleek design with a glass door and internal beech-trimmed slide-out racks.
3. Operating Your Wine Captain
Understanding the controls and features will help you optimize your wine storage.
Digital Controls
The unit features an intuitive digital control panel, typically located at the top interior or exterior of the unit. Use the 'Up' and 'Down' arrows to adjust the desired temperature for each zone. The display will show the set temperature and the actual internal temperature.
Triple Temperature Zone
Your 1175WCS-00 model is equipped with three independent temperature zones, allowing for optimal storage of various wine types:
- Upper Zone: Ideal for white wines and champagne, typically set between 45-55°F (7-13°C).
- Middle Zone: Suitable for red wines, typically set between 55-65°F (13-18°C).
- Lower Zone: Often used for long-term storage or specific serving temperatures, offering flexibility.
Ensure each zone is set to the appropriate temperature for the wines stored within it.
Loading and Storage Tips
- Load bottles carefully onto the beech-trimmed slide-out racks. Ensure bottles do not touch the back wall or obstruct the fan.
- The unit has a 48-bottle capacity, designed for standard 750ml Bordeaux-style bottles. Larger or irregularly shaped bottles may reduce overall capacity.
- For optimal long-term storage, maintain consistent temperatures and humidity.
- Avoid frequent opening of the door to maintain stable internal temperatures.
4. Maintenance
Regular maintenance helps ensure the efficient operation and longevity of your Wine Captain.
Cleaning
- Interior: Clean the interior with a mild detergent and warm water solution. Rinse thoroughly and dry. Do not use abrasive cleaners or solvents.
- Exterior: Wipe the exterior surfaces with a soft cloth and mild soap. For stainless steel, use a stainless steel cleaner.
- Condenser: Periodically clean the condenser coils (located behind the front grille) with a vacuum cleaner or brush to remove dust and debris. This improves efficiency.
Winterization (for extended non-use)
If the unit will be stored or not used for an extended period, especially in an unheated area:
- Unplug the unit from the power outlet.
- Remove all bottles.
- Clean the interior thoroughly.
- Leave the door slightly ajar to prevent odors and mold growth.
5. Troubleshooting
Before calling for service, please review the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | No power to the unit; circuit breaker tripped; unit unplugged. | Check power cord connection; reset circuit breaker; ensure outlet is functional. |
| Temperature is not cold enough | Door not closed properly; excessive door openings; warm ambient temperature; condenser coils dirty. | Ensure door is sealed; reduce door openings; ensure proper ventilation; clean condenser coils. |
| Unit is making unusual noise | Unit not level; fan obstruction; normal operating sounds. | Level the unit; check for obstructions around fan; gurgling/hissing sounds are normal. |
| Excessive moisture inside | High humidity; door left open; drain tube clogged. | Ensure door is sealed; clean drain tube if accessible. |
6. Specifications
Technical details for the U-Line Wine Captain 1000 Series, Model 1175WCS-00.
- Model: 1175WCS-00
- Capacity: 48 standard 750ml wine bottles
- Temperature Zones: Triple Temperature Zone
- Racks: Beech-Trimmed Slide-Out Racks
- Door Type: Glass Door with Stainless Steel Frame
- Door Hinge: Field Reversible
- Controls: Digital Controls
- Electrical: 115V AC, 60 Hz, 15 Amp dedicated circuit
- Dimensions (Approximate): 24 inches (Width) x [Height] x [Depth] (Specific dimensions should be verified with installation guide)
7. Warranty and Support
U-Line stands behind the quality of its products. Your Wine Captain unit is covered by a limited warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including coverage duration and limitations.
Customer Support
For technical assistance, parts, or service inquiries, please contact U-Line Customer Service. Have your model number (1175WCS-00) and serial number ready when you call.
- Website: www.u-line.com
- Phone: Refer to U-Line's official website for current contact numbers.
- Service Locator: Visit the U-Line website to find an authorized service provider in your area.
