Elkay AP99 Access Panel Kit Instruction Manual

1. Product Overview

The Elkay AP99 Access Panel Kit is designed to provide convenient access to the interior of a wall, typically behind drinking fountains or water coolers. This allows for easier maintenance, repair, or inspection of plumbing and electrical components without requiring extensive wall demolition. Constructed from durable stainless steel, the AP99 ensures longevity and a clean aesthetic.

This kit is commonly utilized in installations where rear access to the product is not available, making it an essential component for serviceability in various commercial and public environments.

2. Components Included

The Elkay AP99 Access Panel Kit includes the following components:

• Stainless Steel Access Panel (9" x 9" x 6")
• Mounting Frame
• Fasteners and Hardware for installation

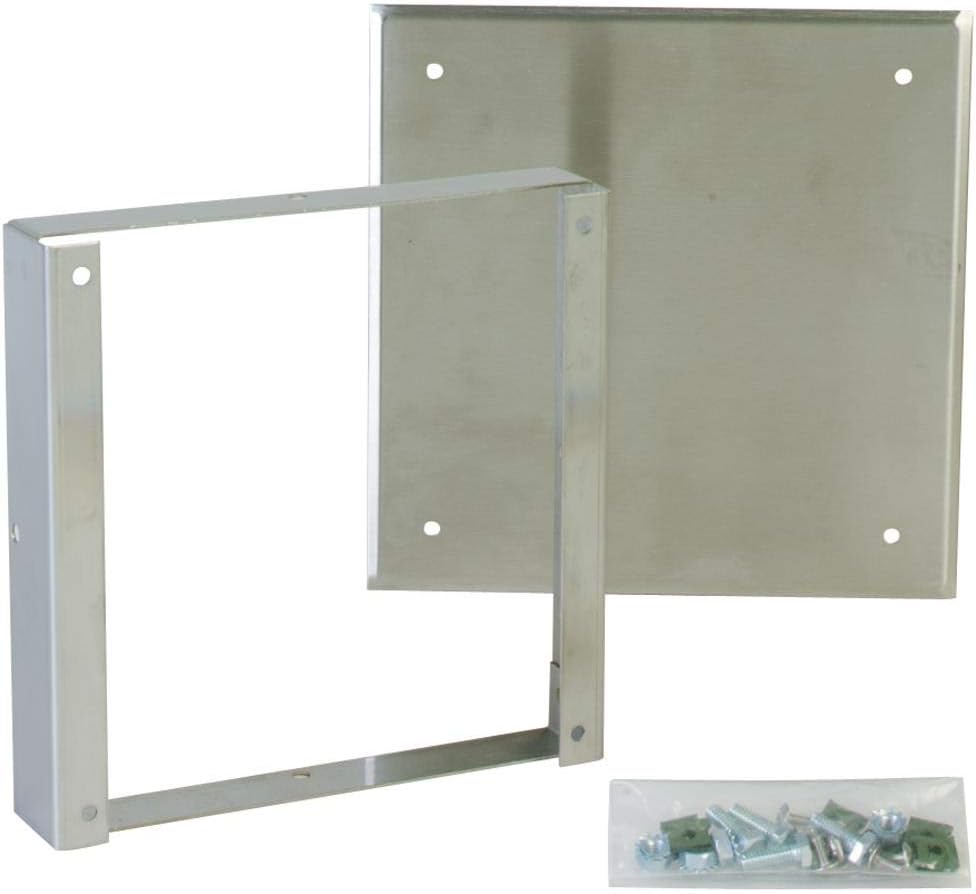

Figure 1: Elkay AP99 Access Panel Kit components. This image displays the stainless steel access panel, its corresponding mounting frame, and a bag containing the necessary fasteners and hardware for installation.

3. Installation Guidelines

Proper installation of the Elkay AP99 Access Panel is crucial for secure fit and functionality. Follow these steps:

1. Prepare the Opening: Measure and cut an opening in the wall according to the dimensions of the access panel frame. Ensure the opening is clean and free of debris. The panel dimensions are approximately 9" x 9" x 6".
2. Insert the Frame: Place the mounting frame into the prepared wall opening. Ensure it sits flush with the wall surface.
3. Secure the Frame: Use the provided fasteners to secure the mounting frame to the wall studs or appropriate anchoring points. Ensure the frame is level and firmly attached.
4. Attach the Panel: Once the frame is secure, position the stainless steel access panel into the frame. The panel is designed to fit snugly.
5. Final Check: Verify that the panel is securely in place and can be easily opened and closed for access.

Figure 2: An Elkay AP99 Access Panel installed on a wall. This image demonstrates how the panel integrates into a wall structure, providing a discreet and functional access point, likely behind a drinking fountain or water cooler.

4. Usage

The Elkay AP99 Access Panel serves as a removable cover for an opening in a wall. To access the area behind the panel for maintenance or inspection of a drinking fountain or cooler:

• Gently remove the stainless steel panel from its frame. Depending on the installation, this may involve unlatching or unscrewing retention clips.
• After completing necessary work, carefully re-insert the panel into the frame, ensuring it is securely seated.

5. Care and Cleaning

To maintain the appearance and integrity of your stainless steel access panel, follow these cleaning guidelines:

• Regular Cleaning: Wipe the surface with a soft cloth dampened with warm water and a mild detergent.
• Stubborn Stains: For more persistent marks, use a non-abrasive stainless steel cleaner. Always rub in the direction of the grain.
• Avoid: Do not use abrasive cleaners, scouring pads, or steel wool, as these can scratch the stainless steel finish. Avoid cleaners containing chlorine bleach, as it can cause corrosion.
• Drying: Always dry the panel thoroughly with a soft, clean cloth to prevent water spots and streaks.

6. Troubleshooting

If you encounter issues with your Elkay AP99 Access Panel, consider the following:

• Panel Not Fitting Securely:
  Possible Cause: The wall opening may be incorrectly sized, or the mounting frame is not installed level or flush.
  Solution: Re-check wall opening dimensions and ensure the frame is installed correctly and securely. Adjust fasteners if necessary.
• Difficulty Removing/Re-inserting Panel:
  Possible Cause: Debris in the frame, or the panel/frame is slightly warped.
  Solution: Clean the frame thoroughly. If warping is suspected, inspect for damage. Ensure the panel is aligned correctly before attempting to re-insert.
• Scratches or Dents on Panel:
  Possible Cause: Impact during installation or use, or improper cleaning.
  Solution: Minor scratches may be buffed out with specialized stainless steel scratch removal kits, following product instructions. For significant damage, replacement may be necessary.

7. Product Specifications

8. Warranty Information

For specific warranty details regarding the Elkay AP99 Access Panel Kit, please refer to the official warranty documentation provided at the time of purchase or visit the official Elkay website. Warranty coverage typically addresses manufacturing defects under normal use conditions.

9. Customer Support

Should you require further assistance, have questions about installation, or need to report an issue, please contact Elkay customer support. You can find contact information on the official Elkay website or through your product retailer.

For installation services or professional assistance, you may visit elkay.com/install or call 800-952-8064.
