Introduction
Thank you for choosing the Gilmour 7100PM Oscillating Sprinkler with Aluminum Tube. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new sprinkler. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.
Product Features
- Ideal for watering medium-sized areas efficiently.
- Durable poly construction designed for extended use.
- Spray tube equipped with 17 jets for comprehensive coverage.
- Easy-to-use rotation dial for adjusting spray distance and pattern.
- Provides coverage for areas up to 3,000 square feet.
- 100% water tested to ensure leak-proof performance.

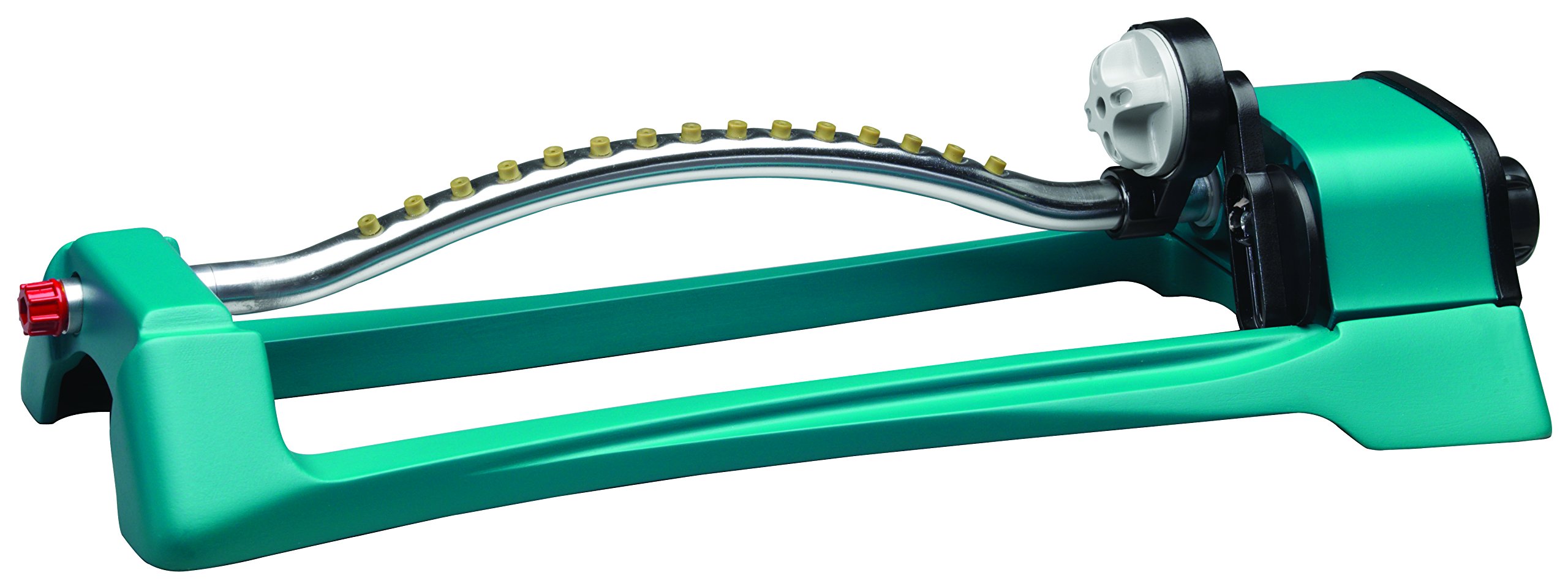

Image: The Gilmour 7100PM Oscillating Sprinkler, featuring its black and green polymer base and silver aluminum spray tube with multiple jets.
Safety Information
- Always ensure the sprinkler is placed on a stable, level surface to prevent tipping during operation.
- Do not leave the sprinkler unattended for extended periods, especially in areas with high water pressure, to prevent potential flooding or damage.
- Keep children and pets away from the sprinkler during operation to avoid accidental injury or damage to the unit.
- Disconnect the water supply and drain the sprinkler before moving or storing it.
- Do not attempt to disassemble or repair the sprinkler if you are not qualified. Refer to the warranty information for service.
Setup
- Unpack: Carefully remove the sprinkler from its packaging and inspect for any damage.
- Position: Place the sprinkler in the desired watering area. Ensure it is on a flat surface to allow for even water distribution.
- Connect Hose: Attach your standard garden hose to the sprinkler's inlet connection. Hand-tighten the connection to prevent leaks. Do not overtighten.
- Water Supply: Slowly turn on the water supply to the hose. Check for any leaks at the connection point.
Operating Instructions
The Gilmour 7100PM sprinkler is designed for easy adjustment to suit various watering needs.
- Adjusting Spray Pattern: The sprinkler features an easy-to-use rotation dial. Locate the adjustment levers or tabs on the side of the sprinkler. Move these levers to set the desired watering arc, from a narrow strip to a wide rectangular pattern.
- Adjusting Water Flow/Distance: The distance of the spray is primarily controlled by your water pressure. For a shorter spray, reduce the water flow from your spigot. For maximum coverage up to 3,000 square feet, ensure full water pressure.
- Oscillation: The sprinkler is designed to oscillate automatically once water flow is sufficient. If oscillation does not begin, ensure adequate water pressure.
Maintenance
- Cleaning Nozzles: Periodically check the 17 spray jets for clogs from debris or mineral deposits. Use a small pin or needle to clear any blockages.
- Filter Screen: The hose connection may contain a small filter screen. Remove and rinse this screen regularly to prevent debris from entering the sprinkler mechanism.
- Winter Storage: Before freezing temperatures, disconnect the sprinkler from the hose, drain all water, and store it in a dry, protected area to prevent damage from ice expansion.
- General Cleaning: Wipe the exterior of the sprinkler with a damp cloth to remove dirt and grime. Do not use harsh chemicals.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sprinkler does not oscillate. | Insufficient water pressure; internal mechanism obstruction. | Increase water pressure. Check for and clear any debris in the oscillation mechanism. |
| Uneven spray pattern or reduced distance. | Clogged nozzles; low water pressure; kinked hose. | Clean nozzles with a pin. Ensure adequate water pressure. Straighten any kinks in the hose. |
| Water leaks from hose connection. | Loose connection; worn washer. | Tighten hose connection. Replace the rubber washer in the hose if damaged. |
| Sprinkler moves or tips over. | Uneven ground; excessive water pressure. | Place sprinkler on a level surface. Reduce water pressure if necessary. |
Specifications
- Brand: GILMOUR
- Model: 7100PM (Manufacturer Part Number: 871003-1001)
- Material: Polymer base, Aluminum tube
- Style: Oscillating
- Coverage Area: Up to 3,000 square feet
- Number of Jets: 17
- Item Dimensions (L x W x H): Approximately 6.2 x 16 x 3.5 inches
- Item Weight: Approximately 14.4 ounces
- UPC: 034411025901
Warranty and Support
Warranty: The Gilmour 7100PM Oscillating Sprinkler comes with a Lifetime Replacement warranty from the manufacturer. Please retain your proof of purchase for warranty claims.
Customer Support: For further assistance, technical support, or warranty inquiries, please contact Gilmour customer service. Refer to the official Gilmour website or product packaging for current contact information.
