1. Introduction and Overview
The NOCO Genius G7200 is an advanced 7.2 Amp smart battery charger designed for 12-volt and 24-volt lead-acid and lithium-ion batteries up to 230 Amp-hours. This charger is suitable for a wide range of applications, including automotive, marine, RV, lawn & garden, and deep-cycle batteries. It features an onboard microcomputer that monitors battery activity for safe and efficient charging, automatically minimizing energy consumption. The G7200 incorporates redundant safety protections, such as spark-proof technology, reverse polarity protection, and overcharge protection, allowing it to remain safely connected 24/7. Its robust design is impact, UV, and water-resistant (IP65).
Image 1.1: The NOCO Genius G7200 Battery Charger and Maintainer, shown with its power cord and battery clamps. This image provides a general view of the product and its primary connection components.
2. What's in the Box
Upon opening the packaging, verify that all components are present:
- G7200 Battery Charger and Maintainer Unit
- GC001 Battery Clamps with Integrated Eyelets
- User Guide & Warranty Information

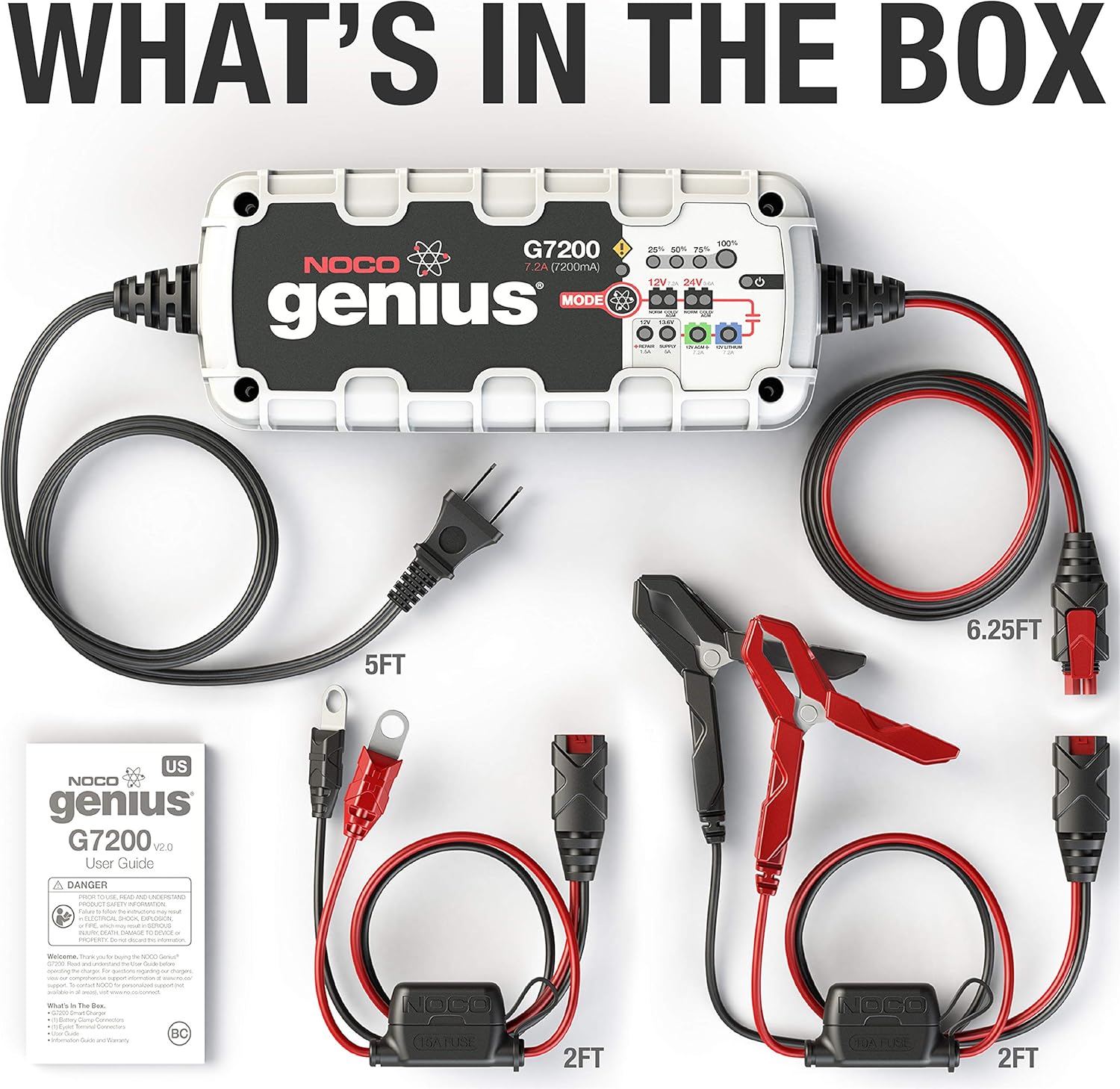

Image 2.1: A visual representation of the NOCO Genius G7200 package contents, including the charger unit, battery clamps, eyelet terminals, and the user manual.
3. Setup Instructions
Follow these steps to properly set up your NOCO Genius G7200 charger:
- Connect to Battery: Attach the battery clamps or eyelet terminals to your battery. Ensure correct polarity: the red clamp/eyelet connects to the positive (+) battery terminal, and the black clamp/eyelet connects to the negative (-) battery terminal.
- Connect to AC Power: Plug the charger's AC power cord into a 120-volt 50-60Hz electrical outlet. The charger will perform a self-diagnostic test.
- Select Charging Mode: Press the 'MODE' button to cycle through the available charging modes until you select the appropriate mode for your battery type and voltage (e.g., 12V, 24V, 12V Cold/AGM, 24V Cold/AGM, 12V Lithium, Repair, Supply).
- Begin Charging: Once a mode is selected, the charger will automatically begin the charging process. The LED indicators will provide feedback on the state-of-charge and diagnostic information.
Image 3.1: The NOCO Genius G7200 charger connected to a car battery, demonstrating the proper attachment of the battery clamps to the terminals.
4. Operating Instructions
The G7200 offers various charging modes to optimize battery performance and longevity:
- 12V Normal: For standard 12-volt lead-acid batteries (Wet, Gel, AGM).
- 12V Cold/AGM: For charging 12-volt AGM batteries or charging in cold conditions (below 10°C / 50°F).
- 24V Normal: For standard 24-volt lead-acid batteries (Wet, Gel, AGM).
- 24V Cold/AGM: For charging 24-volt AGM batteries or charging in cold conditions.
- 12V Lithium: Specifically designed for 12-volt lithium-ion batteries with an internal Battery Management System (BMS).
- Repair Mode: An advanced battery recovery mode used to repair damaged batteries and reverse the effects of sulfation when batteries have been left uncharged for extended periods.
- Supply Mode: Converts the charger into a 5-amp constant-current, constant-voltage DC power supply. This is useful for maintaining onboard computer memory during battery changes or as a general DC power source.
The charger's intuitive LED indicators provide real-time feedback on the charging status and any diagnostic information. The G7200 can remain connected to the battery indefinitely without risk of overcharging, making it ideal for long-term maintenance.
Image 4.1: The NOCO Genius G7200 connected to a battery within an engine compartment, illustrating its use as a battery maintainer.
Image 4.2: A composite image showing the NOCO Genius G7200 in different environments, emphasizing its ability to be left connected year-round without overcharging, even in extreme temperatures.
Image 4.3: An informational graphic detailing approximate charge times for different vehicle battery capacities and listing compatible battery types: 12V & 24V Lead Acid (Wet, Gel, AGM) and Lithium (Li-ion).
5. Maintenance
To ensure optimal performance and longevity of your G7200 charger:
- Keep the charger clean and free from dirt and debris.
- Inspect cables and connections regularly for any signs of damage or wear.
- Store the charger in a dry, cool environment when not in use.
- The G7200 is IP65 rated, meaning it is protected against dust and low-pressure water jets, but it should not be submerged.
6. Troubleshooting
If you encounter issues with your G7200 charger, consider the following:
- Charger Not Turning On: Ensure the AC power cord is securely plugged into a live electrical outlet. Check for power at the outlet. Verify that the charger's connection to the battery is correct (positive to positive, negative to negative).
- No Lights or Indicators: If no LEDs illuminate after connecting to power and battery, double-check all connections. If the issue persists, the unit may require service.
- Error Indicators: Refer to the specific LED error codes in the detailed user manual for diagnostic information. Common errors include reverse polarity, short circuit, or an unchargeable battery.
- Battery Not Charging: Confirm the correct charging mode is selected for your battery type and voltage. Ensure the battery is not severely damaged or beyond recovery.
7. Specifications
| Brand | NOCO |
| Model | G7200 |
| Amperage | 7.2 Amps |
| Voltage | 12V / 24V |
| Output Voltage | 24 Volts (DC) |
| Compatible Battery Types | Lead-Acid (Wet, Gel, AGM), Lithium-Ion |
| Max Battery Capacity | 230 Ah |
| Item Weight | 1 Pound |
| Product Dimensions | 11.5 x 13 x 3.5 inches |
| Ingress Protection (IP) Rating | IP65 (Dust tight, protected against low-pressure water jets) |
8. Warranty and Support
The NOCO Genius G7200 Battery Charger and Maintainer comes with a 5-year limited warranty. For detailed warranty information, product support, or to inquire about replacement parts, please refer to the included User Guide & Warranty Information document or visit the official NOCO website.

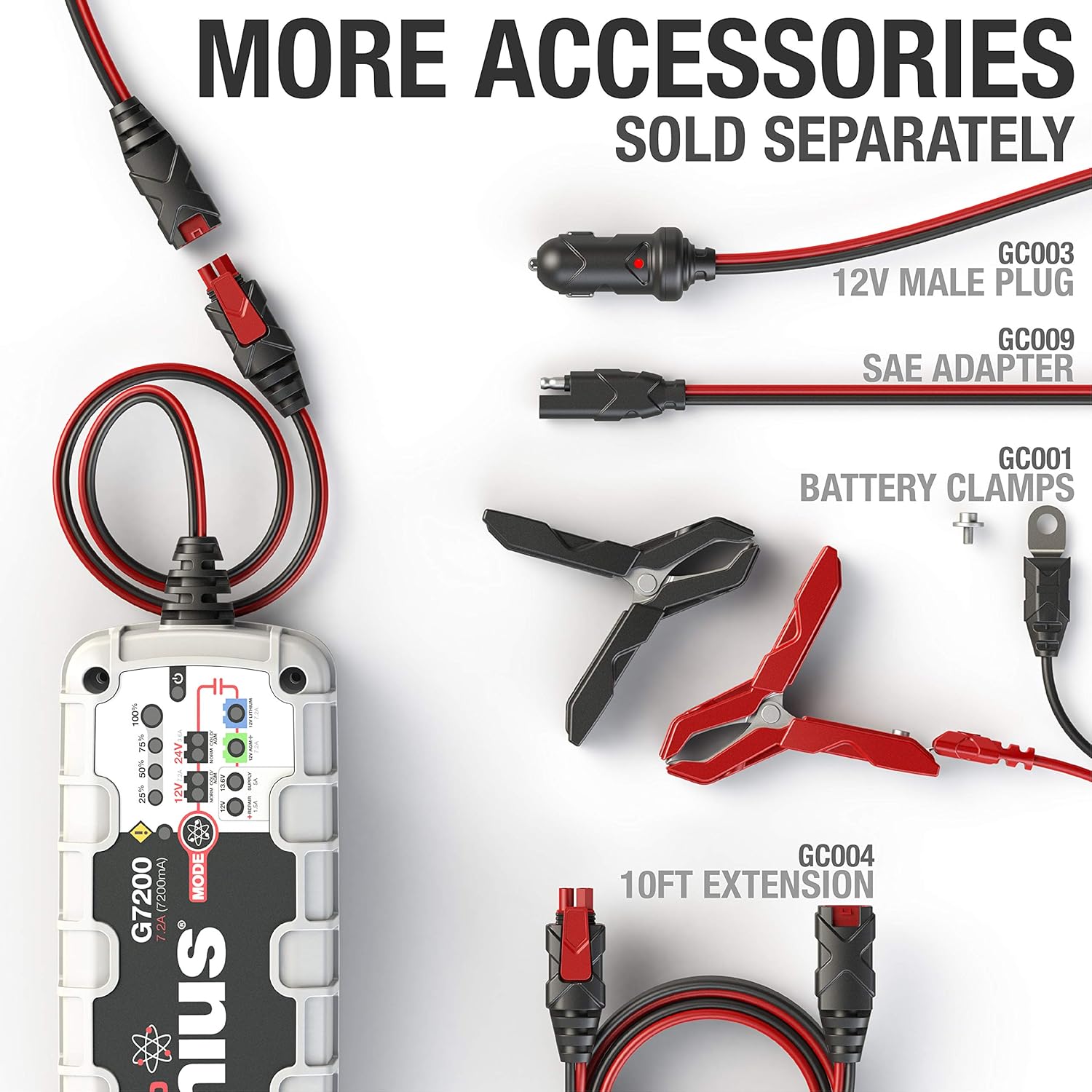

Image 8.1: A display of various optional accessories available for the NOCO Genius G7200, such as the GC003 12V Male Plug, GC009 SAE Adapter, GC001 Battery Clamps, and GC004 10FT Extension cable, which are sold separately.
