Introduction
This instruction manual provides essential information for the safe and effective use of your Steinel 07062 Reducer Nozzle. Please read this manual thoroughly before initial use and retain it for future reference. This nozzle is designed to concentrate the heat output from compatible heat guns for precise applications.
Product Overview
The Steinel 07062 Reducer Nozzle is an accessory designed to narrow the airflow from a heat gun, allowing for more focused heat application. This is particularly useful for tasks requiring precision, such as soldering, shrinking heat-shrink tubing, or localized paint stripping.

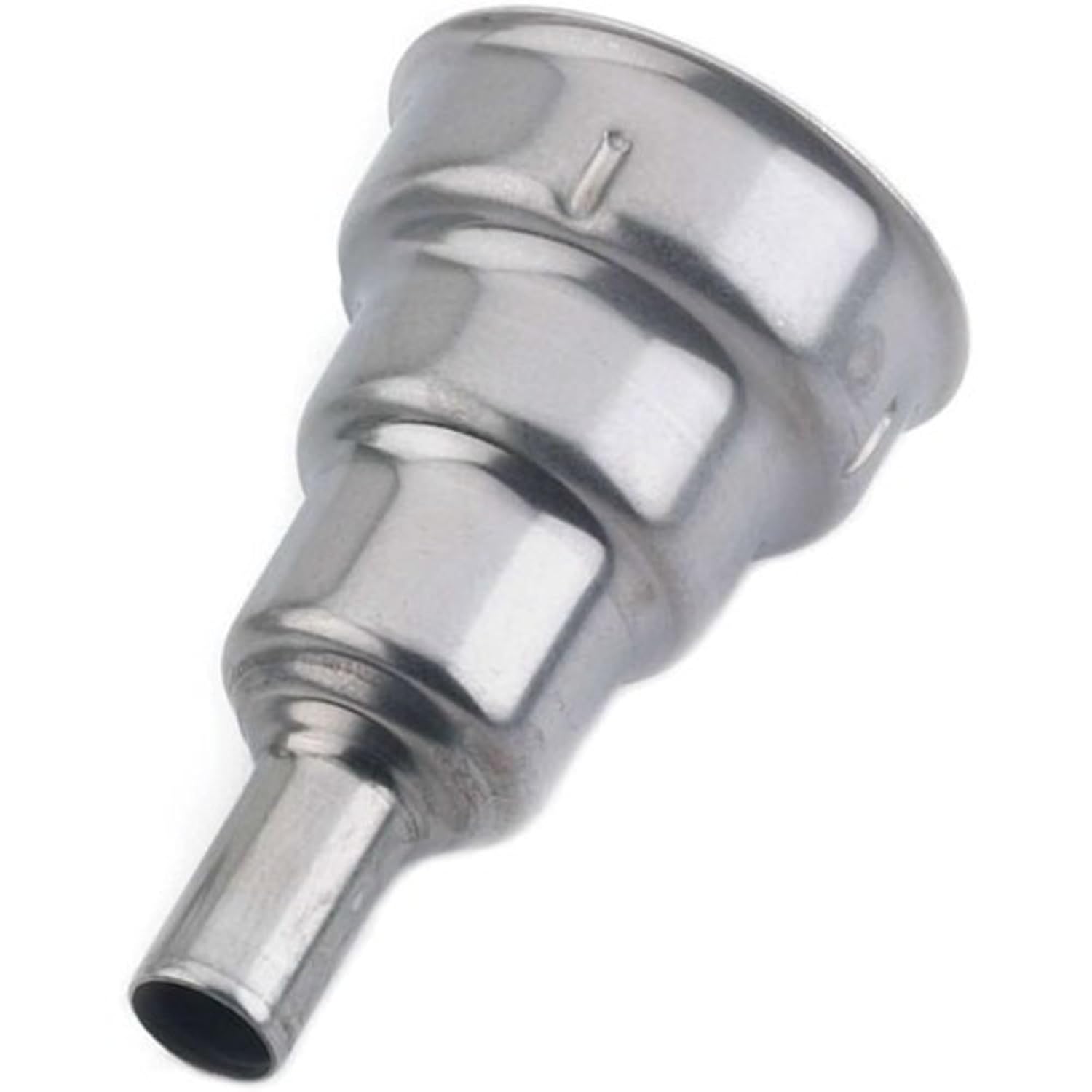

This image displays the Steinel 07062 Reducer Nozzle. It is a silver-colored, metallic accessory with a wider opening at one end and a narrower, cylindrical opening at the other, designed to concentrate airflow from a heat tool.
Setup
- Ensure Compatibility: Verify that the Steinel 07062 Reducer Nozzle is compatible with your specific Steinel heat gun model. Refer to your heat gun's manual for accessory compatibility.
- Power Off and Cool Down: Always ensure your heat gun is unplugged and completely cooled down before attaching or removing any accessories.
- Attach the Nozzle: Carefully slide the wider end of the reducer nozzle onto the outlet of your heat gun. Ensure it fits snugly and securely. Do not force the nozzle if it does not fit easily.
- Inspect Connection: After attachment, gently tug on the nozzle to confirm it is firmly seated and will not detach during operation.
Operating Instructions
Once the reducer nozzle is securely attached, you can proceed with your heat application task. Always follow the safety guidelines provided with your heat gun.
- Power On: Plug in your heat gun and turn it on to the desired heat and airflow setting.
- Direct Heat: Point the narrow end of the reducer nozzle directly at the area requiring heat. The concentrated airflow will increase the temperature at the target spot.
- Maintain Distance: Keep a safe and appropriate distance between the nozzle and the workpiece to prevent overheating or damage. Adjust distance based on material and desired effect.
- Monitor Workpiece: Continuously observe the workpiece to avoid scorching, melting, or other unintended effects.
- Power Off: After use, turn off the heat gun and allow it to cool completely before handling the nozzle or storing the tool.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your reducer nozzle.
- Cleaning: After the nozzle has completely cooled, wipe its exterior with a clean, dry cloth to remove any dust or residue.
- Inspect for Damage: Regularly inspect the nozzle for any signs of damage, such as dents, cracks, or deformation. A damaged nozzle may affect performance or safety.
- Storage: Store the nozzle in a clean, dry place, away from extreme temperatures and corrosive materials.
- Do Not Obstruct: Ensure the nozzle openings remain clear of any obstructions. Do not attempt to clean the interior with sharp objects.
Troubleshooting
If you encounter issues while using the Steinel 07062 Reducer Nozzle, consider the following:
| Problem | Possible Cause / Solution |
|---|---|
| Nozzle does not fit securely on heat gun. |
|
| Heat concentration is not effective. |
|
Specifications
| Attribute | Detail |
|---|---|
| Brand | Steinel |
| Model Number | 07062 |
| Product Dimensions | Approximately 2 x 2 x 3 inches |
| Item Weight | Approximately 8 ounces |
| Material | Metallic (typically steel or similar heat-resistant alloy) |
Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts for your Steinel 07062 Reducer Nozzle, please refer to the documentation provided with your original heat gun or visit the official Steinel website. You may also contact Steinel customer service directly for assistance.
Steinel Customer Service: Please refer to your product packaging or the official Steinel website for current contact information.
