1. Introduction
The NESCO Jet Stream Oven 2000 (JS-2000) is a high-speed hot-air convection oven designed for efficient and versatile cooking. This appliance utilizes "Cyclonic Cooking" action to circulate hot air, providing a quick and convenient method for preparing various foods. It is suitable for roasting, broiling, grilling, baking, and frying, offering an alternative to traditional ovens and microwaves with improved cooking results.
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Jet Stream Oven 2000. Please read all instructions carefully before first use and retain this manual for future reference.
2. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Components and Features
The NESCO Jet Stream Oven 2000 consists of several key components designed for optimal cooking performance.
- Lid Assembly: Contains the heating element, fan, and control panel.
- Control Panel: Features a temperature dial and a timer dial for precise cooking.
- Cooking Bowl: The main cooking vessel where food is placed.
- Cooking Rack/Basket: Used to elevate food for even cooking and air circulation.
- Base: Supports the cooking bowl and lid assembly.

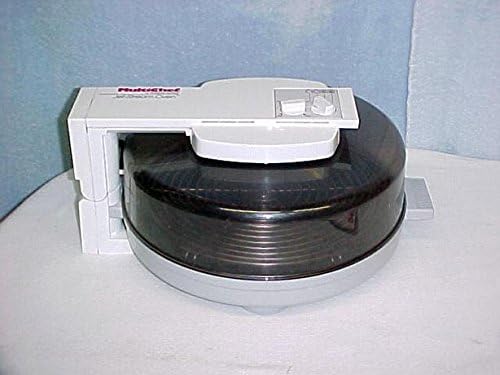

Figure 3.1: The NESCO Jet Stream Oven 2000 in its closed position, showing the main unit with the control panel on top.

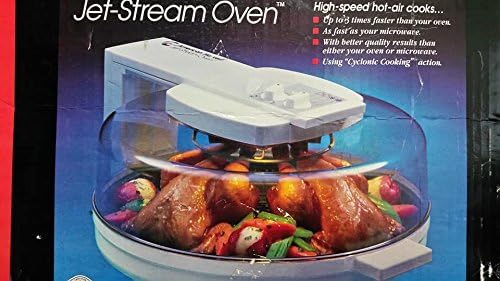

Figure 3.2: The NESCO Jet Stream Oven 2000 with the lid raised, revealing food cooking on a rack within the transparent bowl. This illustrates the appliance's operational state.
The oven is designed for smokeless cooking, preventing grease from contacting the heating element. It also promotes non-carcinogenic cooking by not allowing foods to cook in their own grease. The unit is lightweight and features a timer function for convenience.
4. Setup
- Unpacking: Carefully remove all packaging materials from the oven. Inspect the appliance for any damage. Do not discard packaging until you are satisfied with the product.
- Placement: Place the Jet Stream Oven on a stable, heat-resistant, and level surface. Ensure there is adequate clearance around the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.
- Initial Cleaning: Before first use, wipe the interior of the cooking bowl and the cooking rack with a damp cloth. Wash the cooking rack and bowl in warm, soapy water, rinse thoroughly, and dry completely. The lid assembly should only be wiped clean with a damp cloth; do not immerse it in water.
- Power Connection: Ensure the appliance is unplugged during setup. Once cleaned and assembled, plug the power cord into a standard electrical outlet.
5. Operating Instructions
The Jet Stream Oven 2000 is designed for ease of use. Follow these steps for general operation:
- Prepare Food: Place your food directly on the cooking rack within the cooking bowl. Ensure food is arranged to allow for even air circulation.
- Close Lid: Carefully lower the lid assembly onto the cooking bowl, ensuring it is securely seated.
- Set Temperature: Turn the temperature dial to your desired cooking temperature. The oven can reach 350°F in approximately 2 minutes.
- Set Timer: Turn the timer dial to the desired cooking time. The oven will begin heating once the timer is set. The appliance will automatically shut off when the timer reaches zero.
- Monitor Cooking: The transparent cooking bowl allows you to monitor the cooking process without opening the lid, which helps maintain consistent temperature.
- Remove Food: Once cooking is complete and the timer has sounded, carefully lift the lid assembly. Use oven mitts or heat-resistant gloves to remove the cooking rack and food. Be aware of hot steam.
The Jet Stream Oven cooks food on both sides simultaneously, eliminating the need for turning in most cases. It is energy efficient and designed to seal in juices, preventing food from drying out.
Figure 5.1: Packaging illustration showcasing the versatile cooking capabilities of the Jet Stream Oven, including roasting, broiling, grilling, baking, and frying.
Figure 5.2: Packaging detail emphasizing the oven's benefits such as smokeless cooking, non-carcinogenic cooking, and quick preparation times, along with an internal view of food cooking.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your NESCO Jet Stream Oven 2000.
- Always Unplug: Before cleaning, ensure the appliance is unplugged from the electrical outlet and has cooled down completely.
- Cooking Bowl and Rack: The cooking bowl and rack are dishwasher safe or can be washed by hand in warm, soapy water. Rinse thoroughly and dry completely before storage or next use.
- Lid Assembly: The lid assembly contains electrical components and should never be immersed in water or any other liquid. Wipe the exterior and interior surfaces of the lid with a damp cloth. For stubborn food residue, use a mild detergent on the cloth, then wipe with a clean damp cloth to remove any soap residue. Dry thoroughly.
- Exterior: Wipe the exterior of the base and lid with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
- Storage: Store the clean and dry appliance in a cool, dry place.
7. Troubleshooting
If you encounter issues with your Jet Stream Oven 2000, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction; timer not set. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. Ensure the timer dial is set to a cooking duration. |
| Food not cooking evenly. | Overcrowding of food; improper placement on rack. | Do not overcrowd the cooking bowl. Arrange food in a single layer or with sufficient space for air circulation. Ensure the cooking rack is properly positioned. |
| Smoke or unusual odor during cooking. | Food residue on heating element; excessive grease. | Unplug the unit and allow it to cool. Clean the heating element area carefully with a damp cloth. Ensure the cooking bowl and rack are clean before use. Trim excess fat from food. |
If the problem persists after attempting these solutions, please contact NESCO customer support.
8. Specifications
- Model: JS-2000
- Brand: NESCO
- Manufacturer: American Harvest
- Heating Method: Convection
- Material: Plastic
- Color: White
- Features: Lightweight, Timer Function Available
- UPC: 029517101918
9. Warranty and Support
NESCO products are manufactured to high-quality standards. For information regarding warranty coverage, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official NESCO website. Please have your model number (JS-2000) and purchase date available when contacting support.
