DIRECTV H23-600 HD Receiver HDMI

Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your DIRECTV H23-600 HD Receiver. Please read this manual thoroughly before using your receiver to ensure proper functionality and to maximize your viewing experience.

The DIRECTV H23-600 is an advanced HD receiver designed to deliver high-definition satellite television. It features MPEG-4 format compatibility and supports multiple screen format resolutions, providing a clear and vibrant picture.

1. Setup

1.1 Unpacking and Placement

Carefully remove the receiver and all accessories from the packaging. Place the receiver on a flat, stable surface with adequate ventilation. Ensure there is sufficient space around the unit for airflow to prevent overheating.

1.2 Connecting Your Receiver

Follow these steps to connect your DIRECTV H23-600 receiver to your television and satellite dish.

1. Connect to TV: Use an HDMI cable to connect the HDMI OUT port on the receiver to an available HDMI IN port on your television. For older TVs, component video (red, green, blue) and audio (red, white) cables can be used.
2. Connect to Satellite Dish: Connect the coaxial cable from your DIRECTV satellite dish to the SATELLITE IN port on the back of the receiver.
3. Connect Power: Plug the power cord into the DC IN port on the receiver, then plug the other end into a standard electrical outlet.
4. Initial Power On: Turn on your television and select the correct HDMI input. Then, press the POWER button on the front of the receiver or on the remote control.

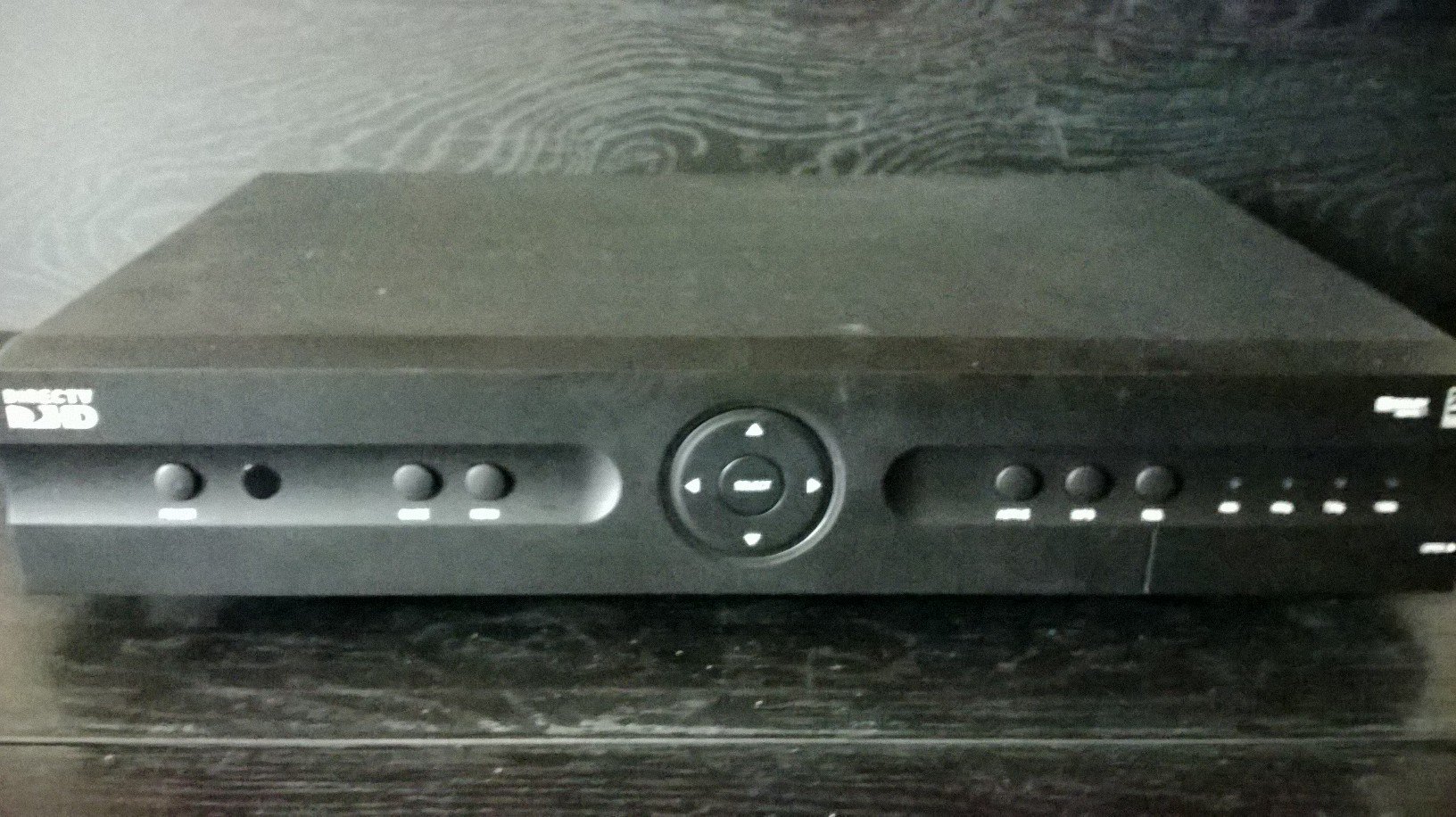

Figure 1: Front view of the DIRECTV H23-600 HD Receiver, showing the power button, navigation controls, and indicator lights.

Figure 2: Rear view of the DIRECTV H23-600 HD Receiver, highlighting the HDMI, satellite in, component video, audio, and power ports.

2. Operating Your Receiver

2.1 Basic Functions

• Power On/Off: Press the POWER button on the remote or the front panel to turn the receiver on or off.
• Channel Navigation: Use the CHANNEL UP/DOWN buttons to change channels. You can also enter channel numbers directly using the numeric keypad on your remote.
• Volume Control: Use the VOLUME UP/DOWN buttons on your TV remote (or the DIRECTV remote if programmed) to adjust audio levels.
• Guide: Press the GUIDE button to access the on-screen program guide.
• Menu: Press the MENU button to access system settings, preferences, and other features.

2.2 Advanced Features

The H23-600 receiver supports MPEG-4 format compatibility, ensuring high-quality video and audio for compatible broadcasts. Explore the menu options to customize your viewing experience, set parental controls, and manage your favorite channels.

3. Maintenance

Proper maintenance ensures the longevity and optimal performance of your DIRECTV H23-600 receiver.

• Cleaning: Use a soft, dry cloth to clean the exterior of the receiver. Do not use liquid cleaners or abrasive materials.
• Ventilation: Ensure that the ventilation slots on the receiver are not blocked. Do not place the receiver in an enclosed cabinet without proper airflow.
• Power Cycle: If the receiver becomes unresponsive, try unplugging it from the power outlet for 15 seconds, then plug it back in. This can resolve minor software glitches.

Figure 3: Bottom view of the DIRECTV H23-600 HD Receiver, illustrating the ventilation grilles crucial for heat dissipation.

4. Troubleshooting

If you encounter issues with your receiver, refer to the following common problems and solutions:

5. Specifications

6. Warranty and Support

6.1 Warranty Information

For specific warranty details regarding your DIRECTV H23-600 receiver, please refer to the documentation provided at the time of purchase or contact DIRECTV customer service. Warranty terms typically cover defects in materials and workmanship under normal use.

6.2 Customer Support

If you require further assistance, technical support, or have questions not covered in this manual, please contact DIRECTV customer support. You can find contact information on the official DIRECTV website or on your service agreement.

Note: Activation of DIRECTV equipment requires a base programming package subscription. Please refer to your service agreement for activation terms and conditions.
