Product Overview
The Brizo R60000-UNWS MultiChoice Universal Tub and Shower Valve Body is a foundational component for your tub and shower system. Designed for versatility, this valve body is compatible with MultiChoice Universal single or dual function trim kits, allowing for flexible installation and future upgrades. It features a durable forged brass body, ensuring long-lasting performance and reliability in plumbing applications.

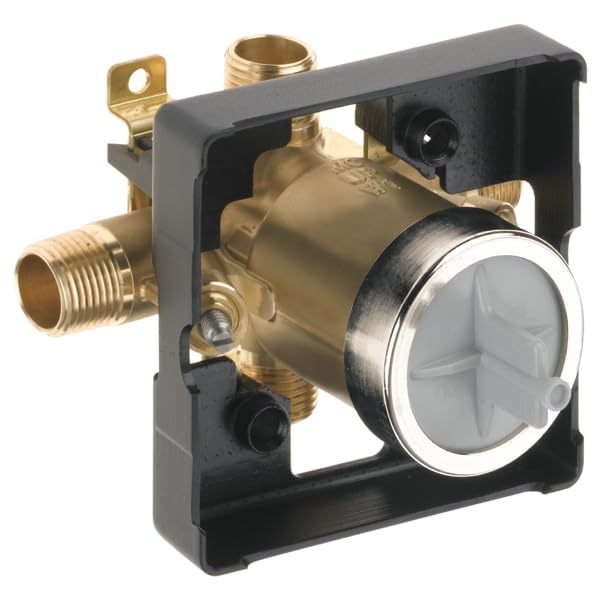

Image: Brizo R60000-UNWS MultiChoice Universal Tub and Shower Valve Body. This image displays the brass valve body with its black mounting frame and a grey protective cap over the cartridge opening.
Key Features:
- Forged Brass Body: Ensures durability and resistance to corrosion.
- Back-to-Back Installation Capabilities: Provides flexibility for various plumbing configurations.
- Square Plasterguard: Facilitates precise right-angle cuts during installation.
- Thin Wall Mounting: Adaptable for installations in walls with limited depth.
- MultiChoice Universal Compatibility: Designed for use with MultiChoice Universal single or dual function trim kits.
Setup and Installation
Proper installation of the Brizo R60000-UNWS valve body is crucial for optimal performance and to prevent leaks. It is recommended that installation be performed by a qualified plumber in accordance with local plumbing codes.
Before You Begin:
- Ensure all necessary tools and materials are available.
- Turn off the main water supply to the installation area.
- Review the complete installation instructions provided with your specific trim kit, as this valve body is designed to work with various trim options.
Installation Steps (General Guidelines):
- Mounting the Valve Body: Securely mount the valve body to the framing using appropriate fasteners. Ensure the valve is level and at the correct depth relative to the finished wall surface. The square plasterguard assists in achieving proper depth.
- Connecting Water Lines: Connect the hot and cold water supply lines to the designated inlets on the valve body. Use appropriate plumbing connections (e.g., sweat, threaded, PEX) as required by your system. Ensure all connections are watertight.
- Connecting Outlet Lines: Connect the outlet lines to the showerhead and/or tub spout. Verify that the connections are secure and free of leaks.
- Testing for Leaks: Before closing the wall, turn on the main water supply and carefully inspect all connections for any signs of leaks. Address any leaks immediately.
- Installing Trim Kit: Once the valve body is securely installed and tested, proceed with the installation of your chosen MultiChoice Universal trim kit according to its specific instructions.
Operating Instructions
The Brizo R60000-UNWS valve body itself does not have direct user-facing operating controls. Its function is to regulate water flow and temperature in conjunction with a compatible MultiChoice Universal trim kit. Refer to the operating instructions provided with your specific trim kit for details on how to control water flow, temperature, and diverter functions (if applicable).
Generally, operation involves:
- Temperature Control: Adjusting the handle on the trim kit to achieve the desired water temperature.
- Flow Control: Turning the handle to initiate or stop water flow.
- Diverter Function (if applicable): Engaging the diverter to switch water flow between the tub spout and showerhead.
Maintenance
The Brizo R60000-UNWS valve body is designed for long-term, low-maintenance operation. Regular maintenance primarily involves ensuring the integrity of the plumbing connections and the proper functioning of the associated trim kit.
General Maintenance Tips:
- Leak Inspection: Periodically check for any signs of water leaks around the valve body connections, especially during routine plumbing inspections.
- Cartridge Replacement: The internal cartridge (part of the trim kit, not the valve body itself) may require replacement over time if water flow or temperature control issues arise. Refer to your trim kit's manual for cartridge replacement procedures.
- Cleaning: Keep the visible parts of your shower/tub system clean using mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage finishes.
Troubleshooting
Most issues related to water flow or temperature control are typically associated with the trim kit's cartridge or external components rather than the valve body itself. However, here are some general troubleshooting steps.
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow or low water pressure. |
|
|
| Water temperature is inconsistent or incorrect. |
|
|
| Leaking from the valve body or connections. |
|
|
If troubleshooting steps do not resolve the issue, contact Brizo customer support or a qualified plumbing professional.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | R60000-UNWS |
| Brand | Brizo |
| Material | Forged Brass |
| Valve Type | Thermostatic (compatible with thermostatic trim kits) |
| Product Dimensions (L x W x H) | 4.5 x 5.75 x 4.5 inches |
| Item Weight | 1.56 pounds |
| Outlet Connection Type | Flare, Compression, Flange, FIP, PEX, BSPT, G Connector, SAE, Barb, NPS, MNPT, FNPT, Sweat |
| Number of Ports | 2 |
| Specification Met | NSF |
| UPC | 034449569309 |
Warranty Information
Brizo products are manufactured to the highest quality standards and are backed by a comprehensive warranty. For specific warranty details pertaining to the R60000-UNWS MultiChoice Universal Tub and Shower Valve Body, please refer to the official Brizo warranty documentation included with your purchase or visit the official Brizo website. Generally, Brizo offers a limited lifetime warranty on parts and finish to the original consumer purchaser.
Note: Warranty terms may vary by region and product. Always consult the most current warranty information from the manufacturer.
Customer Support
For technical assistance, replacement parts, or further inquiries regarding your Brizo R60000-UNWS valve body, please contact Brizo customer support.
- Brizo Official Website: www.brizo.com (for product information, FAQs, and contact details)
- Phone Support: Refer to the Brizo website for the most current customer service phone numbers.
- Professional Assistance: It is recommended to consult a certified plumbing professional for installation or complex troubleshooting.
