Viqua 602805 Replacement UV Lamp Instruction Manual

1. Product Overview

The Viqua 602805 is a genuine OEM replacement UV lamp designed for use with Viqua D4, D4+, and Premium Ultraviolet Water Treatment Filtration Systems. This lamp is crucial for maintaining the effectiveness of your UV water treatment system by providing the necessary UV-C light to inactivate microorganisms in water. Regular replacement ensures continuous, reliable water disinfection.

Key features include:

• Genuine OEM replacement part for guaranteed compatibility and performance.
• Designed for annual replacement to ensure optimal UV light intensity for water treatment.
• Long-lasting operation with a typical lamp life of 9,000 hours (approximately 1 year).
• Compatible with Viqua UV systems including D, D4, D4+, D4-V, C, C4, and IHS22-D4.

Image: The Viqua 602805 UV replacement lamp, showing its clear glass tube and black connector base.

2. Specifications

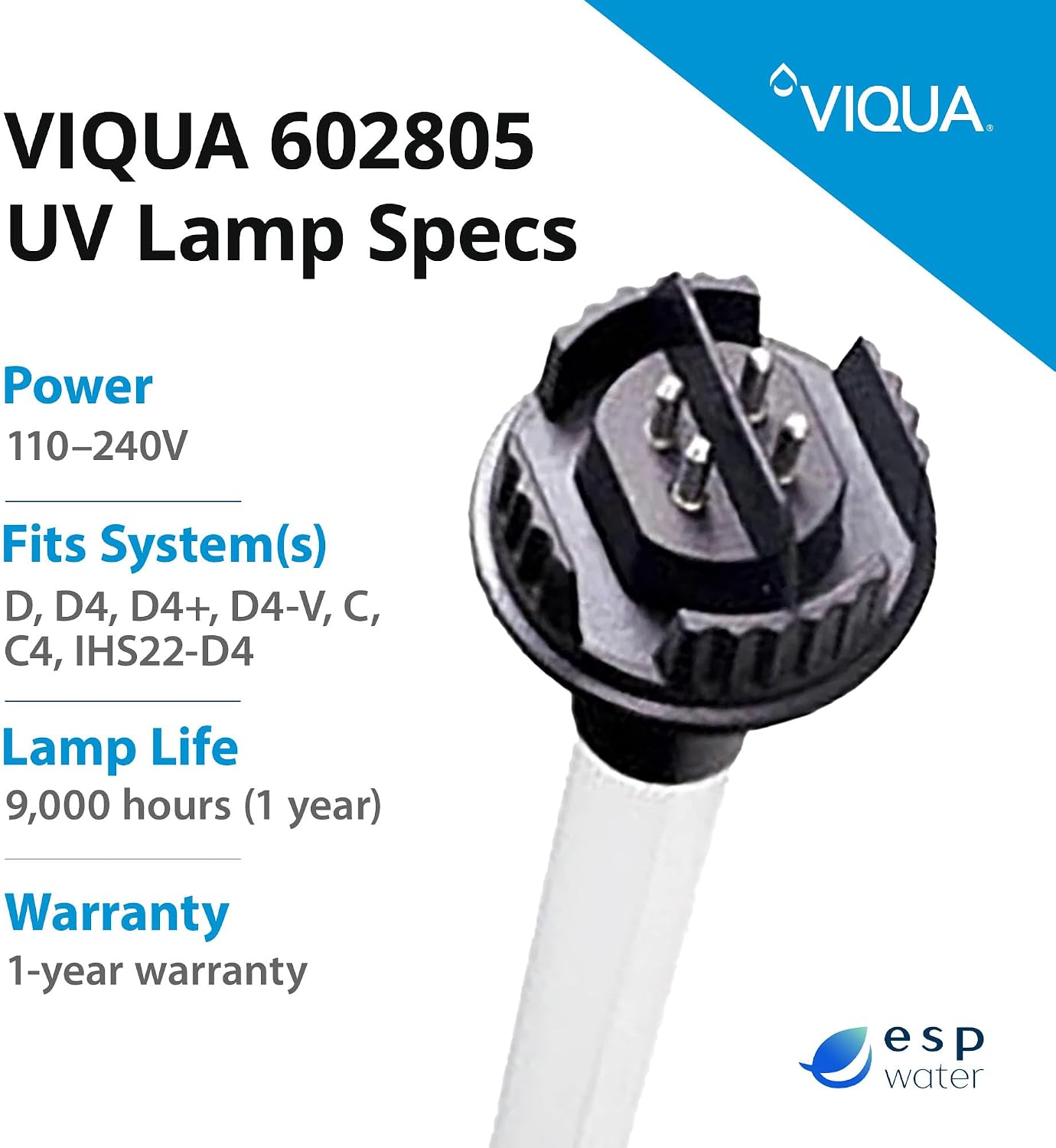

Image: Detailed specifications for the Viqua 602805 UV lamp, including power, compatible systems, lamp life, and warranty.

3. Installation Instructions

Follow these steps carefully to replace the UV lamp in your Viqua UV water treatment system. Always prioritize safety during installation.

Safety Precautions:

• Disconnect Power: Always unplug the UV system from the electrical outlet before performing any maintenance.
• Avoid Direct UV Exposure: Do not look directly at the illuminated UV lamp, as UV-C light can cause eye and skin damage.
• Handle with Care: UV lamps are made of glass and contain mercury. Handle them carefully and dispose of old lamps according to local regulations.
• Wear Gloves: Use clean cotton gloves when handling the new lamp to prevent fingerprints and oils from affecting its performance.

Replacement Procedure:

1. Shut Off Water Supply: Close the water inlet and outlet valves to the UV system.
2. Drain System (Optional): If necessary, drain the UV chamber to prevent water spillage.
3. Disconnect Power: Unplug the UV system from the electrical outlet.
4. Remove Old Lamp Connector: Carefully twist and pull the lamp connector away from the end of the UV chamber.
5. Remove Old Lamp: Gently pull the old UV lamp straight out of the chamber. It may be warm.
6. Inspect Quartz Sleeve: While the lamp is out, inspect the quartz sleeve for any cracks or buildup. Clean the quartz sleeve if necessary (refer to Maintenance section). Replace if damaged.
7. Insert New Lamp: With clean cotton gloves, carefully insert the new Viqua 602805 UV lamp into the quartz sleeve until it is fully seated. Do not force it.
8. Reconnect Lamp Connector: Align the pins of the new lamp with the lamp connector and push it firmly into place. Ensure a secure connection.
9. Restore Water Flow: Slowly open the water inlet and outlet valves to the UV system. Check for leaks.
10. Restore Power: Plug the UV system back into the electrical outlet. The system should power on, and the indicator light should confirm proper operation.
11. Reset Lamp Timer: If your system has a lamp replacement timer, reset it according to your system's specific instructions.

Image: Diagram showing the compatibility of the Viqua 602805 lamp with various Viqua UV system models (D, D4, D4+, D4-V, C, C4, IHS22-D4).

4. Operation

Once installed, the Viqua 602805 UV lamp operates continuously within your UV water treatment system. The lamp emits UV-C light at a specific wavelength (254 nm) that targets and inactivates bacteria, viruses, and other microorganisms present in the water as it flows through the UV chamber.

For effective disinfection, the UV system should remain powered on at all times. Interruption of power will temporarily cease disinfection. The system's controller typically provides visual or audible indicators of lamp operation and when a lamp replacement is due.

Image: Infographic illustrating the process of UV water treatment: water enters the system, is exposed to UV light, and treated water enters the home.

The effectiveness of UV disinfection relies on the intensity of the UV light. Over time, the UV output of the lamp diminishes, even if it still appears to be glowing. Therefore, annual replacement is critical to ensure your water remains properly treated.

Image: Diagram highlighting the benefits of Viqua UV water treatment, including space efficiency, easy maintenance, and reliability.

5. Maintenance

Proper maintenance of your Viqua UV system, particularly the UV lamp and quartz sleeve, is essential for continuous and effective water disinfection.

Annual Lamp Replacement:

• The Viqua 602805 UV lamp has an effective life of 9,000 hours, which is approximately one year of continuous operation.
• After one year, the UV light output significantly weakens, reducing its ability to properly treat your water, even if the lamp still glows.
• Replace the lamp annually to ensure your system provides optimal disinfection performance. Refer to the Installation section for detailed replacement steps.

Quartz Sleeve Cleaning:

• The quartz sleeve protects the UV lamp from water. Over time, mineral deposits or sediment can accumulate on its surface, blocking the UV light from reaching the water.
• It is recommended to clean the quartz sleeve at least once a year, or more frequently if your water has high hardness or turbidity.
• To clean, remove the UV lamp (as per installation steps), then carefully slide the quartz sleeve out of the chamber.
• Clean the sleeve with a soft cloth and a mild acid cleaner (e.g., citric acid or vinegar) to remove any deposits. Rinse thoroughly with clean water before reinstallation.

Using Genuine Parts:

Always use genuine Viqua replacement lamps and parts. Non-genuine lamps may not meet the required specifications, leading to:

• Incorrect UV light dosage, compromising water disinfection.
• Risk of system damage due to improper fit or electrical incompatibility.
• Potential for overheating or melting.
• Voiding of your system's warranty.

Image: Warning graphic emphasizing the importance of using genuine Viqua lamps to avoid system damage, incorrect UV light dosage, voiding warranty, or melting from overheating.

6. Troubleshooting

If your Viqua UV system is not operating correctly after lamp replacement, consult the following troubleshooting guide:

For issues not covered here, or if problems persist, contact Viqua customer support or a qualified service technician.

7. Warranty and Support

Warranty Information:

The Viqua 602805 Replacement UV Lamp typically comes with a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Note that the warranty may be voided if non-genuine Viqua parts are used with the system or if the lamp is not installed and maintained according to the instructions provided.

Customer Support:

For technical assistance, warranty inquiries, or to purchase additional genuine Viqua replacement parts, please contact Viqua customer support. You can often find contact information on the Viqua official website or through your product retailer.

When contacting support, please have your product model number (602805) and the model number of your Viqua UV system readily available.
