Walker SoundFX 18906 Exhaust Muffler: Installation and Maintenance Guide

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Walker SoundFX 18906 Direct Fit Exhaust Muffler. Adhering to these instructions will help ensure optimal performance and longevity of the product. Please read this guide thoroughly before beginning any installation or maintenance procedures.

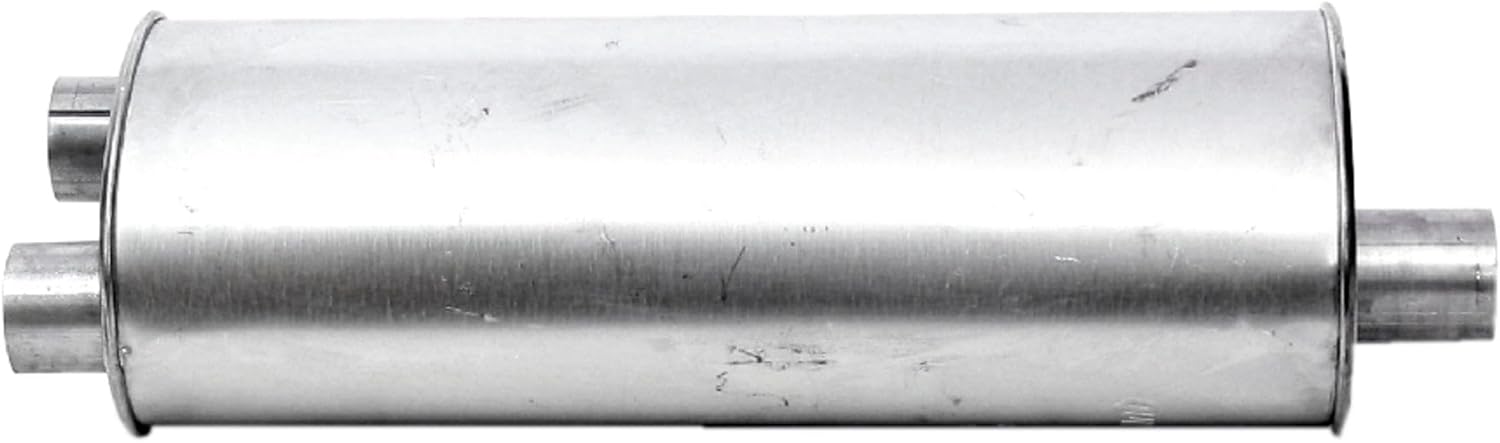

Image 1.1: The Walker SoundFX 18906 Direct Fit Exhaust Muffler.

2. Product Overview

The Walker SoundFX 18906 muffler is engineered for direct-fit replacement, offering a balance of durability and acoustic performance. Key features include:

• Aluminized Steel Construction: Provides extended service life compared to traditional low-carbon steel, enhancing resistance to corrosion.
• Internal Drainage System: Designed to inhibit internal corrosion, contributing to the muffler's lifespan.
• Mechanical Interior Joints: Allows for expansion and contraction during temperature fluctuations, minimizing distortion.
• Spun-Locked Heads and OE-Style Spot Welds: Ensures structural stability and durability under various operating conditions.
• Louvered Tubes: Engineered to reduce radiated noise, delivering a factory-style sound quality.

Image 2.1: Illustration of the muffler's aluminized steel construction and internal drainage system designed to resist corrosion.

Image 2.2: A cutaway view demonstrating the louvered tube design, which helps reduce radiated noise for a factory-style sound.

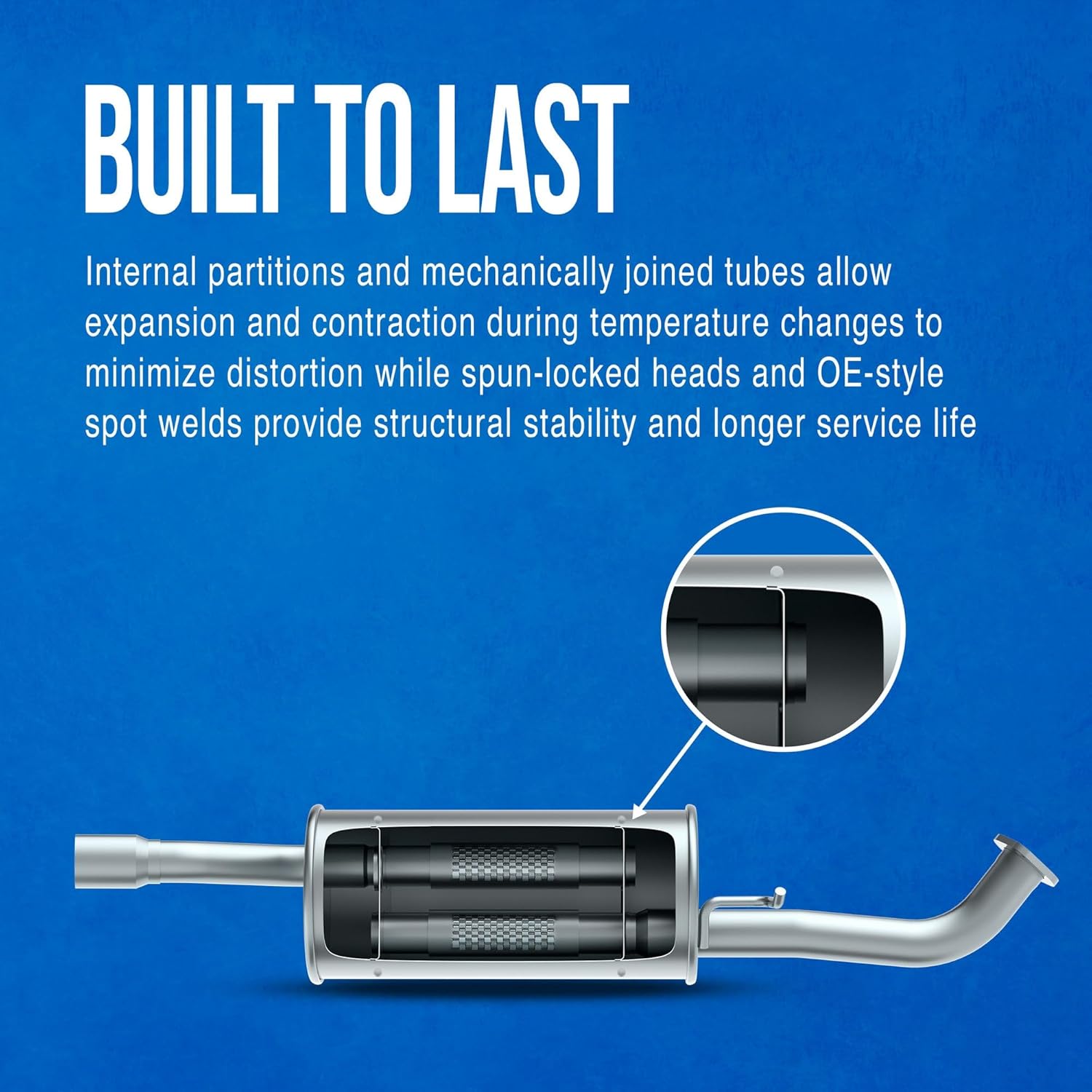

Image 2.3: An internal diagram highlighting the mechanically joined tubes and spun-locked heads, contributing to the muffler's durability.

3. Compatibility

The Walker SoundFX 18906 muffler is designed for specific vehicle applications. It is compatible with the following Chevrolet models:

• 1996-2000 Chevrolet C2500
• 1996-1999 Chevrolet C3500

Important: Before purchasing and installing, it is crucial to verify compatibility with your specific vehicle. Always enter your vehicle's year, make, model, engine, and trim information to ensure proper fitment. Refer to the manufacturer's official compatibility charts or consult a qualified automotive professional.

4. Setup and Installation

This muffler is designed as a direct-fit bolt-on replacement solution. It features OE-style hangers, brackets, and pipe routings to facilitate installation without requiring specialized fabrication or welding in most cases.

4.1 Pre-Installation Steps

1. Vehicle Preparation: Ensure the vehicle is safely lifted and supported on jack stands or a lift. Allow the exhaust system to cool completely before beginning work.
2. Safety First: Wear appropriate personal protective equipment, including safety glasses and gloves.
3. Inspect Existing System: Examine the current exhaust system for any damaged hangers, clamps, or pipes that may also require replacement.
4. Gather Tools: Have all necessary tools ready, including wrenches, sockets, penetrating oil, and a cutting tool if the old muffler needs to be removed by cutting.

4.2 Installation Procedure

1. Remove Old Muffler: Loosen clamps and disconnect hangers. If necessary, carefully cut the old muffler out of the exhaust system.
2. Position New Muffler: Align the Walker SoundFX 18906 muffler with the existing exhaust pipes. Ensure the inlet and outlet connections are correctly oriented.
3. Secure Connections: Use new exhaust clamps or weld connections as appropriate to secure the muffler to the exhaust pipes. Ensure all connections are tight to prevent leaks.
4. Attach Hangers: Reattach or replace any necessary hangers to support the muffler securely.
5. Final Inspection: Double-check all connections for tightness and ensure the muffler has adequate clearance from other vehicle components.

Image 4.1: The muffler's design with OE-style hangers and pipe routings for straightforward installation.

Image 4.2: Professional installation may involve welding for optimal fit and durability, though this muffler is designed for bolt-on replacement.

5. Operating Principles

The Walker SoundFX 18906 muffler functions by directing exhaust gases through a series of chambers and louvered tubes. This design effectively dissipates sound energy, reducing engine noise to a level comparable to original equipment specifications. The internal structure is built to withstand the high temperatures and vibrations inherent in an exhaust system, ensuring consistent performance over time.

6. Maintenance

The Walker SoundFX 18906 muffler is designed for durability and minimal maintenance. However, periodic inspection of the entire exhaust system can help extend its life and identify potential issues early.

• Regular Inspection: Annually inspect the muffler and entire exhaust system for signs of corrosion, cracks, loose connections, or damaged hangers.
• Check for Leaks: Listen for unusual exhaust sounds, which may indicate a leak. Leaks can be identified by visual inspection or by using a smoke test.
• Address Damage Promptly: Any signs of damage or excessive wear should be addressed by a qualified technician to prevent further deterioration of the exhaust system.

Image 6.1: The Walker SoundFX muffler is designed and tested to provide extended service life under various conditions.

7. Troubleshooting

If you encounter issues with your Walker SoundFX 18906 muffler, consider the following common troubleshooting steps:

• Excessive Noise: Check all connections for tightness. Ensure there are no exhaust leaks from the muffler or connecting pipes. Verify that hangers are intact and supporting the system correctly.
• Rattling Sounds: Inspect hangers and mounting points for looseness or damage. Ensure the muffler is not contacting other vehicle components.
• Fitment Issues: If the muffler does not align correctly, re-verify vehicle compatibility. Minor adjustments to pipe routing or hanger positions may be necessary. In some cases, professional modification might be required if the original system differs significantly from standard specifications.
• Exhaust Leaks: Visually inspect all welds and connections. Apply soapy water to suspected leak areas while the engine is running; bubbles will indicate a leak.

For persistent issues, it is recommended to consult a certified automotive technician.

8. Specifications

9. Warranty Information

Walker products are backed by a manufacturer's warranty. For specific details regarding the warranty period, coverage, and claims process for your SoundFX 18906 muffler, please refer to the official warranty documentation provided with your purchase or visit the Walker website. Keep your proof of purchase for warranty purposes.

10. Customer Support

For technical assistance, installation questions, or warranty inquiries, please contact Walker customer support. Contact information can typically be found on the product packaging or the official Walker brand website. When contacting support, please have your product model number (18906) and purchase details readily available.
