1. Introduction
This manual provides essential information for the safe and efficient operation of your Thomson RT202 AM/FM Radio. Please read these instructions thoroughly before using the device and retain them for future reference. This radio is designed for portable listening to AM and FM broadcasts.
2. Safety Information
- Do not expose the unit to rain or moisture to prevent fire or electric shock.
- Do not expose the unit to direct sunlight, extreme temperatures, or high humidity.
- Avoid placing the unit near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Use only specified batteries. Ensure correct polarity when inserting batteries.
- Do not mix old and new batteries, or different types of batteries.
- Remove batteries if the unit will not be used for an extended period.
- Clean only with a dry cloth.
- Do not attempt to disassemble or modify the unit. Refer all servicing to qualified service personnel.
3. Package Contents
Please check that all items are present:
- Thomson RT202 AM/FM Radio Unit
- User Manual (this document)
Note: Batteries are not included and must be purchased separately.
4. Product Overview
Familiarize yourself with the components of your Thomson RT202 radio.
Figure 1: Front view of the Thomson RT202 AM/FM Radio, showing the speaker grille, tuning dial, and frequency display.

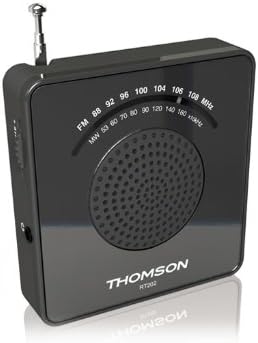

Figure 2: Angled view of the Thomson RT202 AM/FM Radio, illustrating the telescopic antenna, volume control, and headphone jack.
Key Components:
- Telescopic Antenna: For FM reception.
- Tuning Dial: To select radio frequencies.
- Frequency Display: Shows the selected AM/FM frequency.
- Volume Control: Adjusts the sound output level.
- Band Selector Switch: To switch between AM and FM bands.
- Headphone Jack: For private listening (3.5mm).
- Battery Compartment: Located on the back of the unit.
5. Setup
5.1 Battery Installation
- Locate the battery compartment cover on the back of the radio.
- Slide or lift the cover to open the compartment.
- Insert two (2) AAA batteries, ensuring the correct polarity (+ and -) as indicated inside the compartment.
- Replace the battery compartment cover securely.
Note: Always use fresh batteries for optimal performance.
6. Operating Instructions
6.1 Turning On/Off and Volume Control
- To turn on the radio, rotate the Volume Control knob clockwise. A click indicates the unit is powered on.
- Continue rotating the Volume Control knob to adjust the listening volume.
- To turn off the radio, rotate the Volume Control knob counter-clockwise until it clicks off.
6.2 Selecting a Radio Band (AM/FM)
- Locate the Band Selector Switch (usually on the side or top of the unit).
- Slide the switch to select either "AM" or "FM" band.
6.3 Tuning to a Station
- Once the radio is on and the desired band is selected, slowly rotate the Tuning Dial.
- Observe the Frequency Display to see the current frequency.
- Stop rotating when you hear a clear broadcast.
- For FM reception, extend and adjust the Telescopic Antenna for best signal.
- For AM reception, rotate the entire radio unit for optimal signal reception, as the AM antenna is internal.
6.4 Using Headphones
- Insert a 3.5mm stereo headphone jack into the Headphone Jack on the radio.
- The internal speaker will automatically mute when headphones are connected.
- Adjust the volume using the Volume Control knob.
7. Maintenance
7.1 Cleaning
- Always turn off the radio and remove batteries before cleaning.
- Wipe the exterior of the unit with a soft, dry cloth.
- Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
7.2 Storage
- If storing the radio for an extended period, remove the batteries to prevent leakage.
- Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound or very low volume. |
|
|
| Poor radio reception. |
|
|
| Radio does not turn on. |
|
|
9. Specifications
| Model: | RT202 |
| Brand: | THOMSON |
| Radio Bands: | AM/FM |
| Power Source: | 2 x AAA Batteries |
| Dimensions (approx.): | 15 x 8 x 4 cm (Length x Width x Depth) |
| Weight (approx.): | 100 g (without batteries) |
| Headphone Jack: | 3.5mm Stereo |
10. Warranty and Support
THOMSON products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official THOMSON website. Keep your proof of purchase for warranty claims.
For technical support or service inquiries, please contact your local THOMSON dealer or authorized service center. Do not attempt to repair the unit yourself.
