Instruction Manual for TAMIYA 1:35 German Armoured Combat Truck IV Version F L24/75 mm Model Kit

Introduction

This manual provides detailed instructions for the assembly, care, and maintenance of your TAMIYA 1:35 German Armoured Combat Truck IV Version F L24/75 mm model kit. This highly detailed plastic construction kit allows enthusiasts to build a faithful replica of the German Armoured Combat Truck IV.

Safety Information

Warning: This product contains small parts which may pose a choking hazard. Not suitable for children under 3 years. Recommended age for assembly is 14 years and up. Always use tools and adhesives in a well-ventilated area and follow their respective safety guidelines.

What's in the Box

Your TAMIYA 1:35 German Armoured Combat Truck IV model kit includes the following components:

• Assembly type tracks
• 3 figures (commander, gunner, loader)
• Engine deck hatch options
• Markings (decals)
• Full color painting guide
• Four-language background story

Please note: Tools, glue, and paints are not included with this plastic kit and must be purchased separately.

Assembly Instructions

The assembly of this high-quality Tamiya kit requires careful attention to detail. Follow the step-by-step illustrated assembly instructions provided in the box. Precise parts must be assembled according to these instructions.

Key Assembly Steps:

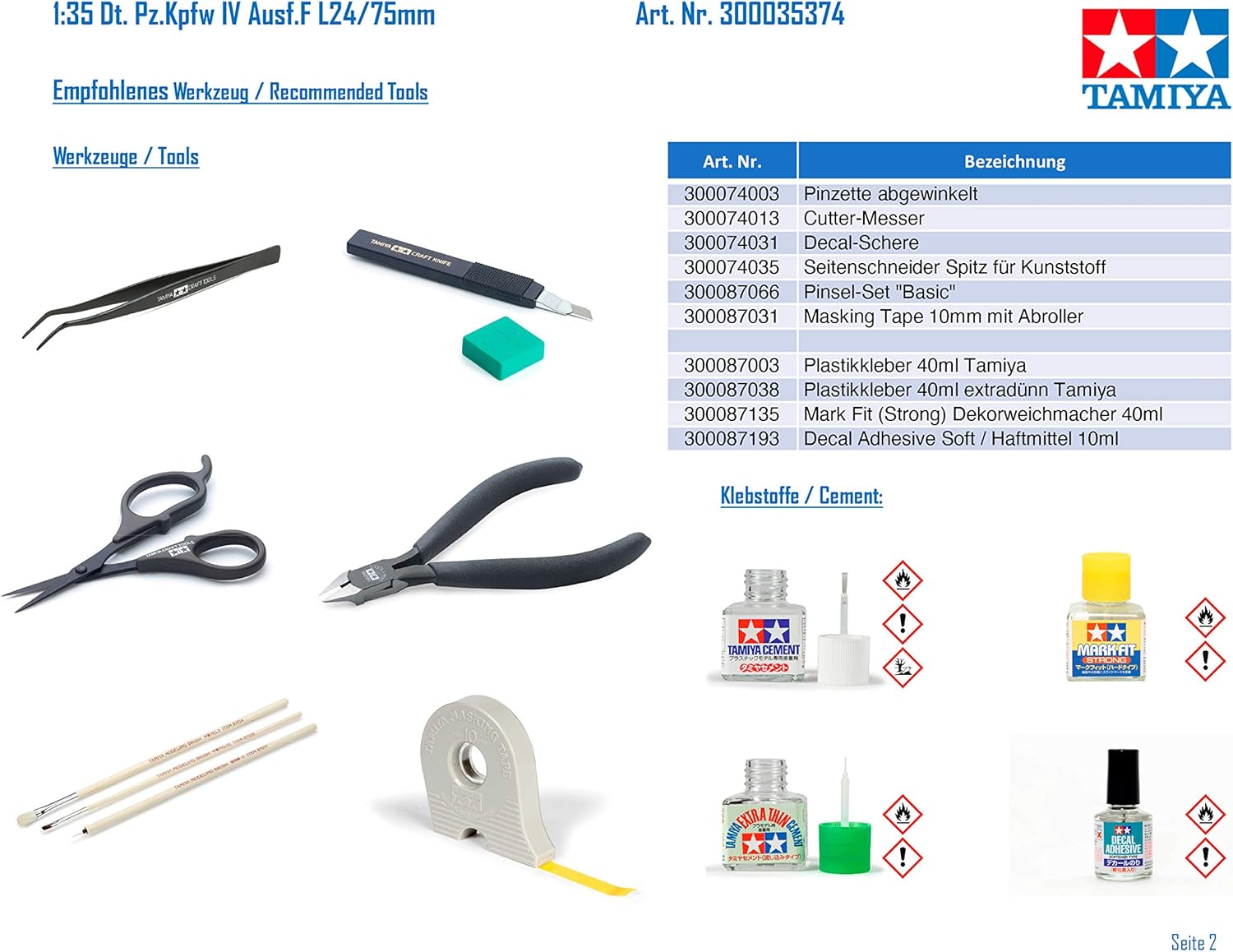

1. Preparation: Carefully remove parts from the sprues using a hobby knife or side cutters. Smooth any rough edges with sandpaper or a file.

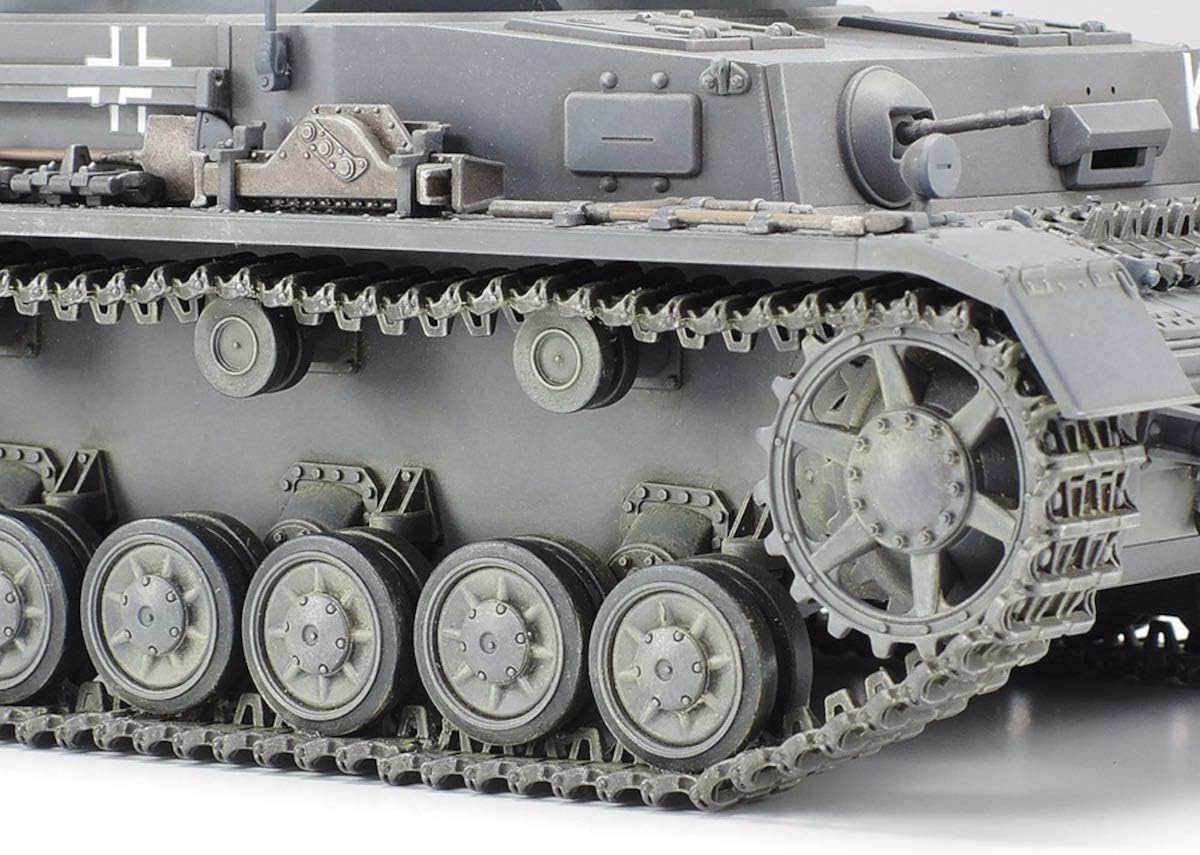

2. Sub-Assemblies: Begin by assembling smaller components such as the turret, chassis, and track sections. The tracks are assembly type, requiring individual links to be put together.
3. Main Assembly: Join the major sub-assemblies to form the complete vehicle. Ensure all parts align correctly before applying adhesive.
4. Detailing: Attach smaller details, tools, and accessories to the model.
5. Figures: Assemble the three included figures (commander, gunner, loader) and position them as desired.
6. Painting: Once assembly is complete, the model can be painted. Refer to the included full-color painting guide for suggested schemes or apply your own custom paint job.
7. Decals: Apply the provided markings (decals) using decal adhesive for a realistic finish.

Care and Maintenance

Once assembled, your model requires minimal maintenance to preserve its appearance. Keep the model in a clean, dust-free environment. Use a soft brush or compressed air to gently remove dust. Avoid direct sunlight and extreme temperatures, which can cause paint fading or material warping.

If parts become loose, re-apply a small amount of appropriate model adhesive. For painted surfaces, avoid harsh chemicals; use only mild, non-abrasive cleaners if necessary, testing on an inconspicuous area first.

Troubleshooting

• Parts not fitting: Ensure you are using the correct parts as indicated in the assembly instructions. Check for any excess plastic (flash) on the parts and carefully trim it away.
• Decals not adhering: Ensure the surface is clean and smooth. Use a decal setting solution to help the decal conform to irregular surfaces and adhere better.
• Paint issues: Ensure surfaces are clean and primed before painting. Apply paint in thin, even coats to avoid brush strokes or uneven texture. Allow sufficient drying time between coats.
• Missing parts: Double-check the sprues and packaging. If a part is genuinely missing, contact Tamiya customer support with your kit details.

Specifications

Warranty and Support

Tamiya model kits are known for their high quality and precision. For specific warranty information or support regarding missing or defective parts, please refer to the contact information provided by Tamiya in the kit packaging or visit the official Tamiya website. Keep your proof of purchase for any warranty claims.
