Duravit D-Code 033856-0HOLE 22-inch Rectangular Ceramic Undermount Bathroom Sink Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Duravit D-Code 033856-0HOLE 22-inch Rectangular Ceramic Undermount Bathroom Sink. The D-Code series is known for its universal shapes and proven durability, offering a practical and stylish solution for your bathroom.

Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.

Product Overview

The Duravit D-Code 033856-0HOLE is a 22-inch rectangular ceramic undermount bathroom sink designed for seamless integration into your countertop. It features an overflow to prevent accidental spills and is constructed from durable ceramic material. Mounting hardware is included for installation.

Image 1: Duravit D-Code 22-inch Rectangular Ceramic Undermount Bathroom Sink, showcasing its design and how it appears when installed in a bathroom setting. The sink is white ceramic, integrated into a light-colored countertop, with a chrome faucet and some toiletries visible.

Setup and Installation

The Duravit D-Code sink is designed for undermount installation. It is recommended that installation be performed by a qualified professional to ensure proper sealing and secure mounting.

Required Tools and Materials (Not Included):

• Sealant (silicone recommended)
• Drill (if cutting countertop or for faucet holes)
• Jigsaw or appropriate cutting tool for countertop (if not pre-cut)
• Measuring tape
• Pencil
• Safety glasses and gloves
• Faucet and drain assembly (sold separately)

Installation Steps:

1. Prepare Countertop: Ensure the countertop opening is correctly sized for the undermount sink. Refer to the sink's template (if provided) or specifications for precise dimensions.
2. Position Sink: Carefully position the sink upside down on a clean, padded surface. Apply a continuous bead of silicone sealant around the rim of the sink where it will meet the countertop.
3. Attach Mounting Hardware: Place the sink onto the underside of the countertop opening. Secure it using the included mounting clips and screws. Tighten the screws evenly until the sink is firmly pressed against the countertop, ensuring a watertight seal. Do not overtighten.
4. Install Faucet and Drain: Install your chosen faucet and drain assembly according to their respective manufacturer's instructions. Connect water supply lines and the drain trap.
5. Test for Leaks: Once all connections are made, turn on the water supply and check for any leaks around the faucet, drain, and sink rim. Tighten connections as necessary.

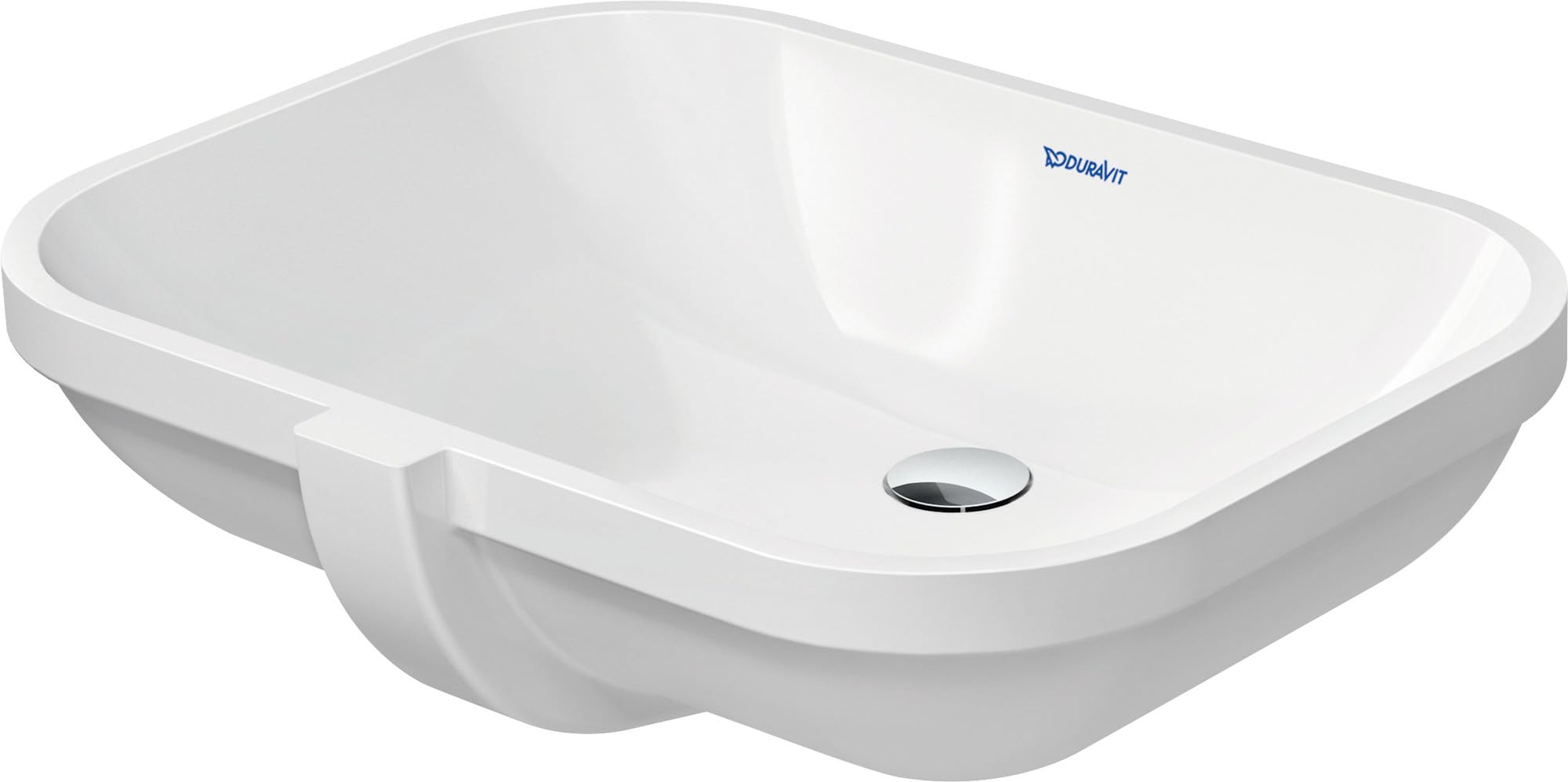

Image 2: A detailed view of the Duravit D-Code sink basin, showing the ceramic finish, the integrated overflow, and the Duravit branding. This image provides a closer look at the sink's internal features.

Operating Instructions

Using your Duravit D-Code bathroom sink is straightforward. Simply operate your faucet to control water flow and temperature. The integrated overflow feature helps prevent the basin from overflowing if the drain is closed and the water is left running. Ensure the drain stopper is functioning correctly for proper water retention when needed.

Maintenance

Proper care and maintenance will preserve the appearance and functionality of your ceramic sink.

• Daily Cleaning: Wipe the sink with a dry, soft cloth after each use to prevent water spots and mineral buildup.
• Regular Cleaning: For more thorough cleaning, use a mild, non-abrasive cleaner and a soft sponge or cloth. Rinse thoroughly with water and dry.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, or harsh chemical products (e.g., strong acids, alkalis, or bleach-based cleaners) as these can damage the ceramic finish.
• Prevent Stains: Promptly clean up any spills, especially those from staining agents like hair dyes, nail polish, or strong pigments.
• Drain Care: Periodically remove and clean the drain stopper to prevent buildup and ensure proper drainage.

Troubleshooting

Here are some common issues and their potential solutions:

• Slow Drainage:
  • Check if the drain stopper is obstructed by hair or debris.
  • Clean the P-trap if necessary.
  • Use a non-corrosive drain cleaner if the clog persists (follow product instructions carefully).
• Leaking Around Drain or Faucet:
  • Ensure all connections are tight.
  • Check for worn washers or O-rings in the faucet or drain assembly and replace if needed.
  • Reapply plumber's putty or sealant if the seal is compromised.
• Water Spots/Mineral Buildup:
  • Regularly wipe the sink dry after use.
  • Use a solution of white vinegar and water (1:1 ratio) to gently remove mineral deposits. Rinse thoroughly.

If you encounter issues not covered here or require further assistance, please contact Duravit customer support or a qualified plumber.

Specifications

Warranty Information

The Duravit D-Code 033856-0HOLE sink is covered under Duravit's 5-year residential warranty and 5-year commercial warranty. This warranty covers manufacturing defects under normal use and service. Please retain your proof of purchase for warranty claims. For full details regarding warranty terms and conditions, please refer to the official Duravit warranty documentation or contact Duravit customer service.

Support

For technical assistance, replacement parts, or further inquiries regarding your Duravit D-Code sink, please contact Duravit customer support.

You can find contact information and additional resources on the official Duravit website or by visiting the Duravit store on Amazon:
