1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler 1680AP 9-Light Olympia Incandescent Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference. This chandelier features a modern design with curvilinear, flowing arms and an Antique Pewter finish, complemented by satin-etched cased opal glass shades.

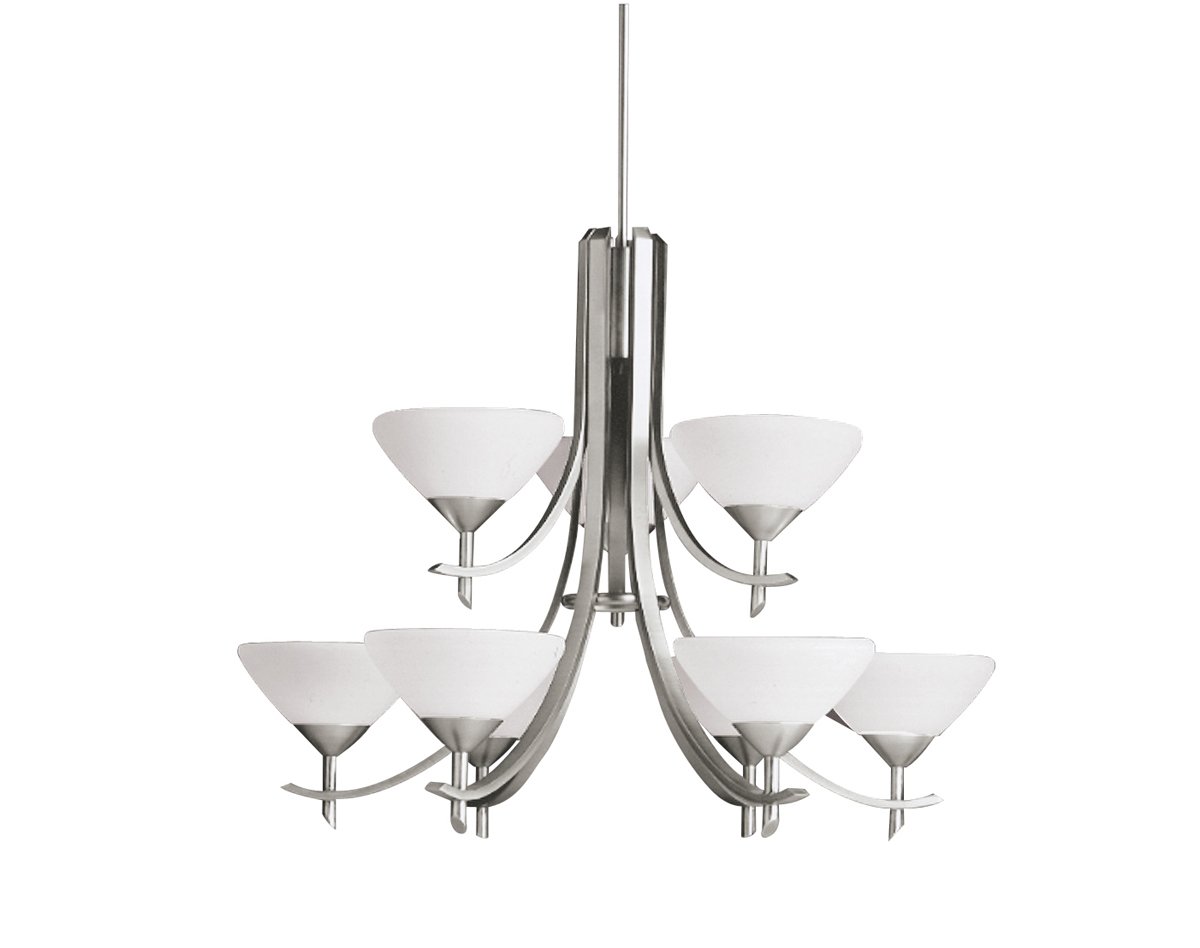

Image 1.1: The Kichler 1680AP 9-Light Olympia Incandescent Chandelier, showcasing its Antique Pewter finish and glass shades.
2. Safety Information
- WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This fixture is intended for dry location use only.
- Use only the specified bulb type and wattage. The 1680AP uses nine candelabra base G16.5, 60-Watt (maximum) incandescent bulbs. Do not exceed 60 watts per bulb.
- Ensure the mounting surface can support the weight of the fixture.
- Wear safety glasses and gloves during installation.
3. Package Contents
Verify that all components are present before discarding packaging materials. If any parts are missing or damaged, contact Kichler customer service.
- Chandelier body with arms (1)
- Satin-etched cased opal glass shades (9)
- Candelabra base sockets (9)
- Canopy (1)
- Mounting strap/hardware kit (1)
- Stem segments (two 12-inch, two 6-inch)
- Extra lead wire (103 inches)
- Instruction Manual (1)
4. Setup and Installation
Professional installation is recommended. Follow these steps carefully:
- Turn Off Power: Before starting, ensure the power to the junction box is turned off at the circuit breaker or fuse box.
- Prepare Mounting: Attach the mounting strap to the junction box using the provided screws. Ensure it is securely fastened.
- Determine Height: The chandelier includes two 12-inch and two 6-inch stem segments, allowing for height adjustment up to a maximum overall fixture height of 63 inches. Additional stems may be purchased separately. Connect the desired stem segments to the chandelier body and then to the canopy.
- Wiring: Carefully connect the electrical wires. Connect the bare copper or green ground wire from the fixture to the ground wire from the junction box. Connect the white wire from the fixture to the white (neutral) wire from the junction box. Connect the black wire from the fixture to the black (hot) wire from the junction box. Secure all connections with wire nuts and wrap with electrical tape.
- Mount Canopy: Carefully push the canopy up to the ceiling, aligning the mounting holes with the screws on the mounting strap. Secure the canopy with the decorative nuts or screws. The 5-inch diameter canopy adjusts to a 45-degree tilt for sloped ceilings.
- Install Shades and Bulbs: Gently attach the satin-etched cased opal glass shades to each socket. Insert nine candelabra base G16.5, 60-Watt maximum incandescent bulbs into the sockets.
- Restore Power: Once installation is complete, restore power at the circuit breaker or fuse box.
5. Operating Instructions
The Kichler 1680AP Chandelier is designed for simple operation.
- Power On/Off: Use the standard wall switch connected to the fixture to turn the chandelier on or off.
- Dimming: This fixture is dimmable. If connected to a compatible dimmer switch (sold separately), you can adjust the light output to create various ambiances. Ensure your dimmer switch is rated for incandescent loads and compatible with the total wattage of the bulbs (540 watts maximum).
6. Maintenance
- Cleaning: To clean the fixture, turn off the power and allow it to cool. Wipe with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish or glass.
- Bulb Replacement: Turn off the power before replacing bulbs. Allow bulbs to cool completely. Unscrew old bulbs and replace with new candelabra base G16.5, 60-Watt maximum incandescent bulbs.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | 1. Power is off. 2. Loose wiring connection. 3. Faulty bulb. | 1. Check circuit breaker/fuse. Ensure wall switch is on. 2. Turn off power, check all wiring connections. 3. Replace bulb(s). |
| Light flickers. | 1. Loose bulb. 2. Incompatible dimmer switch. 3. Loose wiring. | 1. Tighten bulb(s). 2. Ensure dimmer is compatible with incandescent bulbs and total wattage. 3. Turn off power, check wiring connections. |
| Dimming not working. | 1. Non-dimmable bulbs. 2. Non-dimmable switch. 3. Incorrect wiring of dimmer. | 1. Ensure incandescent bulbs are used. 2. Install a compatible dimmer switch. 3. Consult an electrician to check dimmer wiring. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 1680AP |
| Brand | Kichler |
| Finish | Antique Pewter |
| Material | Glass (Shades) |
| Light Source | Incandescent |
| Number of Lights | 9 |
| Bulb Type | Candelabra Base G16.5 |
| Max Wattage per Bulb | 60 Watts |
| Total Max Wattage | 540 Watts |
| Voltage | 120 Volts |
| Mounting Type | Ceiling Mount |
| Overall Fixture Height (Max) | 63 Inches |
| Canopy Tilt Adjustment | Up to 45 Degrees |
| Certifications | UL/CSA/ETL Listed for Dry Location Use |
| UPC | 783927127714 |
