hansgrohe Talis S² Kitchen Faucet 14877001 User Manual

1. Important Safety Information

Please read this manual carefully before installation and use. Keep these instructions for future reference. Installation should be performed by a licensed plumber to ensure proper function and to maintain warranty validity.

• Ensure all water supply lines are turned off before beginning installation.
• Wear appropriate personal protective equipment (PPE) during installation.
• Do not overtighten connections, as this may damage the product.
• Protect the product from freezing temperatures.

2. Product Overview

The hansgrohe Talis S² Kitchen Faucet combines modern design with functional details for your kitchen sink. It features a high-arc spout and a convenient pull-down sprayer.

Key Features:

• Simple Design: Talis S faucets feature a simple, geometric beauty full of personality.
• Shiny Appearance: The brilliant, easy-to-clean chrome surface impresses with its long-lasting shine.
• More Freedom of Movement: The 150° swivel spout allows for more access to the kitchen sink.
• More Comfort: With pull-out spray for a larger range of action and targeted rinsing of fruit and vegetables.
• Dual Spray Modes: Directly at the spout, you can switch between crystal clear laminar or gentle shower spray at the touch of a button. The crystal clear laminar spray quickly fills pots while the soft shower jet cleans fruit and vegetables gently.
• Magnetic Holder: The pull-out shower head is held securely and in the middle of the spout (hansgrohe MagFit).

Image: The hansgrohe Talis S² Kitchen Faucet with its high-arc design and pull-down sprayer in a modern kitchen setting.

3. Package Contents

Verify that all components are present before beginning installation:

• hansgrohe Talis S² Kitchen Faucet (Main Unit)
• Pull-down Sprayer Head
• Flexible 3/8-inch hoses for connection
• Mounting Hardware
• Installation Instructions (this manual)

4. Specifications

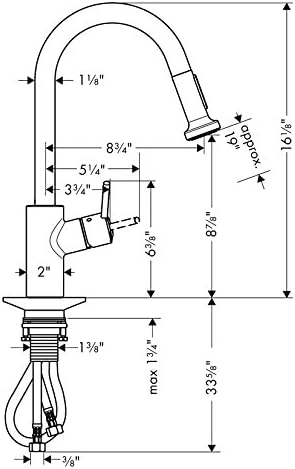

Image: Technical drawing showing the dimensions of the hansgrohe Talis S² Kitchen Faucet.

5. Setup (Installation)

hansgrohe recommends that this product be installed by a licensed plumber to ensure proper functionality and adherence to local codes.

1. Prepare the Installation Area: Ensure the sink hole is clean and clear. Turn off the main water supply.
2. Mount the Faucet: Insert the faucet body into the sink hole. Secure it from underneath the counter using the provided mounting hardware (screws and washer).
3. Connect Water Lines: Attach the flexible 3/8-inch hoses to the hot and cold water supply lines. Ensure connections are tight to prevent leaks.
4. Connect Sprayer Hose: Connect the pull-down sprayer hose to the designated connection point under the sink.
5. Test for Leaks: Slowly turn on the main water supply and check all connections for leaks.
6. Flush the System: Run water through the faucet for a few minutes to flush out any debris from the new installation.

6. Operating Instructions

The hansgrohe Talis S² Kitchen Faucet is designed for ease of use with a single lever handle and a versatile pull-down sprayer.

6.1. Water Flow and Temperature Control:

• The single lever handle controls both water flow and temperature.
• Move the handle up to increase water flow and down to decrease it.
• Move the handle to the left for hot water and to the right for cold water.

6.2. Using the Pull-Down Sprayer:

• Gently pull the spray head down from the spout to extend the hose.
• The MagFit magnetic holder ensures the spray head docks securely back into place after use.

6.3. Switching Spray Modes:

• The spray head features a button to switch between two spray types:
  • Laminar Spray: A clear, aerated stream ideal for filling pots quickly.
  • Shower Spray: A gentle, wider spray suitable for rinsing fruits and vegetables.
• Press the button on the spray head to toggle between these modes.

Image: Close-up view of the spray head demonstrating the two distinct spray patterns: laminar and shower.

7. Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe faucet.

7.1. General Cleaning:

• Clean the faucet regularly with a mild soap and water solution.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
• Wipe dry with a soft cloth to prevent water spots.

7.2. QuickClean Feature:

• The faucet spout features QuickClean silicone inserts.
• To remove limescale, simply rub the silicone inserts with your finger. This will dislodge mineral deposits and restore full spray performance.

Image: Detail of the QuickClean silicone nozzles on the spray head, designed for easy limescale removal.

8. Troubleshooting

If you encounter issues with your faucet, refer to the following common solutions:

For issues not listed here, please contact hansgrohe customer support.

9. Warranty and Support

Manufacturer Warranty Description: hansgrohe, Inc. warrants to the original consumer purchaser that hansgrohe products will be free from defects in material and workmanship for as long as the original consumer purchaser owns both the product and the home in which the product was originally installed. For commercial purchasers, the warranty period is (a) one (1) year for hansgrohe products from the date of purchase. The warranty period for products in the Rubbed Bronze, Matte Black, Matte White finishes is three (3) years from the date of purchase. This warranty is non-transferable. Because hansgrohe, Inc. is unable to control the quality of hansgrohe products sold by unauthorized sellers, unless otherwise prohibited by law, this warranty does not cover hansgrohe products purchased from unauthorized sellers. Authorized sellers can be found on hansgrohe branded websites. Additional warranty restrictions apply. See manufacturer website for full warranty details.

For further assistance or to claim warranty, please visit the official hansgrohe website or contact their customer support.
