Introduction
This user manual provides important information regarding the installation, operation, and maintenance of your Satco S3607 120V 7.5-Watt S11 Incandescent Lamp. Please read these instructions carefully before use and retain them for future reference. Proper installation and care will ensure optimal performance and longevity of the product.
Safety Information
Always observe the following safety precautions to prevent injury or damage:
- Power Off: Always disconnect power to the fixture before installing, removing, or servicing the lamp.
- Correct Voltage: Ensure the lamp's voltage (120V) matches the fixture's power supply.
- Proper Base: Use only in fixtures designed for an E26 Medium Base.
- Handle with Care: Incandescent lamps can become hot during operation. Allow the bulb to cool completely before handling.
- Indoor Use: This lamp is designed for indoor use only.
- Avoid Over-tightening: Do not over-tighten the bulb into the socket, as this can damage the lamp or fixture.
- Disposal: Dispose of used lamps according to local regulations.
Product Overview
The Satco S3607 is a 7.5-watt S11 incandescent lamp with a gloss white finish and an E26 medium base. It is designed to provide warm, ambient light for various indoor applications.

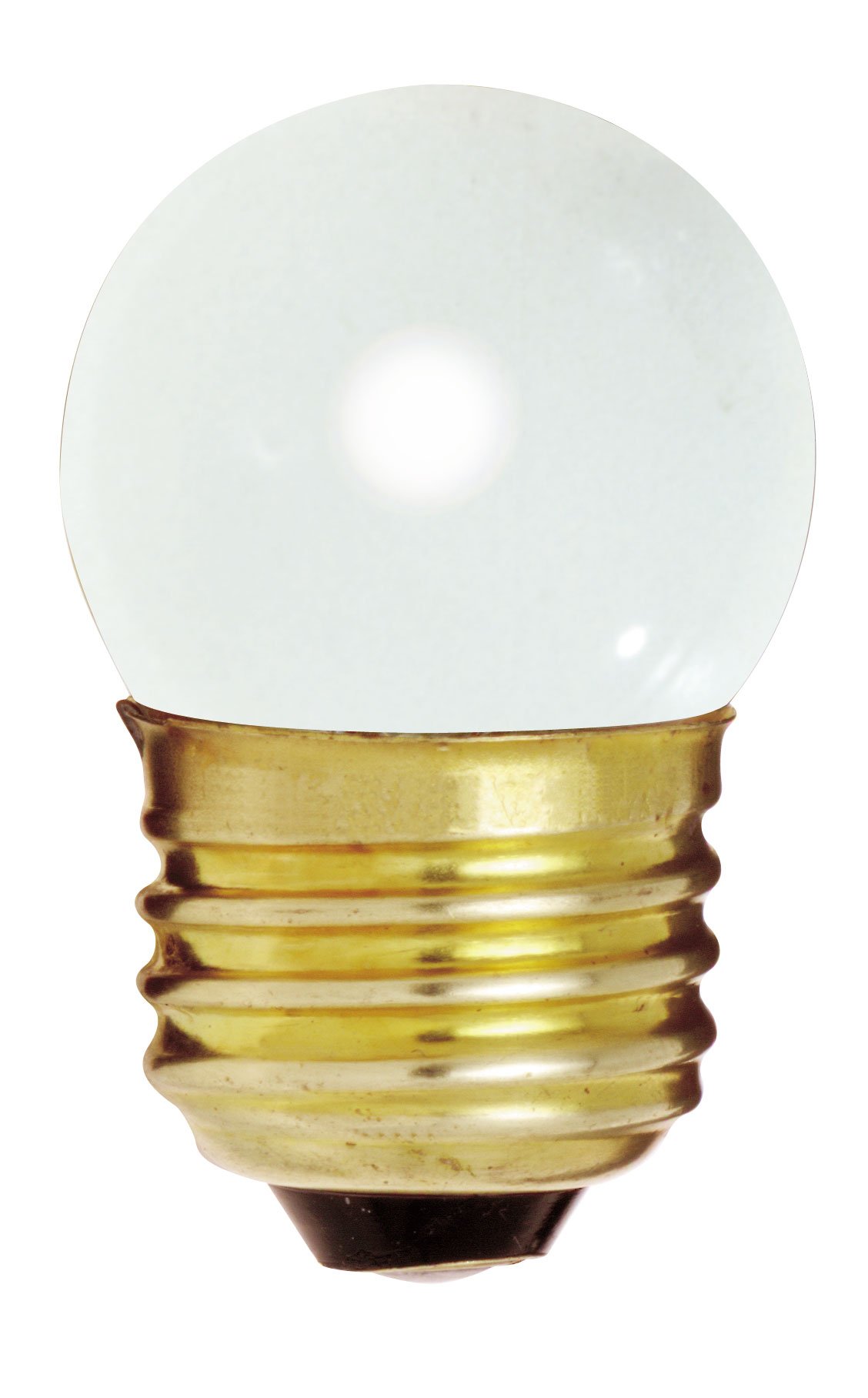

Image 1: The Satco S3607 incandescent lamp, featuring its S11 shape, gloss white bulb, and E26 medium screw base.
Image 2: Lighting Facts label for the Satco S3607 lamp, indicating 20 lumens brightness, an estimated yearly energy cost of $0.90, a life of 2.3 years (based on 3 hrs/day), warm light appearance (2700K), and 7.5 watts energy used.
Setup and Installation
Follow these steps to safely install your incandescent lamp:
- Verify Power: Ensure the power supply to the light fixture is turned off at the circuit breaker or wall switch before beginning installation.
- Inspect Fixture: Check the light fixture for any damage or wear. Ensure the socket is clean and free of debris.
- Screw in Lamp: Gently screw the Satco S3607 lamp into the E26 medium base socket. Turn clockwise until it is snug, but do not over-tighten.
- Restore Power: Once the lamp is securely installed, restore power to the fixture at the circuit breaker or wall switch.
- Test: Turn on the light switch to confirm the lamp is functioning correctly.
Operation
The Satco S3607 incandescent lamp operates like a standard light bulb. Once installed in a compatible fixture and power is supplied, it will illuminate when the fixture's switch is turned on. No special controls or programming are required for basic operation.
Maintenance
Minimal maintenance is required for this incandescent lamp:
- Cleaning: Ensure the power is off and the lamp is cool before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: Replace the lamp when it burns out. Follow the installation steps in reverse to remove the old bulb and then install a new one.
Troubleshooting
If your lamp is not functioning as expected, consider the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. | No power to the fixture. | Check the circuit breaker and wall switch. |
| Lamp does not light up. | Lamp is not screwed in properly. | Turn off power, then gently tighten the lamp into the socket. |
| Lamp does not light up. | Lamp has reached the end of its life. | Replace the lamp with a new one. |
| Lamp flickers. | Loose connection in the socket or fixture. | Turn off power, then gently tighten the lamp. If flickering persists, consult a qualified electrician. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Satco |
| Model Name | S3607 |
| Light Type | Incandescent |
| Wattage | 7.5 Watts |
| Voltage | 120 Volts |
| Bulb Shape Size | S11 |
| Bulb Base | E26 Medium |
| Color | White (Gloss) |
| Product Dimensions | 0.5"W x 2.25"H |
| Item Weight | 1.12 ounces |
| Indoor/Outdoor Usage | Indoor |
| UPC | 045923036071 |
Warranty and Support
For specific warranty information or technical support regarding your Satco S3607 incandescent lamp, please refer to the product packaging or contact Satco customer service directly. Contact details can typically be found on the manufacturer's official website or on the product's retail packaging.
