Bosch MUZ5 MM1 Multi Mixer Instruction Manual

1. Introduction

Thank you for choosing the Bosch MUZ5 MM1 Multi Mixer. This accessory is designed to enhance the functionality of your Bosch MUM5 Food Processor, providing versatile options for food preparation. This manual provides essential information for the safe and efficient use of your Multi Mixer.

The Bosch MUZ5 MM1 Multi Mixer features a 0.5-liter capacity bowl, robust stainless steel blades, and various discs. It is ideal for tasks such as crushing ice, preparing frozen fruits and vegetables, chopping, grating, and mixing.

2. Safety Instructions

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in injury or damage to the appliance.

• General Safety: Always ensure the appliance is unplugged from the power supply before assembly, disassembly, or cleaning.
• Sharp Blades: The blades and discs are extremely sharp. Handle them with extreme care to avoid injury. Always use the pusher when feeding ingredients.
• Accessory Use: The MUZ5 MM1 Multi Mixer is an accessory and requires a Bosch MUM5 Food Processor for operation. It does not have its own motor.
• Proper Assembly: Ensure all parts are correctly assembled and securely locked in place before operating the food processor. The appliance will not operate if the lid is not properly secured.
• Children and Supervision: Keep the appliance and its cord out of reach of children. Close supervision is necessary when any appliance is used by or near children.
• Intended Use: Use the Multi Mixer only for its intended purpose as described in this manual. Do not process excessively hot liquids or ingredients.

3. Product Overview

The Bosch MUZ5 MM1 Multi Mixer consists of the following main components:

• Transparent Bowl: 0.5-liter capacity for processing ingredients.

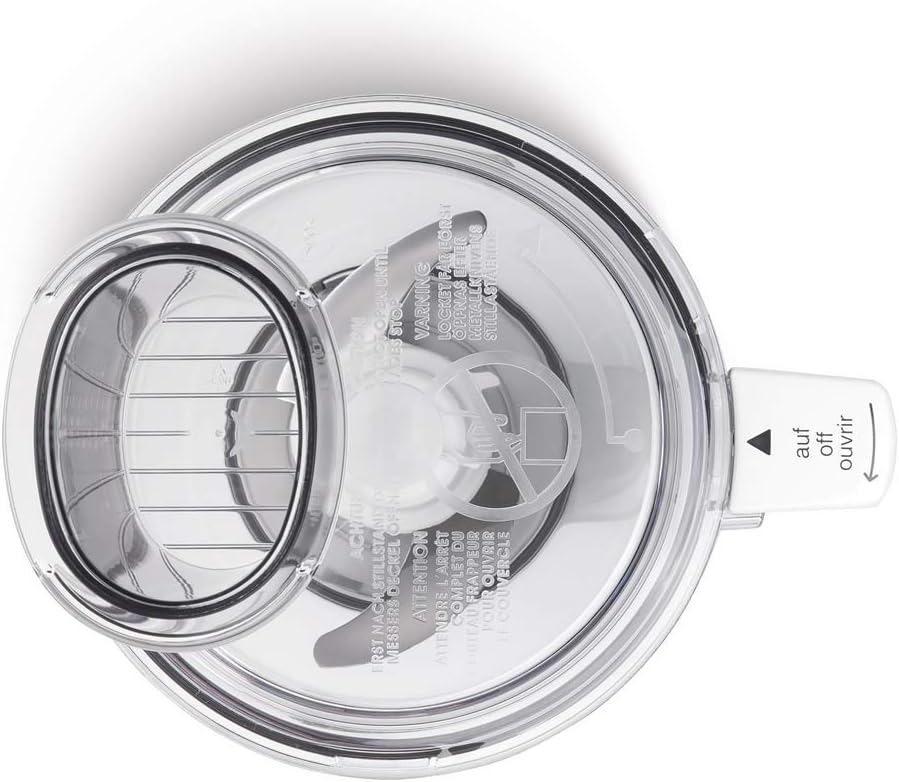

• Lid with Filler Opening: Transparent lid with a secure locking mechanism and an opening for adding ingredients during operation.
• Pusher: Used to safely guide ingredients into the filler opening.
• Blade Insert: Robust stainless steel blade for chopping and mixing.
• Interchangeable Discs: Various stainless steel discs for grating, slicing, and shredding.

4. Setup

Follow these steps to correctly set up your Multi Mixer with your Bosch MUM5 Food Processor:

1. Ensure Power Off: Before assembly, ensure your Bosch MUM5 Food Processor is switched off and unplugged from the power outlet.
2. Attach Bowl: Place the transparent Multi Mixer bowl onto the designated attachment point of your MUM5 Food Processor. Rotate until it locks securely into position.
3. Insert Blade/Disc: Carefully insert the desired stainless steel blade or disc into the bowl. Ensure it is properly seated on the central shaft.
4. Secure Lid: Place the lid onto the bowl, aligning the locking tabs. Rotate the lid clockwise until it clicks into its locked position. The food processor will not operate if the lid is not correctly secured.
5. Insert Pusher: Place the pusher into the filler opening of the lid.

5. Operating Instructions

Once the Multi Mixer is correctly assembled onto your Bosch MUM5 Food Processor, you can begin processing ingredients.

1. Add Ingredients: Place your ingredients into the transparent bowl. For chopping or mixing, use the blade insert. For grating, slicing, or shredding, use the appropriate disc.
2. Secure Lid: Ensure the lid is securely locked in place.
3. Plug In and Select Speed: Plug in your Bosch MUM5 Food Processor and select the appropriate speed setting for your task. Refer to your MUM5 Food Processor manual for specific speed recommendations.
4. Process: Turn on the food processor. For ingredients that need to be fed through the filler opening (e.g., for grating or slicing), use the pusher to guide them safely. Never use your fingers or other utensils.
5. Monitor Progress: The transparent bowl allows you to monitor the processing progress.
6. Finish: Once processing is complete, switch off the food processor and unplug it from the power outlet. Wait for all moving parts to stop before disassembling.

Recommended Uses:

• Chopping: Vegetables, fruits, meat, hard cheese, herbs, nuts.
• Mixing: Drinks of all kinds.
• Crushing: Ice cubes, frozen fruits, and vegetables.
• Grating/Slicing/Shredding: Various vegetables and fruits for salads, soups, entrees.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Multi Mixer.

• Disassembly: Always unplug the food processor before disassembling the Multi Mixer. Carefully remove the lid, then the blade/disc, and finally the bowl.
• Cleaning: All removable parts of the Multi Mixer (bowl, lid, pusher, blades, discs) should be hand washed only. Use warm soapy water and a soft brush if necessary. Rinse thoroughly and dry immediately.
• Sharp Edges: Exercise extreme caution when cleaning the blades and discs due to their sharpness.
• Drying: Ensure all parts are completely dry before reassembling or storing.
• Storage: Store the Multi Mixer and its components in a clean, dry place.

7. Troubleshooting

If you encounter issues with your Bosch MUZ5 MM1 Multi Mixer, consider the following common solutions:

• Appliance Not Starting:
  • Ensure the Multi Mixer bowl and lid are correctly assembled and securely locked onto the Bosch MUM5 Food Processor.
  • Verify that the food processor is properly plugged into a working power outlet.
• Poor Processing Results:
  • Check that the correct blade or disc is installed for the task.
  • Ensure ingredients are cut into appropriate sizes before processing.
  • Do not overload the bowl beyond its 0.5-liter capacity.
• Loud Noise/Vibration:
  • Confirm all components are securely attached and locked.
  • Reduce the amount of ingredients if the bowl is overloaded.

If problems persist, please refer to the troubleshooting section of your Bosch MUM5 Food Processor manual or contact customer support.

8. Specifications

9. Warranty and Support

For information regarding the warranty of your Bosch MUZ5 MM1 Multi Mixer, please refer to the warranty documentation provided with your Bosch MUM5 Food Processor or visit the official Bosch Home Appliances website.

If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Bosch customer support. Contact details can typically be found on the Bosch website or in the documentation accompanying your main food processor unit.

Please have your product model number (MUZ5MM1) and the model number of your Bosch MUM5 Food Processor available when contacting support.
