Fotodiox Pro Lens Mount Adapter (10LA-FD-XLp)

1. Introduction

The Fotodiox Pro Lens Mount Adapter (Model 10LA-FD-XLp) allows you to mount Canon FD, FL, and New FD series lenses onto Canon XL mount video cameras, including models such as the XL-1, XL-1s, XL-2, and XL-H1 HDV Camcorder. This adapter provides a robust and precise connection, enabling the use of a wider range of lenses for creative control over your videography.

This adapter is designed with a 'no play' mechanism, ensuring a secure fit between your lens and camera body. It is important to note that this is a mechanical adapter. As such, automatic diaphragm control, auto-focusing, and other electronic functions between the lens and camera body will not operate. Manual control of focus and aperture is required. For accurate exposure metering, the 'stop-down mode' must be utilized, and shooting should be performed in manual or aperture priority mode.

2. Setup and Installation

2.1 Identifying Adapter Sides

The adapter has two distinct sides: one for the lens and one for the camera body. The side marked 'Fotodiox PRO CANON FD-XL L' is for Canon FD lenses, and the other side is for Canon XL camera bodies.

Image 1: Top view of the Fotodiox Pro Lens Mount Adapter, showing the lens mount side.

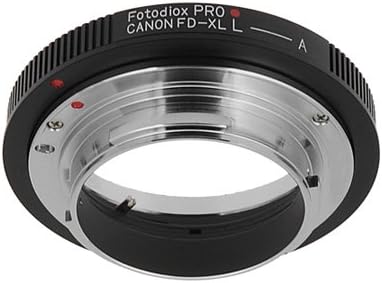

Image 2: Bottom view of the Fotodiox Pro Lens Mount Adapter, showing the camera mount side.

2.2 Attaching the Adapter to the Camera Body

1. Ensure your Canon XL camera is powered off.
2. Remove the body cap from your Canon XL camera.
3. Align the red dot on the adapter with the red dot or indicator on your Canon XL camera body mount.
4. Insert the adapter into the camera mount and rotate it clockwise until it clicks securely into place. Do not force the adapter.

2.3 Attaching the Lens to the Adapter

1. Align the red dot or indicator on your Canon FD lens with the red dot on the adapter's lens mount side.
2. Insert the lens into the adapter and rotate it clockwise until it locks securely.

Image 3: An assembled unit showing a Canon XL Camera, the Fotodiox Pro Lens Mount Adapter, and a Canon FD Lens.

2.4 Detaching the Lens and Adapter

1. To remove the lens from the adapter, press the lens release button on the adapter (if present) or rotate the lens counter-clockwise until it unlocks, then carefully remove it.
2. To remove the adapter from the camera body, press the camera's lens release button and rotate the adapter counter-clockwise until it unlocks, then carefully remove it.

3. Operating Instructions

When using the Fotodiox Pro Lens Mount Adapter, all lens functions will be operated manually.

• Focusing: Adjust the focus ring on your Canon FD lens manually to achieve sharp focus.
• Aperture Control: Adjust the aperture ring on your Canon FD lens manually to control the depth of field and exposure.
• Metering: Since the camera cannot control the lens's aperture, you must use 'stop-down mode' for metering. This means setting the desired aperture on the lens before taking a light reading or shooting.
• Camera Mode: Operate your Canon XL camera in Manual (M) mode or Aperture Priority (Av) mode for best results.
• Infinity Focus: This adapter is designed to guarantee infinity focus with compatible lenses.

4. Maintenance

Proper care will ensure the longevity and performance of your lens mount adapter.

• Cleaning: Use a clean, dry microfiber cloth to wipe the exterior of the adapter. Avoid using harsh chemicals or abrasive materials. For internal dust, use a blower brush.
• Storage: Store the adapter in a dry, dust-free environment when not in use. Keep both ends covered with caps to prevent dust and debris from entering.
• Handling: Avoid dropping or subjecting the adapter to strong impacts, as this can affect its precision and functionality.

5. Troubleshooting

If you encounter issues while using your Fotodiox Pro Lens Mount Adapter, consider the following:

• Lens not attaching securely: Ensure the lens and adapter are correctly aligned (red dots matched) and rotated fully until they click into place. Check for any obstructions on the mounting surfaces.
• Adapter not attaching securely to camera: Verify the adapter is correctly aligned with the camera body mount and rotated until it locks. Ensure the camera's lens release button is not stuck.
• Image not sharp: Confirm that you are manually focusing the lens correctly. Check the lens's own focus mechanism for proper operation.
• Exposure issues: Ensure your camera is set to Manual (M) or Aperture Priority (Av) mode. Remember to use 'stop-down mode' for metering, meaning the aperture should be set on the lens before taking a light reading.
• Adapter or lens stuck: Do not force removal. Re-check the release mechanisms on both the lens and camera body. Ensure no foreign objects are preventing release.

6. Specifications

7. Warranty Information

This Fotodiox Pro Lens Mount Adapter comes with a 24 Month Manufacturer Warranty. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Fotodiox website or contact customer support.

8. Support

For further assistance, technical support, or inquiries regarding your Fotodiox Pro Lens Mount Adapter, please visit the official Fotodiox website or contact their customer service department. Contact information can typically be found on the Fotodiox website or product packaging.
