Introduction
The VOLTCRAFT IR 110-1S is a compact and precise infrared thermometer designed for non-contact temperature measurements. Its user-friendly design and wide temperature range make it suitable for various applications, from household use to professional tasks. This manual provides essential information for safe and effective operation of your device.
Key Features:
- Small, convenient, and accurate design.
- Wide range of optional features for versatile use.
- Minimum/Maximum temperature function.
- Automatic shutdown after 15 seconds of inactivity.
- Duration measurement activation.

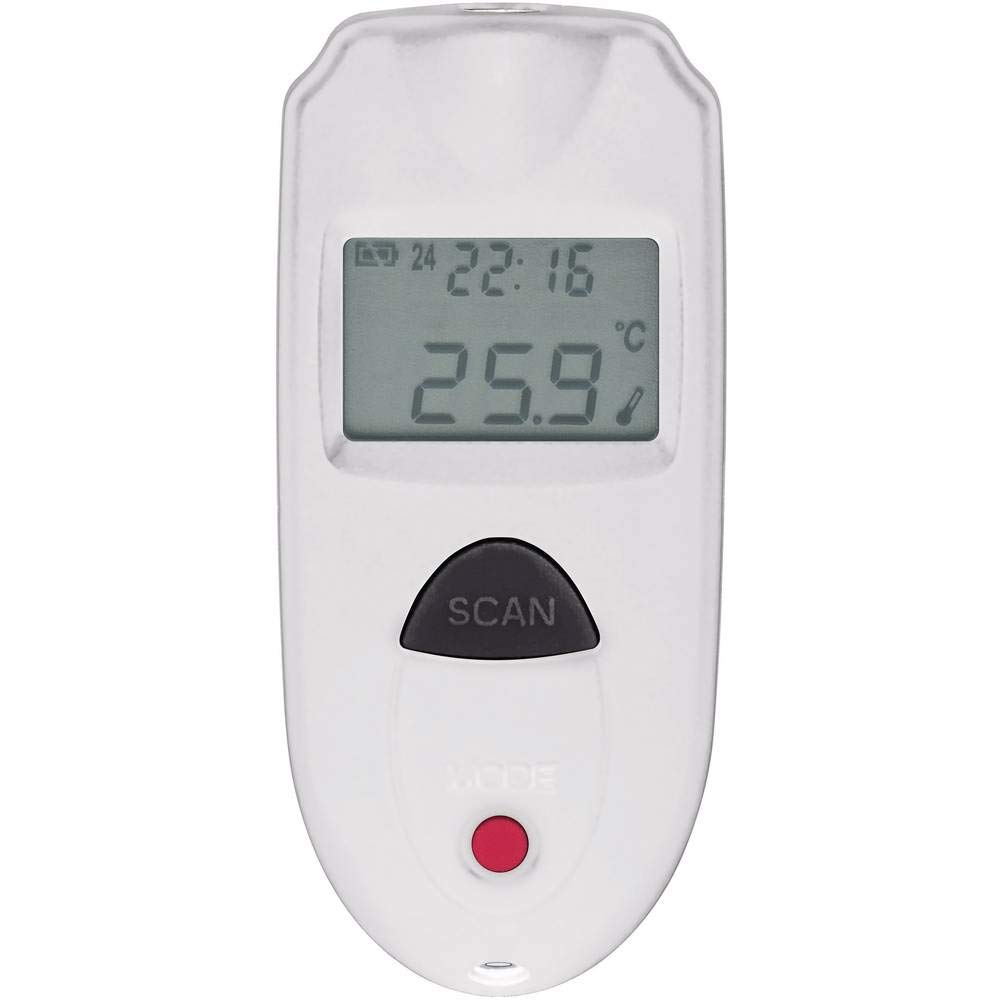

Front view of the VOLTCRAFT IR 110-1S Infrared Thermometer, showing the display, 'SCAN' button, and 'MODE' button.
Safety Information
Please read and understand all safety instructions before using the device. Failure to follow these instructions may result in injury or damage to the device.
- Always point the thermometer away from eyes when operating. Do not look directly into the laser beam.
- This device is not intended for medical use.
- Keep out of reach of children.
- Do not expose the device to extreme temperatures, humidity, or direct sunlight.
- Do not attempt to disassemble or modify the device.
- Dispose of batteries according to local regulations.
Package Contents
Verify that all items are present in your package:
- 1 x VOLTCRAFT IR 110-1S Infrared Thermometer
- 1 x User Manual
Product Overview
Familiarize yourself with the components of your VOLTCRAFT IR 110-1S thermometer.
An angled view of the VOLTCRAFT IR 110-1S Infrared Thermometer, highlighting the display and control buttons.
- Infrared Sensor (at the top)
- LCD Display
- SCAN Button (black, for measurement activation)
- MODE Button (red, for function selection)
- Battery Compartment (on the rear side)
Setup
Battery Installation
The VOLTCRAFT IR 110-1S requires two AAA batteries (not included). To install:
- Locate the battery compartment cover on the back of the device.
- Slide the cover open.
- Insert two AAA batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover securely.
Side view of the VOLTCRAFT IR 110-1S Infrared Thermometer, showing its slim profile and indicating the general area for battery access.
Operating Instructions
Basic Temperature Measurement
- Point the infrared sensor towards the target object. Ensure the distance-to-spot ratio (D:S) of 1:1 is considered for accurate readings. For example, at 1 meter distance, the measurement spot diameter is 1 meter.
- Press and hold the SCAN button. The current temperature will be displayed on the LCD.
- Release the SCAN button to hold the reading. The 'HOLD' indicator will appear.
- The device will automatically shut down after 15 seconds of inactivity to conserve battery.
Changing Temperature Units (°C/°F)
With the device powered on, press the MODE button to toggle between Celsius (°C) and Fahrenheit (°F).
Min/Max Function
While holding the SCAN button, press the MODE button to cycle through MIN (minimum) and MAX (maximum) temperature readings during the scan. The display will show the minimum or maximum temperature recorded during the active scan.
Close-up of the VOLTCRAFT IR 110-1S display, showing a temperature reading of 32.1 °C.
Maintenance
- Clean the device with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Keep the infrared lens clean and free from dust or debris for accurate measurements.
- Store the thermometer in a dry, cool place when not in use.
- Remove batteries if storing for extended periods to prevent leakage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No display | Dead batteries / Incorrect battery installation | Replace batteries / Check polarity |
| Inaccurate readings | Dirty sensor lens / Incorrect distance / Object emissivity | Clean lens / Adjust distance (D:S 1:1) / Understand emissivity limitations (e.g., reflective surfaces) |
| Device does not turn on | Batteries dead or missing | Install or replace batteries |
Specifications
| Feature | Value |
|---|---|
| Model | IR 110-1S |
| Temperature Range | -33 °C to +110 °C (-27.4 °F to +230 °F) |
| Measurement Accuracy | ±2.5% or ±2.5 °C (whichever is greater) |
| Distance to Spot Ratio (D:S) | 1:1 |
| Emissivity | Fixed at 0.95 |
| Response Time | < 1 second |
| Spectral Response | 5.5 - 14 µm |
| Automatic Shutdown | After 15 seconds |
| Dimensions (H x W x D) | 73 x 33 x 14 mm |
| Weight | 22 g (without batteries) |
| Power Supply | 2 x AAA batteries |
Warranty
VOLTCRAFT products are covered by a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official VOLTCRAFT website for detailed warranty terms and conditions. Keep your proof of purchase for warranty claims.
Support
For technical assistance, troubleshooting, or product inquiries, please contact VOLTCRAFT customer support. Contact details can be found on the official VOLTCRAFT website or in the product packaging. Please have your model number (IR 110-1S) ready when contacting support.
