1. Product Overview
The MANHATTAN SuperSpeed USB 3.0 A-Male to Micro B-Male Cable (Model 325417) is designed for high-speed data transfer and reliable connectivity between SuperSpeed USB devices and a SuperSpeed USB hub or computer. This cable supports data transfer rates up to 5 Gbps, which is significantly faster than Hi-Speed USB 2.0. Its construction includes full shielding, molded boots, and a flexible PVC jacket to minimize EMI interference and ensure maximum conductivity, providing efficient and stable data transmissions.

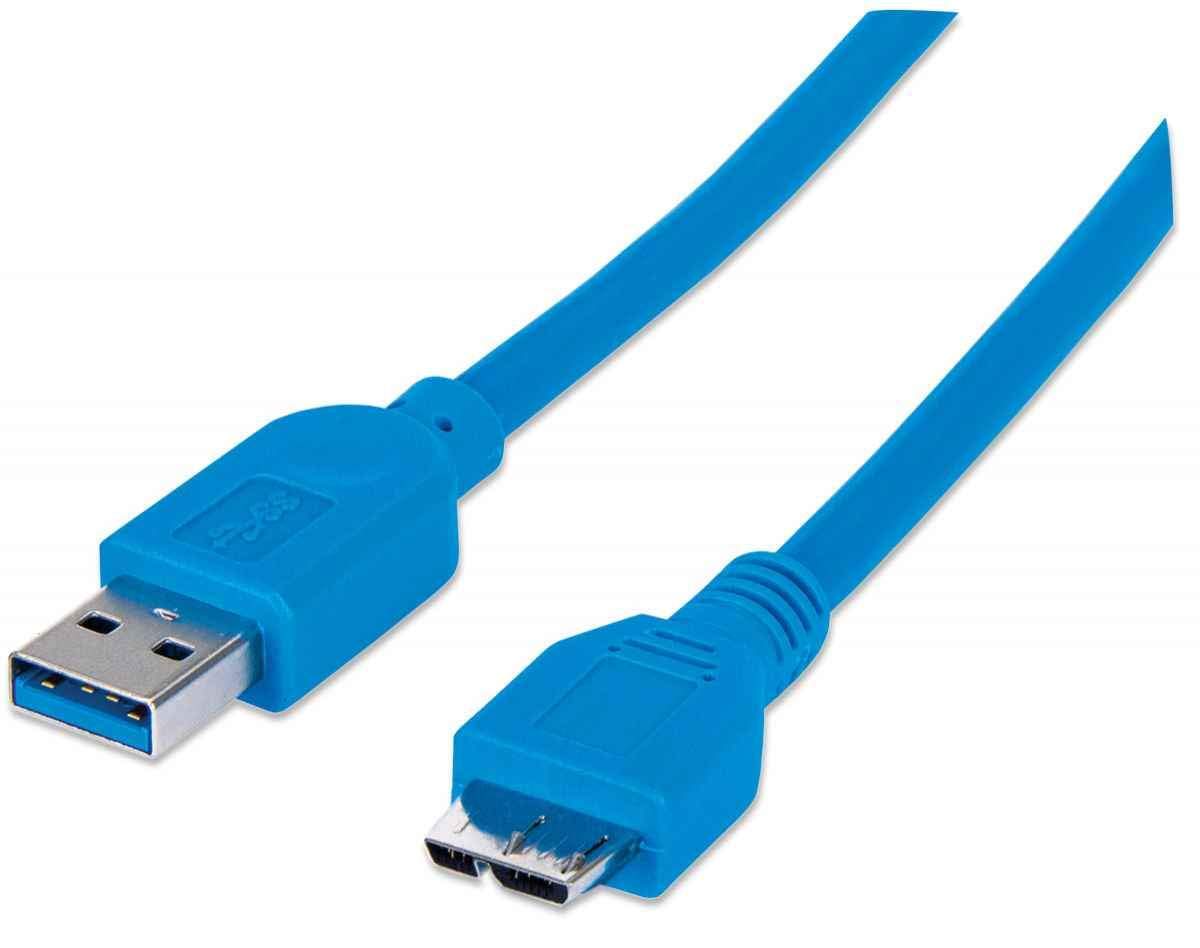

Figure 1: MANHATTAN SuperSpeed USB 3.0 A-Male to Micro B-Male Cable. This image displays the full length of the blue USB 3.0 cable with its A-Male and Micro B-Male connectors.
2. Setup Instructions
2.1 Connecting the Cable
Follow these steps to properly connect your MANHATTAN SuperSpeed USB 3.0 cable:
- Identify the USB 3.0 A-Male connector (typically rectangular with a blue interior) on one end of the cable.
- Identify the USB 3.0 Micro B-Male connector (a smaller, trapezoidal connector with a blue interior) on the other end.
- Insert the USB 3.0 A-Male connector into an available USB 3.0 port on your computer, laptop, or USB hub. Ensure the port is also USB 3.0 compatible for optimal performance.
- Insert the USB 3.0 Micro B-Male connector into the corresponding Micro B port on your SuperSpeed USB device (e.g., external hard drive, camera).
- Ensure both connections are firm and secure.
Figure 2: Close-up of the USB 3.0 A-Male and Micro B-Male connectors. This image shows both ends of the cable, illustrating their distinct shapes and blue internal coloring, which signifies USB 3.0 compatibility.
3. Operation
3.1 Data Transfer
Once connected, the cable facilitates high-speed data transfer between your computer/hub and the connected device. SuperSpeed USB 3.0 allows for bi-directional data transfer at speeds up to 5 Gbps, enabling quick synchronization and backup of large files. The actual transfer speed may vary depending on the capabilities of the connected devices and the system's overall performance.
3.2 Power Delivery
In addition to data transfer, the cable also provides power to compatible devices. This allows you to charge or power your Micro B-enabled device directly from the USB 3.0 port of your computer or hub, eliminating the need for a separate power adapter for some devices.
4. Care and Maintenance
- Handling: Avoid sharp bends or kinks in the cable, as this can damage the internal wiring and shielding.
- Cleaning: Use a soft, dry cloth to clean the cable and connectors. Do not use harsh chemicals or abrasive materials.
- Storage: When not in use, coil the cable loosely and store it in a cool, dry place away from direct sunlight and extreme temperatures.
- Connection/Disconnection: Always grasp the connector housing when plugging or unplugging the cable, rather than pulling on the cable itself.
5. Troubleshooting
| Issue | Possible Solution |
|---|---|
| Device not recognized or detected. |
|
| Slow data transfer speed. |
|
| Intermittent connection. |
|
6. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | MANHATTAN |
| Model Number | 325417 |
| Connector Type | USB 3.0 A-Male to Micro B-Male |
| Cable Type | USB |
| Data Transfer Rate | Up to 5 Gbps (SuperSpeed USB 3.0) |
| Compatible Devices | Laptop, PC, SuperSpeed USB Micro B devices |
| Special Feature | Data Transfer, High Speed |
| Product Dimensions | 6 x 3.6 x 1.06 inches (packaging); 1.76 ounces |
| Color | Blue |
Figure 3: Detailed view of the USB 3.0 A-Male and Micro B-Male connectors. This image provides a close-up perspective of the connector ends, showing the internal structure and pin configuration.
7. Warranty Information
The MANHATTAN SuperSpeed USB 3.0 A-Male to Micro B-Male Cable (Model 325417) is backed by a Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the official MANHATTAN website or contact customer support.
Figure 4: Product packaging displaying the 'LIFETIME WARRANTY' seal. This image shows the product in its retail packaging, highlighting the warranty information.
8. Support and Contact Information
For technical support, product inquiries, or further assistance, please visit the official MANHATTAN website or contact their customer service department.
- Official Website: www.manhattan-products.com
- Refer to the website for regional contact details and support resources.
