Introduction
This manual provides essential instructions for the proper setup, operation, and maintenance of your NIXON Magnacon A154-001 watch. Please read this manual thoroughly before using your watch to ensure optimal performance and longevity. Keep this manual for future reference.
Setup
Time Setting
- Pull out the crown: Gently pull the crown (the knob on the side of the watch) to the second click position.
- Set the time: Rotate the crown to adjust the hour and minute hands to the correct time.
- Push in the crown: Once the time is set, push the crown back into its normal position to start the watch.
Date Setting (if applicable)
- Pull out the crown: Gently pull the crown to the first click position.
- Set the date: Rotate the crown to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this may interfere with the automatic date change mechanism.
- Push in the crown: Once the date is set, push the crown back into its normal position.
Image: Side view of the NIXON Magnacon A154-001 watch, highlighting the crown and pushers used for setting time and date.
Operating Your Watch
Basic Timekeeping
Your NIXON Magnacon A154-001 watch is a quartz movement timepiece, providing accurate timekeeping. The watch displays hours, minutes, and seconds.
Water Resistance
This watch features 30 meters (3 ATM) of water resistance. This rating means the watch is suitable for everyday use and can withstand splashes or brief immersion in water. It is not suitable for swimming, showering, or diving. Ensure the crown is fully pushed in before any contact with water.
Maintenance
Cleaning
- Wipe the watch case and bracelet regularly with a soft, dry cloth to remove dust and dirt.
- For stubborn dirt, use a slightly damp cloth and then dry thoroughly. Avoid using harsh chemicals or abrasive materials.
Battery Replacement
The watch is powered by a quartz battery. When the battery runs low, the second hand may start skipping seconds or stop entirely. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
Storage
When not in use, store your watch in a cool, dry place away from direct sunlight and extreme temperatures. Avoid exposing the watch to strong magnetic fields.

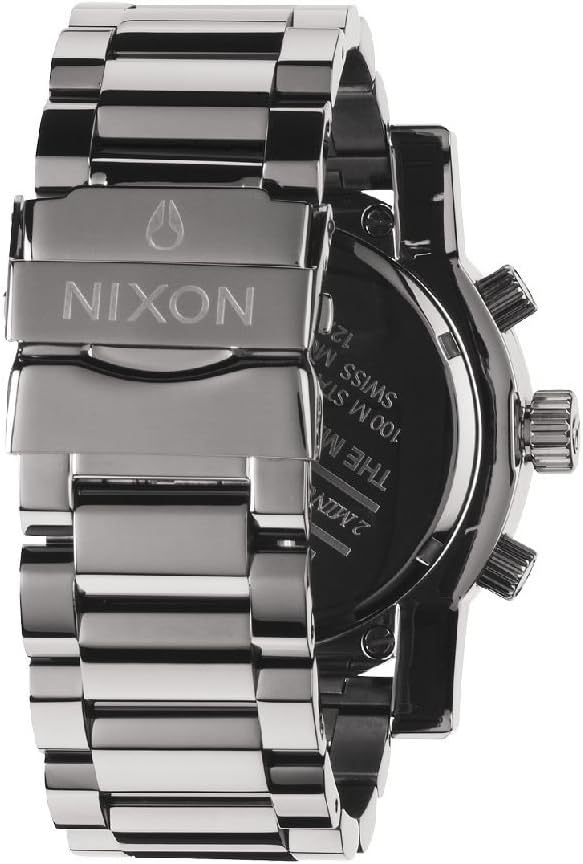

Image: Rear view of the NIXON Magnacon A154-001 watch, displaying the stainless steel case back and the bracelet clasp.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch has stopped or is running slow. | Low battery. | Replace the battery by a qualified technician. |
| Time is incorrect. | Crown not fully pushed in after setting. | Reset the time and ensure the crown is fully pushed in. |
| Date is incorrect. | Date not set correctly or adjusted during restricted hours. | Reset the date, avoiding 9 PM to 3 AM. |
| Condensation inside the watch. | Exposure to extreme temperature changes or compromised water resistance. | Contact customer support or a qualified watch repair center immediately. |
Specifications
- Model Number: A154-001
- Brand: NIXON
- Movement: Quartz
- Display Type: Analog
- Case Shape: Round
- Case Diameter: 48 mm
- Case Thickness: 12 mm
- Band Width: 25 mm
- Water Resistance: 30 Meters (3 ATM) - Suitable for splashes, not swimming or diving.
- Special Features: Second hand
- Product Weight: Approximately 272.16 g (0.6 pounds)
Warranty and Support
For warranty information, service, or support, please refer to the official NIXON website or contact your authorized NIXON retailer. Keep your proof of purchase for warranty claims.
Official NIXON Website: www.nixon.com
