KOHLER K30671 Float Valve Kit Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your KOHLER K30671 Float Valve Kit. This genuine KOHLER part is constructed from durable brass, designed to ensure reliable performance in your toilet system. Please read these instructions carefully before proceeding with installation or any maintenance.

Product Overview

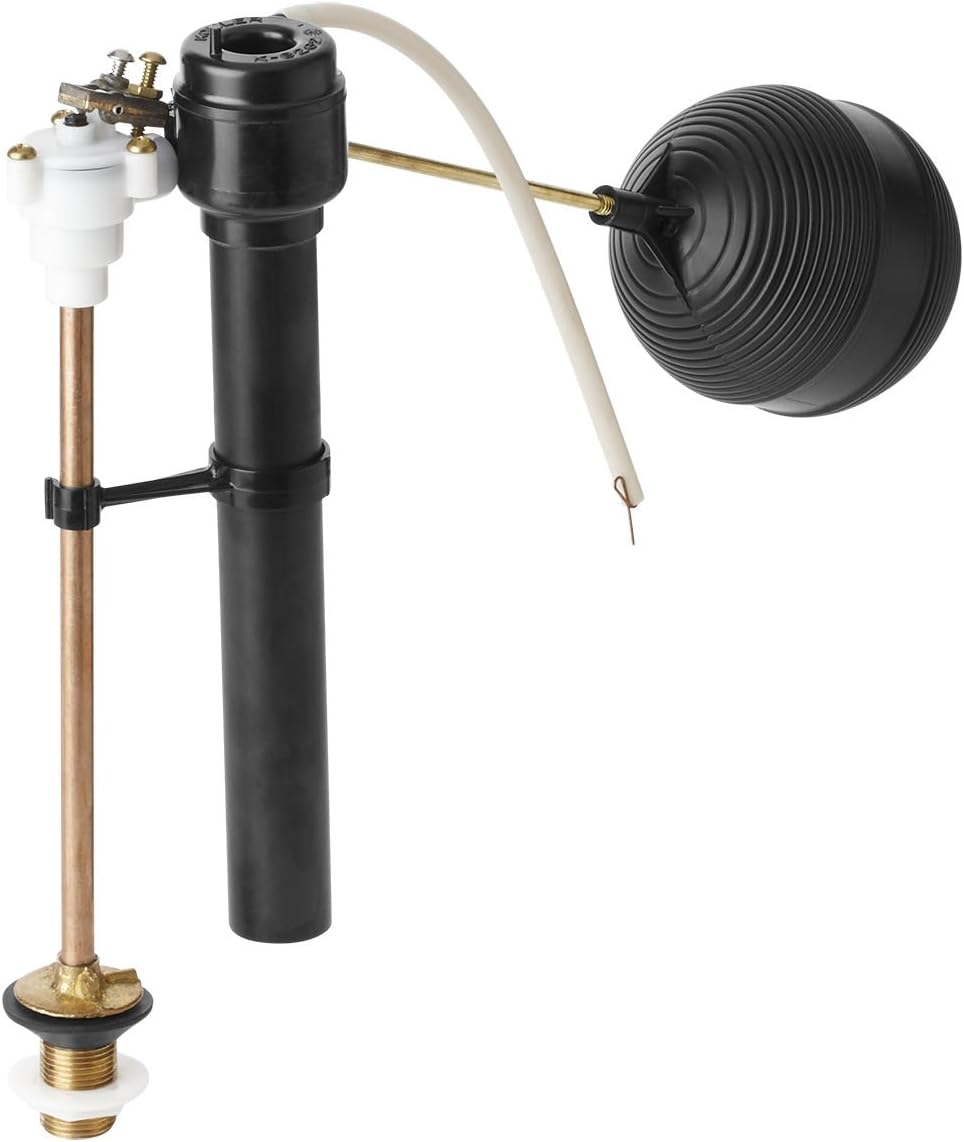

Image 1: The KOHLER K30671 Float Valve Kit, showing the brass float rod, black float ball, and the main valve assembly. This kit is designed to regulate water levels in toilet tanks.

The float valve kit is a critical component in a toilet tank, responsible for controlling the water refill process after flushing. It consists of a float ball attached to a rod, which rises with the water level. Once the water reaches a predetermined level, the float mechanism signals the valve to shut off the water supply, preventing overflow and conserving water.

Specifications

Setup and Installation

Before beginning installation, ensure you have the correct float valve kit for your specific toilet model. Compatibility is crucial for proper function and fit. Refer to your toilet's original documentation or the KOHLER website for compatibility information if unsure.

Required Tools:

• Adjustable wrench
• Screwdriver (if needed for existing components)
• Bucket or towels for water cleanup

Installation Steps:

1. Turn Off Water Supply: Locate the water supply valve to your toilet, usually on the wall behind or near the toilet, and turn it clockwise until the water flow stops completely.
2. Flush Toilet: Flush the toilet to empty the tank. Hold the flush handle down to drain as much water as possible.
3. Remove Remaining Water: Use a sponge or towel to remove any remaining water from the tank.
4. Disconnect Supply Line: Disconnect the water supply line from the bottom of the old float valve using an adjustable wrench. Be prepared for a small amount of residual water.
5. Remove Old Float Valve: Unscrew the mounting nut from the underside of the toilet tank that secures the old float valve. Carefully lift the old float valve out of the tank.
6. Install New Float Valve: Insert the new KOHLER K30671 Float Valve Kit into the hole at the bottom of the toilet tank. Ensure the rubber washer is correctly seated inside the tank.
7. Secure New Float Valve: From the underside of the tank, thread and tighten the mounting nut onto the new float valve. Hand-tighten first, then use an adjustable wrench for a final snug turn. Do not overtighten.
8. Connect Supply Line: Reconnect the water supply line to the bottom of the new float valve. Hand-tighten, then use a wrench for a final snug turn.
9. Connect Refill Tube: Attach the refill tube from the float valve to the overflow pipe of the flush valve. Ensure it is securely placed to direct water into the overflow pipe for bowl refill.
10. Turn On Water Supply: Slowly turn the water supply valve counter-clockwise to restore water flow to the toilet tank.
11. Check for Leaks: Observe the connections for any leaks. If leaks are present, gently tighten the connections further.
12. Adjust Water Level: Allow the tank to fill. The water level should stop approximately 1 inch below the top of the overflow pipe. If adjustment is needed, refer to the "Operating" section for instructions on adjusting the float.

Operating the Float Valve (Water Level Adjustment)

The KOHLER K30671 Float Valve Kit is designed to automatically regulate the water level in your toilet tank. However, you may need to adjust the water level to optimize flushing performance or to address specific tank requirements.

Adjusting Water Level:

The float ball's position on the brass rod determines the water shut-off point. To adjust the water level:

• To Increase Water Level: Gently bend the brass float rod upwards, raising the float ball. This will allow the tank to fill with more water before the valve shuts off.
• To Decrease Water Level: Gently bend the brass float rod downwards, lowering the float ball. This will cause the valve to shut off at a lower water level.

After adjustment, flush the toilet and observe the new water level. Repeat the adjustment process if necessary until the desired water level is achieved. The water level should always remain below the top of the overflow pipe to prevent continuous running or overflow.

Maintenance

Regular maintenance can extend the life of your float valve and ensure efficient toilet operation.

• Inspect Annually: Periodically inspect the float valve for signs of wear, corrosion, or mineral buildup.
• Clean Components: If mineral deposits are present, turn off the water supply, drain the tank, and gently clean the float ball and rod with a soft brush and a mild descaling solution (e.g., vinegar). Rinse thoroughly before reassembling.
• Check for Leaks: Regularly check for any slow leaks around the base of the float valve or the water supply line connection. Address any leaks promptly to prevent water waste and potential damage.
• Ensure Free Movement: Confirm that the float ball and rod move freely without obstruction within the tank.

Troubleshooting

This section addresses common issues you might encounter with your KOHLER K30671 Float Valve Kit.

Issue: Toilet Runs Continuously or Cycles On/Off

• Water Level Too High: The water level might be set too high, causing water to continuously flow into the overflow pipe. Adjust the float rod downwards to lower the water level (refer to "Operating" section).
• Float Ball Obstruction: Check if the float ball or rod is obstructed by other tank components, preventing it from rising fully. Clear any obstructions.
• Worn Valve Seal: The internal seal of the float valve may be worn or damaged, allowing water to seep through. While this kit is a complete assembly, if the issue persists after checking other factors, the valve itself might need replacement.

Issue: Toilet Tank Fills Slowly or Not at All

• Water Supply Valve Partially Closed: Ensure the main water supply valve to the toilet is fully open.
• Clogged Inlet Screen: The float valve may have a small inlet screen that can become clogged with sediment. Turn off the water, disconnect the supply line, and check for debris. Clean if necessary.
• Float Ball Stuck: Ensure the float ball is not stuck in a downward position or filled with water, which would prevent it from rising and activating the fill mechanism.

Issue: Toilet Bowl Overflows During Refill (after flush)

• Refill Tube Issue: Ensure the refill tube is properly inserted into the overflow pipe and is not kinked or blocked. The refill tube directs water to the bowl during tank refill. If the bowl fills too quickly and overflows, the flow rate through the refill tube might be too high for your specific toilet bowl design. Some float valves allow for adjustment of the refill rate, or you may need to ensure the correct nozzle is used if multiple options were provided with the original toilet.
• Flapper/Flush Valve Leak: A leaking flapper or flush valve can cause the tank to drain slowly, leading to the bowl overflowing if the refill rate is too fast. Inspect the flapper for proper seal.

Warranty and Support

The KOHLER K30671 Float Valve Kit comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in material and workmanship under normal use and service.

For warranty claims, technical assistance, or further support, please contact KOHLER customer service. You may need your proof of purchase and the product model number (K30671) or part number (392237) when contacting support.

For the most up-to-date contact information and resources, please visit the official KOHLER website: www.kohler.com
