Simran SYM-800 Deluxe 800 Watt Voltage Converter

Important Safety Information

Please read all instructions carefully before using the Simran SYM-800 Voltage Converter. Failure to follow these instructions may result in electric shock, fire, or damage to the unit or connected appliances. Keep this manual for future reference.

• Wattage Matching: Always ensure the wattage of your appliance does not exceed the converter's maximum capacity (800W). For continuous use, allow at least a 100% safety margin (e.g., for a 400W appliance, use an 800W converter).
• Surge Protection: For heating appliances, laser printers, and power tools, which experience power spikes upon startup, use a converter with at least three times the appliance's rated wattage. For televisions, allow a five-times wattage margin.
• Ventilation: Place the converter in a well-ventilated area. Do not cover the ventilation openings.
• Environment: Do not expose the unit to moisture, rain, or extreme temperatures. Avoid direct sunlight and heat sources.
• Casing: Do not open the converter's casing. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
• Children: Keep the converter out of reach of children.
• Unplug When Not In Use: Always unplug the converter from the wall outlet when it is not in use.

Product Features

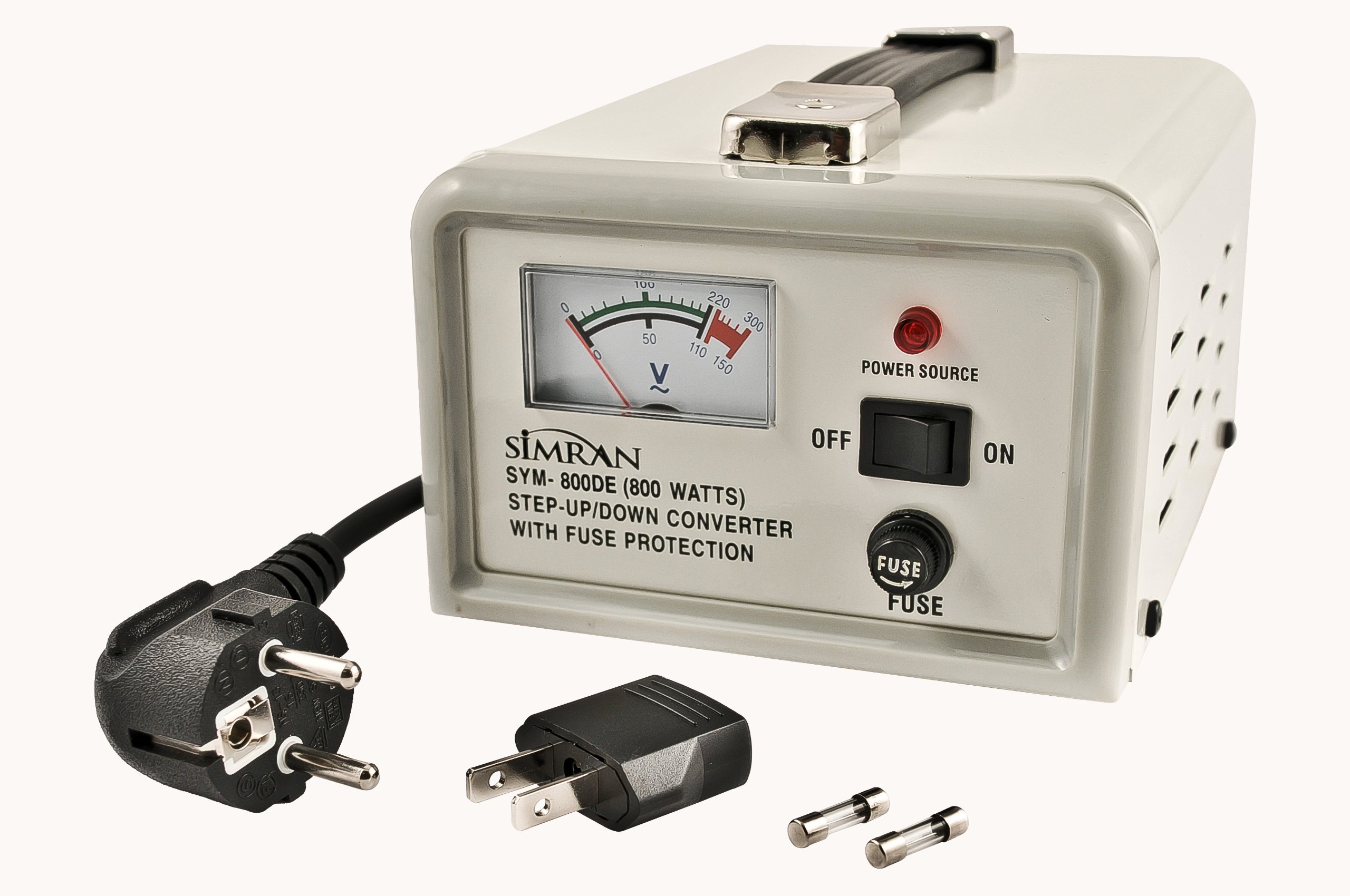

Image: Simran SYM-800 Deluxe 800 Watt Voltage Converter, showing its front panel with analog meter and rear outlets.

The Simran SYM-800 is a heavy-duty continuous use transformer designed for worldwide use, offering both step-up and step-down voltage conversion. Key features include:

• 800 Watt Maximum Capacity: Suitable for a wide range of electronic appliances.
• Bi-directional Voltage Conversion: Converts 110/120 Volt to 220/240 Volt, and 220/240 Volt to 110/120 Volt.
• On/Off Switch with Indicator Lamp: For easy power control and status indication.
• Integrated Automatic Protection Circuit: Enhances safety and protects against overloads.
• Analog Voltage Meter: Displays the exact input voltage on the front panel.
• Universal Outlets: Three outlets on the rear of the unit accept 3-prong or 2-prong US plugs and 2-prong Euro/Asian plugs.
• Insulated Power Cord: Hard-wired with a European Schuko plug, also compatible with Asian outlets. Includes a 2-prong USA plug adapter for use in the USA, Canada, and Mexico.
• Durable Construction: Heavy-duty metal casing with an attached handle for easy portability.
• Fuse Protected: Provides an additional layer of safety.

Setup Instructions

1. Unpack the Converter: Carefully remove the Simran SYM-800 from its packaging and inspect it for any signs of damage.
2. Choose a Location: Place the converter on a stable, flat, and dry surface. Ensure there is adequate ventilation around the unit to prevent overheating. Avoid placing it near heat sources, in direct sunlight, or in areas with high humidity.
3. Calculate Appliance Wattage:
   • Identify the wattage (W) of the appliance you intend to connect. This information is usually found on the appliance's label or in its manual.
   • For most appliances, select a converter with at least double the appliance's wattage for safe, continuous operation.
   • For appliances with motors, heating elements, or high startup surges (e.g., laser printers, power tools, refrigerators), choose a converter with at least three times the appliance's wattage.
   • For televisions, a converter with at least five times the appliance's wattage is recommended.
   • Do not exceed the SYM-800's maximum capacity of 800 Watts.
4. Connect Converter to Power Source:
   • The SYM-800 automatically detects the input voltage (110/120V or 220/240V). No manual voltage selection switch is required.
   • Plug the converter's power cord into the appropriate wall outlet. Use the included 2-prong USA adapter if connecting to a US/Canadian 110/120V outlet.
5. Connect Appliance to Converter: Plug your appliance's power cord into one of the three universal outlets located on the rear panel of the Simran SYM-800.

Operating Instructions

1. Power On: Once the converter and appliance are connected, press the On/Off switch located on the unit. The indicator lamp will illuminate, signifying that the converter is powered on.
2. Monitor Voltage: The analog meter on the front panel will display the exact input voltage, allowing you to confirm the power supply.
3. Use Appliance: You can now operate your connected appliance.
4. Power Off: When you are finished using the appliance, press the On/Off switch again to turn off the converter. The indicator lamp will extinguish.
5. Disconnect: Always unplug the converter from the wall outlet when it is not in use for extended periods.

Maintenance

• Cleaning: Disconnect the converter from the power source before cleaning. Wipe the exterior of the unit with a dry, soft cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the casing.
• Storage: When not in use, store the converter in a cool, dry place, away from direct sunlight and moisture.
• Fuse Replacement: The SYM-800 is fuse protected. If the unit ceases to function, the internal fuse may have blown due to an overload or fault. Fuse replacement should only be performed by a qualified technician. Do not attempt to replace the fuse yourself.

Troubleshooting

If you encounter issues with your Simran SYM-800 converter, please refer to the following common problems and solutions:

• No Power to Converter:
  • Ensure the converter's power cord is securely plugged into a functional wall outlet.
  • Check that the On/Off switch is in the 'On' position and the indicator lamp is illuminated.
  • Test the wall outlet with another device to confirm it is supplying power.
  • If the unit remains unresponsive, the internal fuse may have blown. Contact customer support or a qualified technician.
• Appliance Not Working When Connected:
  • Verify that your appliance is correctly plugged into one of the converter's outlets.
  • Confirm that the appliance's own power switch is turned on.
  • Recheck the wattage requirements of your appliance against the converter's capacity, including surge allowances. An overloaded converter will not function correctly.
  • Ensure the converter is powered on (indicator lamp illuminated).
• Converter Overheating:
  • Ensure the converter is placed in a well-ventilated area with no obstructions to airflow.
  • Reduce the load on the converter by disconnecting high-wattage appliances if it is operating near its maximum capacity.
  • Unplug the unit and allow it to cool down completely before attempting to use it again.

Specifications

Warranty and Support

For detailed warranty information, technical support, or to inquire about service, please visit the official Simran website or contact their customer service department. Please have your model number (SYM-800) and purchase date available when contacting support.
