1. Introduction
This manual provides essential information for the safe and effective use of the MARS 10466 1/5-3/4 MULTI hp 115V Direct Drive Blower Motor. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper handling and to prevent potential hazards. This motor is designed for direct drive blower applications, commonly found in HVAC systems.
2. Safety Information
WARNING: Electrical shock hazard. Always disconnect power before installing, servicing, or cleaning this motor. Installation and maintenance should only be performed by qualified personnel.
- Ensure all local and national electrical codes are followed during installation.
- Verify that the supply voltage matches the motor's voltage rating (115V).
- Do not operate the motor if it is damaged or has exposed wiring.
- Keep hands, tools, and clothing clear of moving parts during operation.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
3. Product Overview
The MARS 10466 is a versatile direct drive blower motor designed for various applications requiring reliable air movement. It features multiple horsepower ratings and speeds to accommodate different system requirements.

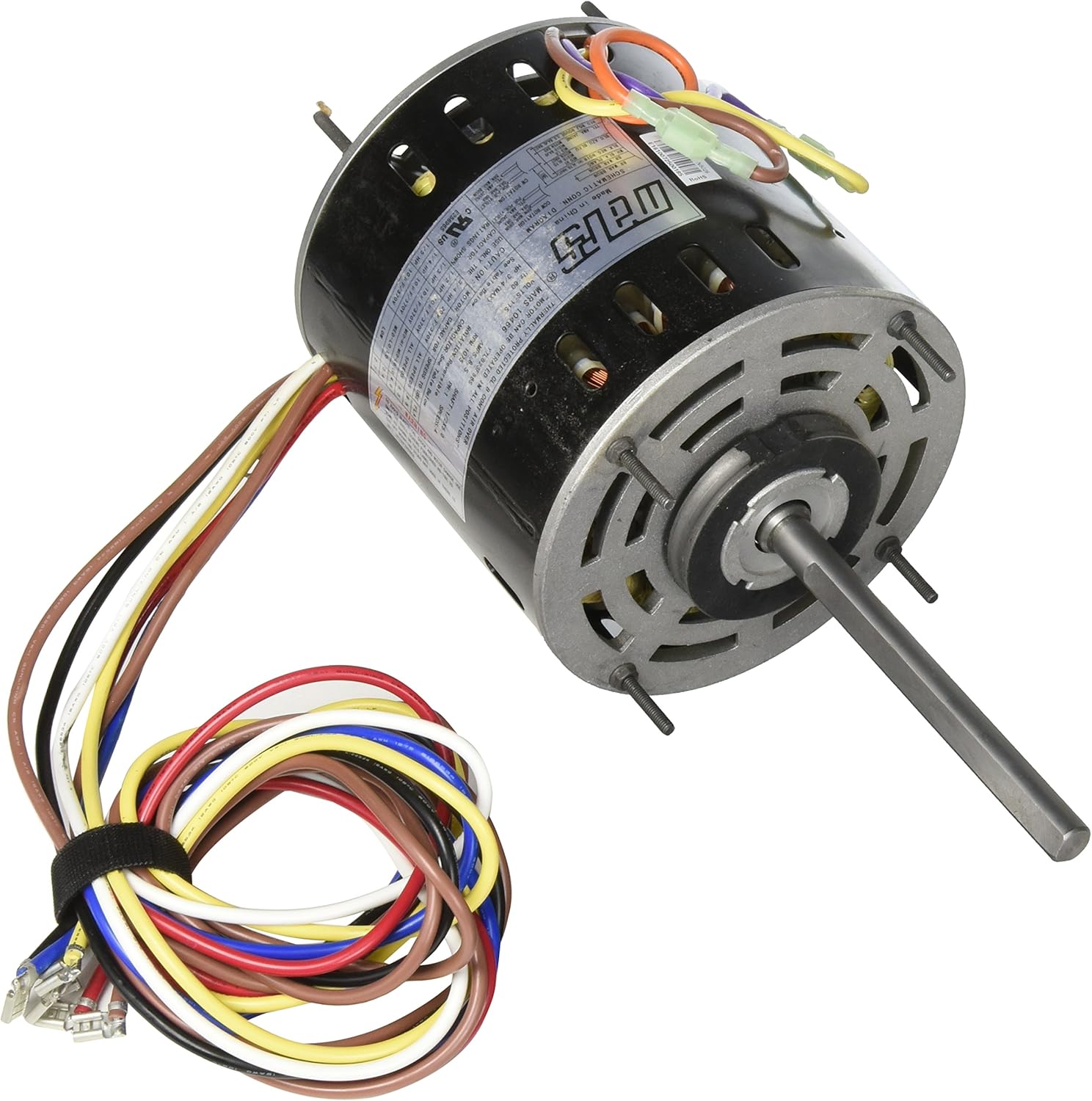

Figure 3.1: Front view of the MARS 10466 Blower Motor, showing the motor body, shaft, and the bundled multi-colored wiring harness. The motor label with specifications is visible on the side.
Figure 3.2: Angled view of the MARS 10466 Blower Motor, highlighting the motor's rear end, mounting studs, and the various colored wires connected to the motor terminals, some with crimped connectors.
Key Features:
- Motor type: PSC (Permanent Split Capacitor)
- Enclosure: Open
- Multi-rated Horsepower: 1/5 - 3/4 HP
- Voltage: 115V
- Speeds: 4
- Rotation: Reversible (REV)
- RPM Range: 1075
- NEMA Frame Size: 48
- Phase: Single
- Standards: cUL listed
- Item Weight: Approximately 1.0 lb (motor only, actual shipping weight may vary)
- Dimensions: 5.5"L x 3.0"W x 5.5"H
4. Setup and Installation
Installation of the MARS 10466 blower motor requires electrical and mechanical expertise. It is strongly recommended that installation be performed by a certified HVAC technician or a qualified electrician.
- Power Disconnection: Before beginning any work, ensure that the main power supply to the HVAC unit or appliance is completely disconnected and locked out. Verify with a voltage tester.
- Old Motor Removal: Carefully remove the existing motor, noting all wiring connections and mounting positions. Take photographs for reference if necessary.
- Mounting: Mount the new MARS 10466 motor securely in the designated position. Ensure proper alignment with the blower wheel or fan blade.
- Wiring: Refer to the wiring diagram provided with your specific HVAC unit or the motor's label for correct electrical connections. This motor has multiple speed taps (wires) that must be connected according to the system's requirements. Incorrect wiring can damage the motor or the system. Ensure all connections are secure and insulated.
- Capacitor Connection: This is a PSC motor and requires an external run capacitor (not included). Connect the capacitor according to the motor's wiring diagram.
- Rotation Check: Before fully reassembling the unit, temporarily restore power (briefly and safely) to verify the motor's rotation direction. If the rotation is incorrect, consult the wiring diagram for reversal instructions (this motor is reversible).
- Reassembly: Once installation and rotation are confirmed, reassemble the HVAC unit components.
- Final Power Up: Restore main power and test the system's operation.
5. Operating Instructions
The MARS 10466 blower motor operates as an integral component of your HVAC system. Once properly installed and wired, its operation is controlled by the thermostat and the system's control board.
- Automatic Operation: The motor will engage and disengage automatically based on the heating or cooling demands set by the thermostat.
- Speed Selection: The motor's 4 speeds allow for different airflow rates. The specific speed used will depend on how the motor was wired during installation, typically corresponding to different heating/cooling stages or continuous fan operation.
- Normal Sounds: During operation, the motor will produce a consistent hum. Any unusual noises (grinding, squealing, rattling) should be investigated immediately.
6. Maintenance
Regular maintenance helps ensure the longevity and efficient operation of your blower motor. Always disconnect power before performing any maintenance.
- Cleaning: Periodically inspect the motor and blower assembly for dust and debris accumulation. Use a soft brush or vacuum cleaner to gently remove dirt from the motor's exterior and cooling vents. Do not use water or liquid cleaners directly on the motor.
- Lubrication: This motor is typically designed with sealed bearings and does not require periodic lubrication. Refer to the motor's label or manufacturer's specifications for confirmation. Do not lubricate if not specified.
- Vibration Check: Annually, check for excessive vibration during operation. Excessive vibration can indicate an unbalanced blower wheel or motor issues.
- Wiring Inspection: Annually, inspect all electrical connections for tightness and signs of wear or corrosion.
7. Troubleshooting
If you experience issues with your blower motor, consult the table below. For complex problems, contact a qualified HVAC technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power; faulty wiring; seized motor; faulty capacitor. | Check circuit breaker/fuse; verify wiring connections; check motor shaft for free rotation; test/replace capacitor. |
| Motor runs but no airflow | Blower wheel detached or broken; obstruction in ductwork. | Inspect blower wheel connection to shaft; check for blockages. |
| Unusual noise (grinding, squealing) | Worn bearings; foreign object in blower; unbalanced blower wheel. | Inspect for obstructions; professional inspection for bearings/balance. |
| Motor overheats and shuts off | Restricted airflow; incorrect voltage; motor overload; faulty capacitor. | Check air filters and ducts for blockages; verify voltage; ensure motor is sized correctly for load; test/replace capacitor. |
Note: Always disconnect power before attempting any troubleshooting steps. If you are unsure, contact a qualified technician.
8. Technical Specifications
| Attribute | Value |
|---|---|
| Brand | MARS - Motors & Armatures |
| Model Number | 10466 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Enclosure | Open |
| Horsepower (HP) | 1/5 - 3/4 MULTI hp |
| Voltage | 115V |
| Frequency | 60 Hz |
| Speeds | 4 |
| Rotation | Reversible (REV) |
| RPM Range | 1075 RPM |
| NEMA Frame Size | 48 |
| Phase | Single |
| Standards | cUL listed |
| Item Weight | 1.0 lb (16 ounces) |
| Product Dimensions | 5.5"L x 3.0"W x 5.5"H |
| UPC | 685744104667 |
| Included Components | 1 blower motor |
9. Warranty Information
Specific warranty terms for the MARS 10466 blower motor are provided by the manufacturer, MARS - Motors & Armatures, Inc., or the seller at the time of purchase. Please refer to your purchase documentation or contact the seller/manufacturer directly for detailed warranty coverage, duration, and claim procedures.
Keep your proof of purchase for warranty claims.
10. Customer Support
For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please contact the manufacturer or your authorized distributor.
Manufacturer: MARS - Motors & Armatures, Inc.
Contact information (phone, website) should be obtained from the product packaging or the manufacturer's official website.
