1. Setup
1.1 Unpacking and Initial Inspection
Carefully remove your ASUS K52F-A2B laptop from its packaging. Inspect the laptop and all accessories for any signs of damage. The package should contain the laptop, AC adapter, power cord, and documentation.

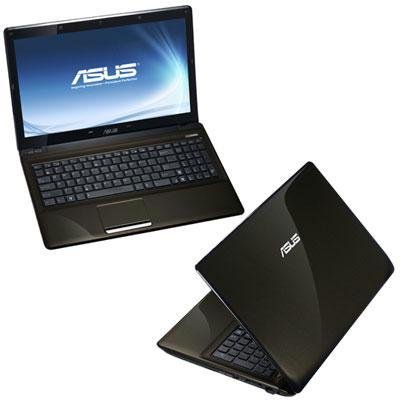

Image 1.1: The ASUS K52F-A2B laptop. This image shows the closed laptop from an angle, highlighting its dark brown finish and sleek design.
1.2 Connecting the AC Adapter
Before initial use, connect the AC adapter to the laptop and a power outlet. This ensures the battery is charged and provides stable power for setup.
- Plug the AC adapter into the power connector on the side of your laptop.
- Plug the power cord into the AC adapter.
- Plug the other end of the power cord into a grounded electrical outlet.
1.3 Initial Power On
Once the AC adapter is connected, open the laptop lid and press the power button. The laptop will begin its initial boot sequence. Follow the on-screen instructions to complete the operating system setup (Windows 7 Professional 64-bit).
2. Operating Your ASUS K52F-A2B Laptop
2.1 Power On/Off and Sleep Mode
- Power On: Press the power button located above the keyboard.
- Power Off: Click the Start button, then select 'Shut down'.
- Sleep Mode: Close the laptop lid or select 'Sleep' from the Start menu. Press the power button or any key to wake the laptop.
2.2 Using the Keyboard and Touchpad
The ASUS K52F-A2B features a full-sized keyboard and a multi-touch touchpad.
- Keyboard: Standard QWERTY layout with function keys (Fn) for brightness, volume, and other system controls.
- Touchpad: Supports multi-touch gestures for scrolling, zooming, and navigation. Refer to the operating system's help for detailed gesture information.
2.3 Connecting External Devices
Your laptop provides various ports for connecting external devices:
- USB Ports: For connecting USB devices such as mice, keyboards, and external storage.
- HDMI Port: Connects to external displays or TVs for high-definition video and audio output.
- VGA Port: Connects to older external monitors or projectors.
- Audio Jacks: For headphones and microphones.
- Ethernet Port: For wired network connections.
2.4 Using the Optical Disk Drive
The laptop includes a Super Multi Optical Disk Drive for reading and writing CDs and DVDs.
- Press the eject button on the drive to open the tray.
- Place a CD or DVD onto the tray with the label side facing up.
- Gently push the tray back into the laptop until it clicks shut.
3. Maintenance
3.1 Cleaning Your Laptop
Regular cleaning helps maintain the laptop's appearance and functionality.
- Screen: Use a soft, lint-free cloth lightly dampened with water or a screen cleaner. Do not spray liquid directly onto the screen.
- Keyboard and Casing: Use a soft, dry cloth. For stubborn dirt, a cloth lightly dampened with mild soap and water can be used. Ensure the laptop is powered off and unplugged before cleaning.
- Vents: Use compressed air to clear dust from the cooling vents to prevent overheating.
3.2 Battery Care
To maximize battery life and performance:
- Avoid fully discharging the battery frequently.
- Store the laptop in a cool, dry place when not in use for extended periods.
- If storing for a long time, charge the battery to about 50% before storage.
3.3 Software Updates
Regularly update your operating system and drivers to ensure optimal performance and security. Check the ASUS support website for the latest drivers for your K52F-A2B model.
4. Troubleshooting
This section addresses common issues you might encounter with your ASUS K52F-A2B laptop.
4.1 Power Issues
- Laptop does not turn on: Ensure the AC adapter is securely connected to both the laptop and a working power outlet. Check if the power outlet is functional. If the battery is completely drained, allow it to charge for a few minutes before attempting to power on.
- Laptop shuts down unexpectedly: This could indicate overheating. Ensure cooling vents are clear and the laptop is on a hard, flat surface.
4.2 Display Problems
- No display on screen: Connect an external monitor to the VGA or HDMI port to check if the issue is with the laptop's internal display. Press Fn+F8 to toggle display output modes.
- Dim display: Adjust screen brightness using the Fn+F5 (dim) and Fn+F6 (bright) function keys.
4.3 Connectivity Issues
- Wi-Fi not connecting: Ensure Wi-Fi is enabled (often via a function key, e.g., Fn+F2). Check network settings in Windows.
- USB device not recognized: Try connecting the device to a different USB port. Ensure device drivers are installed.
4.4 Operating System Recovery
The ASUS K52F-A2B comes with Windows 7 Professional. For system recovery or reinstallation, it is recommended to use the recovery partition or create recovery media as instructed by ASUS. Note that official support for downgrading to Windows XP Pro may be limited, and recovery media for Windows 7 Pro might need to be created by the user.
5. Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | K52F-A2B |
| Processor | Intel Core i3-350M (2.26 GHz) |
| Operating System | Windows 7 Professional 64-bit |
| Display | 15.6-inch HD (1366x768) LED |
| Graphics | Intel GMA HD (Integrated) |
| RAM Memory | 3 GB DDR3 1066MHz (Max 8GB) |
| Storage | 320 GB Hard Drive (5400 RPM) |
| Optical Drive | DVD SuperMulti |
| Wireless Connectivity | 802.11bgn |
| Ports | HDMI, VGA, USB, Audio Jacks |
| Webcam | 0.3 MP |
| Weight | 5.8 Pounds |
6. Warranty and Support
6.1 Warranty Information
Your ASUS K52F-A2B laptop comes with the following warranty coverage:
- 2-Year Global Warranty
- 1-Year Accidental Damage Warranty
- 30-Day Zero Bright Dot Guarantee
- 2-way FREE shipping for repairs
6.2 Technical Support
For technical assistance, driver downloads, or further information, please visit the official ASUS support website. 24/7 technical support is available as part of your warranty.
For the most up-to-date support contact information, please refer to the documentation included with your product or visit www.asus.com/support.
