Introduction
This manual provides essential information for the safe and efficient use of your Behringer Eurolive B215D-WH Active 550-Watt 2-Way PA Speaker System. Please read these instructions carefully before operating the device to ensure proper setup, optimal performance, and longevity of your speaker.
The B215D-WH is a high-power, lightweight, active PA speaker featuring a 15-inch woofer and a 1.35-inch compression driver, powered by revolutionary Class-D amplifier technology for clear sound reproduction.
Important Safety Instructions
- Power Supply: Connect the unit only to the specified mains voltage. Ensure the power cord is undamaged and properly grounded.
- Moisture: Do not expose this equipment to rain or moisture. Do not use near water or in damp conditions.
- Ventilation: Ensure adequate ventilation. Do not block ventilation openings. Install in accordance with the manufacturer's instructions.
- Heat: Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Cleaning: Clean only with a dry cloth.
- Attachments: Use only attachments/accessories specified by the manufacturer.
Package Contents
Upon unpacking, please verify that all components are present and in good condition:
- Behringer Eurolive B215D-WH Active PA Speaker System
- Power Cable
- User Manual (this document)
Setup
Physical Placement
The B215D-WH speaker can be used as a floor-standing unit or mounted on a standard speaker pole. Ensure the speaker is placed on a stable, level surface or securely mounted to a pole designed to support its weight (approximately 45.3 pounds).

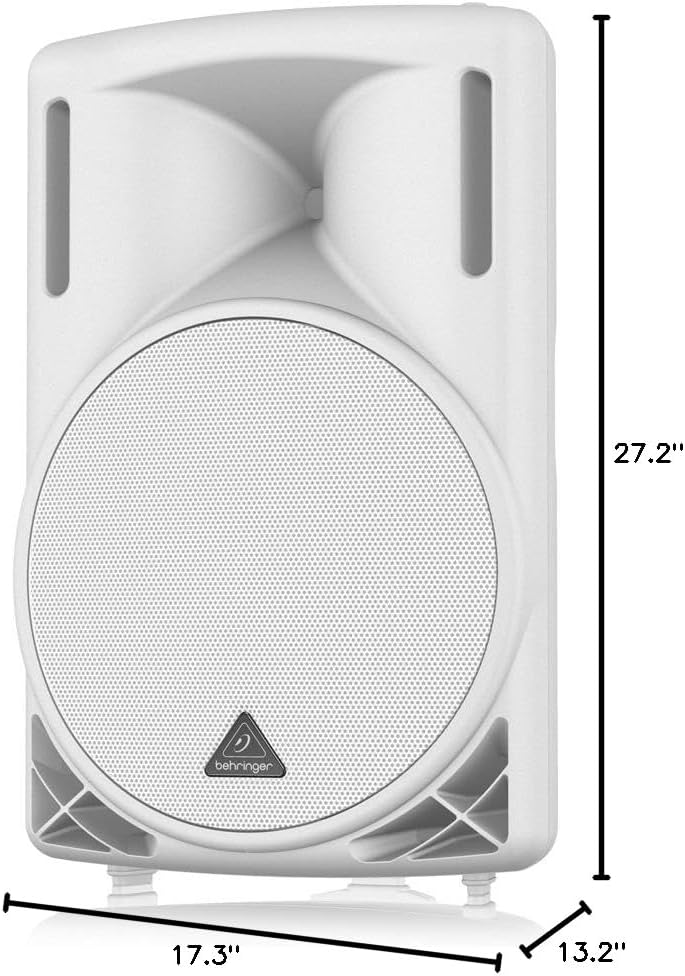

Figure 1: Speaker dimensions for placement reference.
Connections
The B215D-WH features XLR connectivity for audio input and output. Ensure all audio cables are securely connected before powering on the unit.
- INPUT: Connect your audio source (mixer, microphone, instrument) to the XLR input.
- LINK OUTPUT: Use the XLR link output to connect to another active speaker or an external audio device, allowing you to daisy-chain multiple speakers.
Figure 2: Rear panel with input/output connections and controls.
Power Connection
Connect the provided power cable to the AC inlet on the rear panel of the speaker and then to a suitable grounded electrical outlet. Ensure the power switch is in the 'OFF' position before connecting to power.
Operating
Controls Overview
Refer to Figure 2 for the location of the following controls:
- INPUT LEVEL: This knob controls the overall volume of the audio signal entering the speaker. Start with this control at its minimum setting.
- POWER SWITCH: Turns the speaker on or off.
- POWER LED: Illuminates when the speaker is powered on.
- CLIP LED: Illuminates when the input signal is too high, indicating potential distortion. Reduce the input level if this LED lights up frequently.
Basic Operation
- Ensure all audio connections are made and the INPUT LEVEL knob is set to minimum.
- Connect the power cable and flip the POWER SWITCH to the 'ON' position. The POWER LED should illuminate.
- Start playing audio from your source.
- Slowly increase the INPUT LEVEL knob on the speaker until the desired volume is reached. Monitor the CLIP LED; if it flashes frequently, reduce the input level to prevent distortion.
- To power off, turn the INPUT LEVEL knob to minimum, then flip the POWER SWITCH to 'OFF'.
Maintenance
Cleaning
To maintain the appearance and performance of your speaker:
- Always disconnect the power cable before cleaning.
- Use a soft, dry, lint-free cloth to wipe down the exterior surfaces.
- Do not use abrasive cleaners, solvents, or waxes, as these can damage the finish.
- Avoid spraying liquids directly onto the speaker.
Storage
When not in use for extended periods, store the speaker in a cool, dry environment, away from direct sunlight and extreme temperatures. If possible, use the original packaging for protection.
Troubleshooting
If you encounter issues with your B215D-WH speaker, refer to the following common problems and solutions:
- No Power:
- Ensure the power cable is securely connected to both the speaker and a working electrical outlet.
- Check if the power outlet is active by plugging in another device.
- Verify the POWER SWITCH is in the 'ON' position.
- No Sound:
- Check all audio cable connections (XLR input) from your source to the speaker.
- Ensure the INPUT LEVEL knob on the speaker is turned up.
- Verify that your audio source (mixer, instrument) is producing sound and its output level is sufficient.
- If using the LINK OUTPUT, ensure the connected speaker is also powered and functioning.
- Distorted Sound:
- Reduce the INPUT LEVEL on the speaker. If the CLIP LED is frequently flashing, the input signal is too strong.
- Check the output level of your audio source; it might be too high.
- Ensure all cables are in good condition and properly connected.
Specifications
| Feature | Specification |
|---|---|
| Brand | Behringer |
| Model Name | B215D-WH |
| Speaker Type | 2-Way Active PA Speaker (Woofer) |
| Speaker Maximum Output Power | 550 watts |
| Connectivity Technology | XLR |
| Mounting Type | Floor Standing |
| Subwoofer Diameter | 15 inches |
| Item Dimensions (D x W x H) | 13.2"D x 17.3"W x 27.2"H |
| Item Weight | 45.3 pounds |
| Power Source | Corded Electric |
| Number of Audio Channels | 2 |
Warranty Information
For detailed information regarding the warranty for your Behringer Eurolive B215D-WH speaker, please refer to the official Behringer warranty policy available online:
Support
If you require further assistance or have questions not covered in this manual, please visit the official Behringer support website or contact their customer service for expert help.
