VIGO Bova Single Handle Bathroom Faucet Instruction Manual

Product Overview

The VIGO Bova Single Handle Bathroom Faucet (Model VG01023CH) is designed for modern bathroom aesthetics and reliable performance. This single-hole, single-handle faucet features solid brass construction, ensuring durability and a long lifespan. It incorporates a high-quality ceramic disc cartridge for drip-free operation and a lasting finish that resists corrosion and tarnishing.

Image: The VIGO Bova Single Handle Bathroom Faucet in Chrome finish, showcasing its sleek design and single lever handle.

Key features include:

• Solid Brass Construction: Provides exceptional durability and longevity.
• Ceramic Disc Cartridge: Ensures smooth operation and prevents drips.
• Corrosion and Tarnish Resistant Finish: Maintains its appearance over time.
• Single Handle Operation: Allows for easy control of water volume and temperature.
• Optimal Flow Rate: Designed to conserve water without compromising water pressure.

Image: The VIGO Bova Faucet installed on a bathroom sink, demonstrating its integration into a contemporary bathroom design.

Setup and Installation

The VIGO Bova Faucet is designed for effortless single-hole installation. It utilizes standard US plumbing 3/8" connections. The hot and cold lines are metal braided PEX, offering high pressure resistance, freeze resistance, and thermostable properties. A standard 1 3/8" diameter opening is required for proper installation.

Image: A diagram illustrating the effortless installation features, including the 3/8" plumbing connections and the required 1 3/8" diameter opening for the faucet.

Pre-Installation Checklist:

• Ensure all necessary parts are present (faucet body, mounting hardware, hot/cold supply lines).
• Verify the sink or countertop has a single hole with a 1 3/8" diameter.
• Turn off the main water supply to the bathroom.
• Clear the area under the sink for easy access.

Basic Installation Steps:

1. Insert the faucet body into the single mounting hole on the sink or countertop.
2. From underneath the sink, secure the faucet using the provided mounting hardware (washer and mounting nut).
3. Connect the hot and cold supply lines from the faucet to the corresponding water supply valves. Ensure connections are hand-tightened, then use a wrench for a final quarter turn, being careful not to overtighten.
4. Once connections are secure, slowly turn on the main water supply and check for leaks.
5. Test the faucet operation, checking both hot and cold water flow and temperature control.

For detailed, step-by-step installation instructions, please refer to the comprehensive installation manual provided with your product or available for download from the VIGO website.

Operating Instructions

The VIGO Bova Faucet features a single lever handle for convenient control of water flow and temperature. Its design ensures ease of use for daily tasks.

Water Flow and Temperature Control:

• To turn the water on, lift the single lever handle upwards.
• To increase water flow, lift the handle further upwards. To decrease flow, lower the handle.
• To adjust water temperature, pivot the handle left for hot water and right for cold water.
• To turn the water off, push the handle downwards to its original closed position.

The faucet is designed with an optimal flow rate of 1.5 Gallons Per Minute (GPM), which conserves water without compromising water pressure, contributing to efficient water usage.

Maintenance and Care

Proper maintenance will ensure the longevity and continued aesthetic appeal of your VIGO Bova Faucet. The faucet is constructed with long-lasting hardware, including a Sedal ceramic disc valve tested for 500,000 uses, and an aerator that is easy to remove for cleaning.

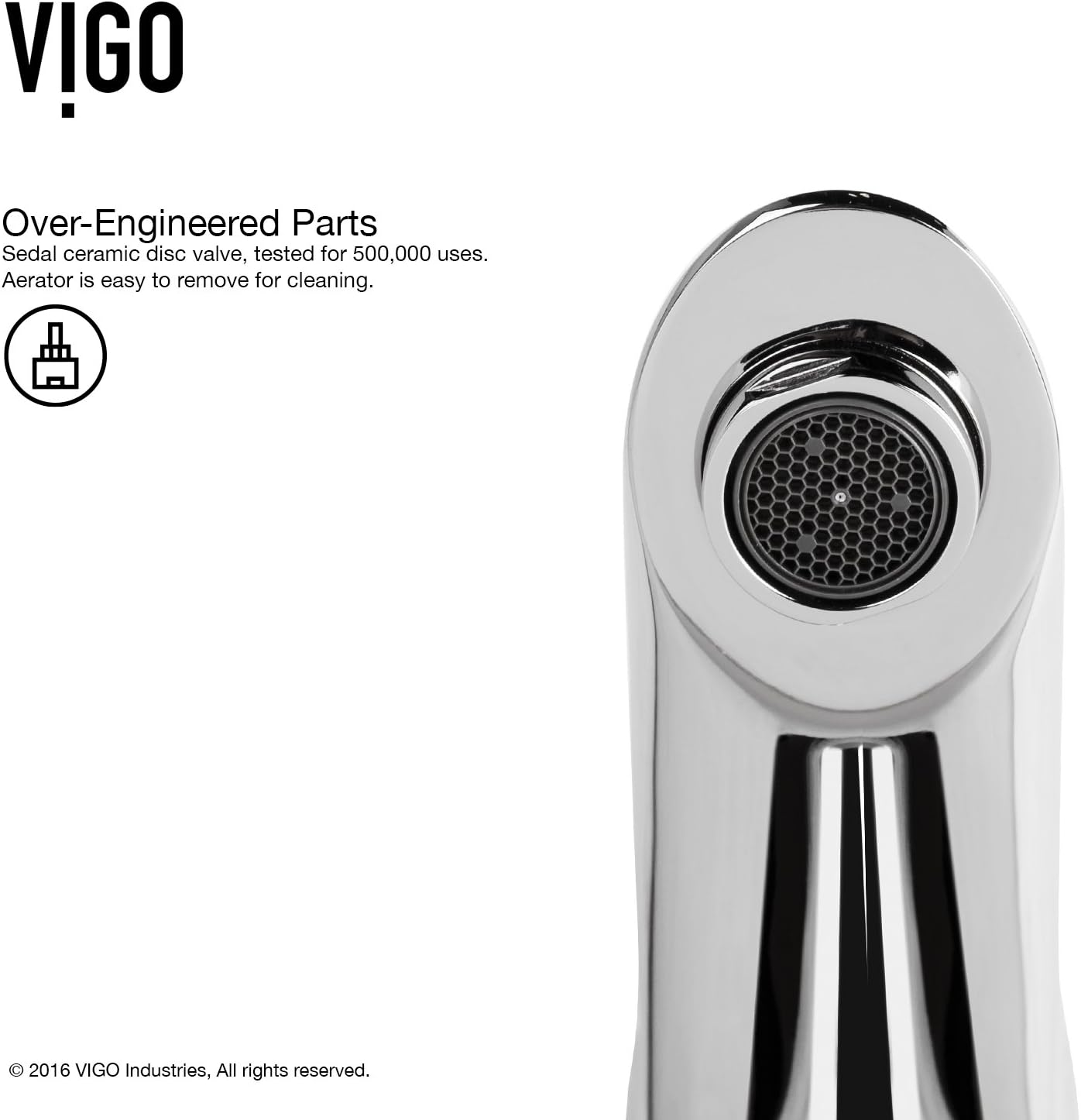

Image: A close-up view highlighting the faucet's aerator and the internal ceramic disc valve, emphasizing the "Over-Engineered Parts" for durability and easy maintenance.

Cleaning Instructions:

• Clean the faucet regularly with a soft cloth and mild soap.
• Rinse thoroughly with clean water after cleaning.
• Dry the faucet with a soft cloth to prevent water spots.
• Avoid: Abrasive cleaners, harsh chemicals, scouring pads, or acidic cleaners, as these can damage the finish.

Aerator Maintenance:

If you notice reduced water flow or irregular spray patterns, the aerator may be clogged with debris. The aerator is designed for easy removal and cleaning:

1. Unscrew the aerator from the tip of the faucet spout.
2. Disassemble the aerator components and rinse them under running water to remove any sediment or debris.
3. Use a soft brush or toothpick to dislodge stubborn particles if necessary.
4. Reassemble the aerator components and screw it back onto the faucet spout, ensuring it is hand-tight.

Troubleshooting

This section provides solutions to common issues you might encounter with your VIGO Bova Faucet. If the problem persists after attempting these solutions, please contact VIGO customer support.

Specifications

Detailed technical specifications for the VIGO Bova Single Handle Bathroom Faucet (Model VG01023CH).

Image: A technical drawing providing detailed dimensions of the VIGO Bova Faucet, including height, spout reach, and base diameter.

Warranty and Support

VIGO stands behind the quality of its products. The VIGO Bova Single Handle Bathroom Faucet comes with a Limited Lifetime Support, ensuring peace of mind regarding its performance and durability.

Most VIGO products, including this faucet, include a limited lifetime warranty. This warranty covers defects in material and workmanship under normal use and service. For specific details regarding the terms and conditions of your warranty, please refer to the warranty documentation included with your purchase or visit the official VIGO website.

Customer Support:

If you have any questions, require technical assistance, or need to make a warranty claim, please contact VIGO customer service. You can find contact information on the official VIGO website or through the retailer where you purchased the product.

For additional resources and product information, you may visit the official VIGO store on Amazon: VIGO Store.
