Introduction
This manual provides instructions for the proper installation, operation, and maintenance of your LASCO 10-2117 Flex Braided Vinyl Water Supply Line. This product is designed to connect faucets to a water source, ensuring a reliable and lead-free connection for various plumbing applications.
Safety Information
- Always turn off the main water supply before beginning any plumbing work to prevent water damage.
- Ensure all connections are hand-tightened first, then gently tightened with an appropriate wrench to prevent overtightening, which can damage fittings and cause leaks.
- This product is lead-free and meets California AB-1953, Vermont, and new federal standards for low lead applications. It is Uniform Plumbing Code (UPC) certified and approved, ensuring product quality and safety.
- If you are unsure about any installation steps or encounter difficulties, consult a qualified plumber.
Product Overview
The LASCO 10-2117 is a 16-inch braided vinyl water supply line featuring a 3/8-inch female compression fitting on one end and a 1/2-inch female iron pipe (FIP) fitting on the other. It is engineered for flexibility, durability, and ease of installation in residential and commercial plumbing systems.

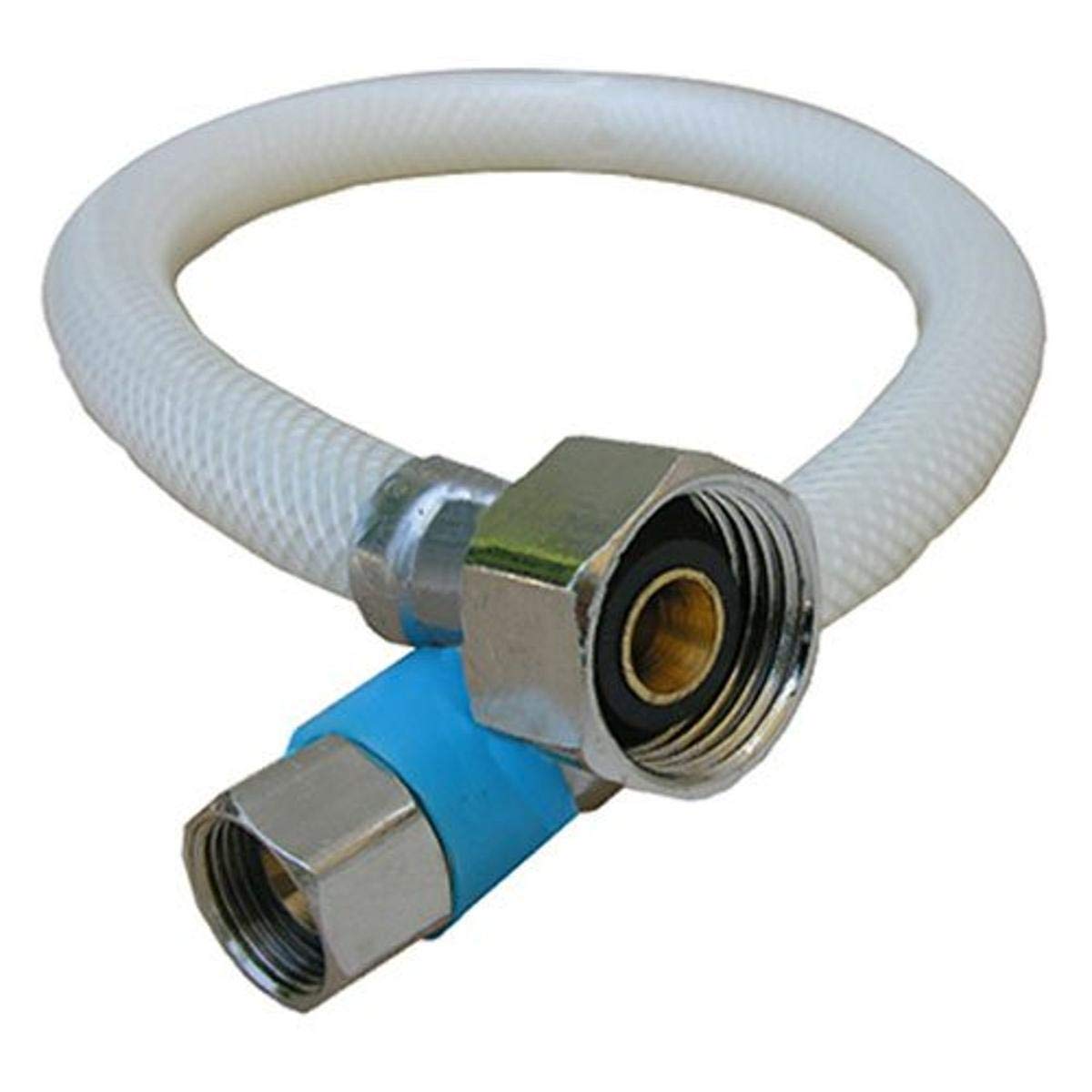

Image: The LASCO 10-2117 braided vinyl water supply line, illustrating its flexible construction and distinct end fittings.
Key Features:
- Size: 3/8-Inch Female Compression x 1/2-Inch Female Iron Pipe (FIP) x 16-Inch length.
- Material: Braided vinyl construction for enhanced flexibility and resistance to kinking.
- Compliance: Lead-free, meeting California AB-1953, Vermont, and federal standards.
- Certification: UPC certified and approved for plumbing applications.
Setup and Installation
Follow these steps carefully to properly install your LASCO 10-2117 water supply line:
- Prepare the Area: Locate the main water shut-off valve for your home or the specific area you are working in and turn off the water supply completely. Open the faucet to drain any residual water from the lines.
- Inspect Fittings: Verify that the faucet's supply shank and the water shut-off valve have compatible male threads for the 3/8-inch compression and 1/2-inch FIP female fittings of the supply line, respectively.
- Connect to Faucet: Attach the 3/8-inch female compression end of the supply line to the corresponding male fitting on the faucet's supply shank. Hand-tighten the connection first, then use an adjustable wrench to tighten an additional 1/4 to 1/2 turn. Avoid overtightening, as this can damage the fitting or washer.
- Connect to Shut-off Valve: Attach the 1/2-inch female iron pipe (FIP) end of the supply line to the male fitting on the water shut-off valve. Hand-tighten first, then use an adjustable wrench to tighten an additional 1/4 to 1/2 turn. Do not overtighten.
- Check Connections: Visually inspect both connections to ensure they are secure, properly aligned, and free from any visible gaps.
- Restore Water Supply: Slowly and gradually turn on the main water supply.
- Check for Leaks: Carefully inspect both ends of the supply line for any signs of leaks, drips, or moisture. If a leak is detected, immediately turn off the water supply, gently tighten the problematic connection, and recheck. Repeat if necessary, but do not force the connection.
Operation
Once properly installed, the LASCO 10-2117 water supply line operates passively by conveying water from the shut-off valve to the faucet. Ensure that the shut-off valves are fully open for optimal water flow. Regular visual checks for any signs of leaks or damage are recommended.
Maintenance
- Regular Inspection: Periodically inspect the entire length of the supply line for any signs of wear, kinks, cracks, bulges, or corrosion, especially near the fittings.
- Leak Detection: Routinely check all connections for drips or moisture. Early detection of small leaks can prevent significant water damage.
- Cleaning: If necessary, wipe the exterior of the hose with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals that could degrade the vinyl material.
- Replacement: If any damage, significant wear, or persistent leaks are observed, it is strongly recommended to replace the supply line immediately to prevent potential water damage and ensure plumbing integrity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Leak at connection point | Loose connection, damaged washer/gasket, cross-threaded fitting, overtightened fitting. | Turn off water supply. Gently tighten the connection. If leak persists, disassemble, inspect for damaged washers/gaskets and replace if necessary. Ensure fittings are not cross-threaded. Avoid overtightening. |
| No water flow or reduced flow | Water supply turned off, kinked hose, debris in the line (rare for new installation). | Ensure main water supply and shut-off valve are fully open. Check the supply line for any kinks or sharp bends that might restrict flow. |
Specifications
- Model Number: 10-2117
- Size: 3/8-Inch Female Compression x 1/2-Inch Female Iron Pipe (FIP) x 16-Inch
- Material: Braided Poly Vinyl
- Color: White
- Item Dimensions (L x W x H): 16 x 0.9 x 0.9 inches
- Item Weight: 3.52 ounces
- Certifications: Lead-Free (California AB-1953, Vermont, Federal Standards), UPC Certified
- Manufacturer: LASCO
- UPC: 052151815460
Warranty and Support
For specific warranty information or technical support regarding your LASCO 10-2117 water supply line, please contact LASCO customer service directly. Refer to the product packaging or the official LASCO website for the most current contact details and support resources.
