Laser 4237 Timing Locking Tool Set for VAG Engines User Manual

1. Introduction

The Laser 4237 Timing Locking Tool Set is a specialized kit designed for the accurate timing of Volkswagen Audi Group (VAG) 1.4 and 1.6 twin cam petrol engines, specifically those manufactured from 2003 onwards. This tool set is essential for performing engine maintenance, repairs, and timing belt or chain replacements where precise camshaft and crankshaft alignment is critical. Using the correct timing tools ensures engine integrity and optimal performance.

2. Safety Information

Always observe the following safety precautions when using this tool set:

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on jack stands or a lift before commencing work.
• Disconnect the vehicle's battery to prevent accidental engine cranking.
• Refer to the specific vehicle manufacturer's service manual for detailed engine timing procedures and torque specifications.
• Do not force any tools. If a tool does not fit correctly, re-check the application and procedure.
• Keep the work area clean and well-lit.
• This tool set is intended for use by qualified technicians.

3. Product Overview and Components

The Laser 4237 kit is supplied in a durable blow-moulded storage case, ensuring all components are organized and protected. The set includes various tools essential for engine timing procedures.

Figure 1: The complete Laser 4237 Timing Locking Tool Set housed in its blue blow-moulded storage case. The tools are precisely fitted into custom compartments.

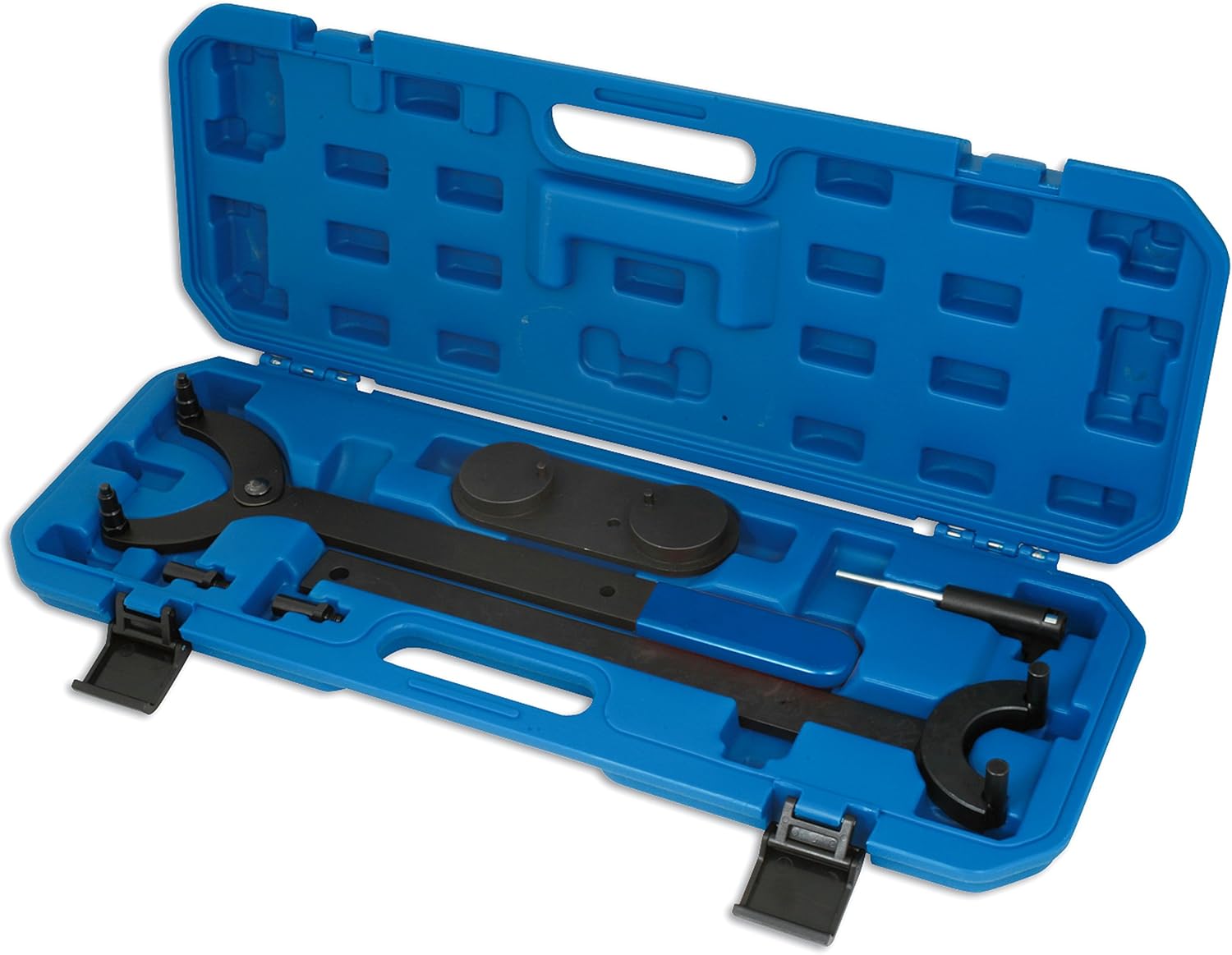

Figure 2: An alternative perspective of the Laser 4237 tool set, showing the various components including sprocket holding tools, tensioner pin, and camshaft alignment tools.

Key Components:

• Tensioner Pin: Used to lock the tensioner in place during timing procedures.
• Sprocket Tool: Designed to hold the engine sprockets securely. The kit includes two types suitable for a wide range of VAG engines.
• Chain Tensioner: A tool to manage and secure the engine's timing chain.
• Cam Adjuster: For precise adjustment of camshaft positions.
• Camshaft Alignment Tool/Pins: Essential for correctly aligning the camshafts to their specified timing positions.
• Camshaft Holding Tools (2 types): Used to prevent camshaft rotation during component removal or installation.

4. Setup and Preparation

Before using the Laser 4237 Timing Locking Tool Set, ensure the following preparatory steps are completed:

1. Vehicle Preparation: Position the vehicle on a level surface and engage the parking brake. Lift the vehicle safely using a hoist or jack stands.
2. Engine Access: Remove any components necessary to gain full access to the engine's timing system (e.g., engine covers, auxiliary belts, crankshaft pulley).
3. Engine at Top Dead Center (TDC): Rotate the engine manually in its normal direction of rotation until the No. 1 cylinder is at Top Dead Center (TDC) on the compression stroke. Verify this position using the vehicle manufacturer's specified marks.
4. Consult Service Manual: Always refer to the specific vehicle manufacturer's service manual for the exact timing procedures, component removal/installation sequences, and torque specifications for the engine being serviced.

5. Operating Instructions

The following general steps outline the use of the timing locking tool set. Always follow the vehicle manufacturer's specific repair instructions.

1. Crankshaft Locking: Once the engine is at TDC, insert the appropriate crankshaft locking pin (if included or required by the vehicle manual) to prevent crankshaft rotation.
2. Camshaft Alignment: Position the camshafts according to the vehicle manufacturer's specifications. Use the camshaft alignment tools and holding tools from the Laser 4237 set to lock the camshafts in their correct timed positions. These tools typically fit into specific slots or holes on the camshafts or cylinder head.
3. Sprocket Holding: Utilize the sprocket holding tools to secure the camshaft sprockets. This is crucial when loosening or tightening the central bolts of the sprockets, preventing damage to the camshafts or timing components.
4. Tensioner Management: If replacing a timing chain or belt, use the tensioner pin to hold the tensioner in its retracted position, allowing for easy removal and installation of the new timing component.
5. Component Replacement: With the engine timed and locked, proceed with the replacement of timing belts, chains, water pumps, or other related components as per the vehicle service manual.
6. Reassembly and Verification: After replacing components, ensure all timing tools are correctly installed. Once all components are tightened to specification, carefully remove all timing locking tools. Rotate the engine manually through at least two full revolutions to confirm free movement and correct timing marks. Re-check timing if necessary.
7. Final Assembly: Reinstall all removed engine components, ensuring all fasteners are torqued to specification.

6. Maintenance

Proper maintenance of your Laser 4237 Timing Locking Tool Set will ensure its longevity and reliable performance:

• Cleaning: After each use, wipe down all tools with a clean cloth to remove oil, grease, and dirt. A mild degreaser can be used if necessary.
• Inspection: Regularly inspect tools for any signs of wear, damage, or deformation. Do not use damaged tools.
• Storage: Store the tool set in its original blow-moulded case in a dry, clean environment to prevent corrosion and loss of components.
• Lubrication: Lightly oil any moving parts or threaded components with a suitable machine oil to prevent rust.

7. Troubleshooting

If you encounter issues while using the Laser 4237 Timing Locking Tool Set, consider the following:

• Tool Does Not Fit: Double-check that the tool set is compatible with the specific engine code and year of the vehicle. Refer to the vehicle's service manual for correct application.
• Difficulty in Alignment: Ensure the engine is precisely at TDC for the No. 1 cylinder on the compression stroke. Small deviations can prevent tools from seating correctly.
• Tools Feel Loose: Verify that all locking pins and alignment tools are fully seated and secured. Do not proceed with work if tools are not firmly in place.
• Engine Does Not Rotate Freely After Timing: This indicates incorrect timing or interference. Do not start the engine. Re-check all timing marks and tool applications. Consult the vehicle service manual immediately.

For persistent issues, consult a professional automotive technician or contact Laser Tools support.

8. Specifications

9. Warranty and Support

For information regarding the warranty of your Laser 4237 Timing Locking Tool Set, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms and conditions may vary.

For technical support or inquiries, please contact Laser Tools directly through their official website or customer service channels. Always provide the model number (4237) when seeking support.
