1. Introduction and Overview
The Progressive Dynamics 5100 Series Automatic Transfer Switch is designed to manage power sources for your RV or similar application. It features a quick-change circuit board for easy replacement and a time delay to ensure stable generator voltage before transfer. Built-in strain reliefs simplify wiring by allowing direct insertion of branch circuit wires, eliminating the need for separate strain reliefs. This unit operates at 120 VAC and 30 Amps, featuring a pigtail connection for convenience.
2. Important Safety Information
WARNING: Product may contain materials cautioned by California Proposition 65.
Multiple 120 Volt power sources are involved. All power sources must be secured OFF before servicing. For your safety, refer to a qualified electrician for installation and maintenance.
3. Product Features
- Quick change circuit board for easy replacement in case of failure.
- Time delay feature ensures generator voltage is at a stable level before transfer occurs.
- Built-in strain reliefs simplify wiring by allowing direct insertion of branch circuit wires.
- Pigtail wiring connection for ease of installation.
- Constructed from flame retardant PC material for good insulation and high temperature resistance.
- Utilizes silver contacts for anti-aging properties, reliability, and improved conductivity and service life.
4. Specifications
| Specification | Value |
|---|---|
| Model Number | PD5110010V |
| Current Rating | 30 Amps |
| Coil Voltage | 120 Volts |
| Maximum Switching Voltage | 120 Volts |
| Operation Mode | Automatic |
| Connector Type | Wired |
| Contact Material | Silver |
| Mounting Type | DIN Rail Mount |
| Product Dimensions | 14 x 10.63 x 4.75 inches |
| Item Weight | 2.55 pounds |
| Specification Met | UL |
5. Installation and Setup
Proper installation is crucial for the safe and efficient operation of your automatic transfer switch. Always ensure all power sources are disconnected before beginning any wiring work. It is recommended to consult a qualified electrician.
5.1 Wiring Diagram
The unit includes a wiring schematic on the inside cover for detailed connection instructions. This diagram illustrates connections for Generator, Shore Power, and the AC Panel. Key connections include:
- Hot and Neutral (Neu) connections for Generator, Shore Power, and the Panel.
- Ground Bar Data: Torque specifications for #4 - #6 (35 IN.LBS), #8 (30 IN.LBS), and #10 - #14 (25 IN.LBS) wires.
- Time Delay / Relay Control: Connections for Yellow (Yel), Black (Bk), White (Wht), and Red (Red) wires.
- Maximum Service: 120V 60Hz 1 Phase 30A/Pole 2 Pole.
- Time Delay: 20-45 Seconds (voltage must exceed 90V) for general loads.
- Continuous load current should not exceed 100% of the switch rating.
Use copper wire only, 75C minimum. When using conduit, the hub must be assembled to the conduit before the hub is installed in the enclosure.

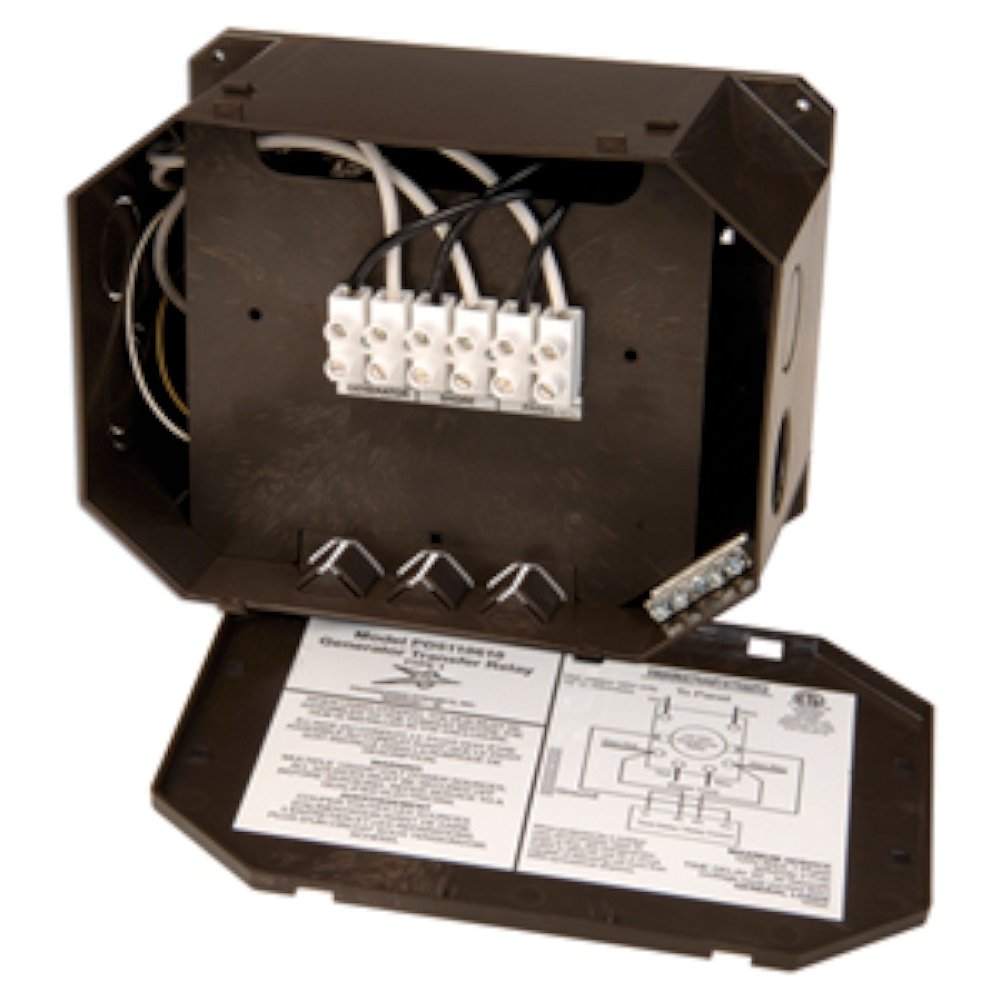

Figure 1: Internal components and wiring layout of the transfer switch.
5.2 Pre-wired Connections
The unit comes pre-wired with pigtail connections for Shore Power and Inverter/Charger inputs, simplifying the initial setup. Ensure these connections are securely fastened.
Video 1: Overview of the 30 Amp Transfer Switch, demonstrating its pre-wired design, internal components, and wiring diagram. This video highlights the durability, waterproof features, and suitability for use with inverters, shore power, and generators.
6. Operating Instructions
The 5100 Series Automatic Transfer Switch operates automatically to switch between available 120 VAC power sources. When both shore power and a generator are connected, the switch prioritizes the generator. Once the generator is shut off, the switch will automatically transfer back to shore power after a built-in time delay (20-45 seconds) to ensure voltage stability. This automatic operation ensures a seamless power transition to your RV's AC panel.
7. Maintenance
Regular inspection of the transfer switch and its connections is recommended to ensure continued safe and reliable operation. Check for any loose wiring, signs of wear, or corrosion. Keep the unit free from dust and debris. If the circuit board requires replacement, the quick-change design allows for easy servicing without disconnecting the entire unit. Always disconnect all power sources before performing any maintenance.
8. Troubleshooting
If the transfer switch is not operating as expected, consider the following:
- No Power Transfer: Ensure both power sources (shore power and generator) are providing adequate and stable voltage. Check all wiring connections for tightness and proper contact.
- Delayed Transfer: The unit has a built-in time delay of 20-45 seconds when switching from generator to shore power. This is normal operation to allow generator voltage to stabilize.
- Intermittent Power: Check for loose connections at the terminals or within the pigtail connectors. Verify that the continuous load current does not exceed the switch's rating.
- Unit Malfunction: If issues persist after checking connections and power sources, the quick-change circuit board may need inspection or replacement. Contact customer support or a qualified electrician.
9. Warranty and Support
This Progressive Dynamics Automatic Transfer Switch comes with a One-Year Limited Warranty. For warranty claims, technical support, or further assistance, please refer to the contact information provided with your purchase or visit the Progressive Dynamics official website.
