Introduction
Thank you for purchasing the Muse M-10 CR Clock Radio. This manual provides important information regarding the setup, operation, and maintenance of your new device. Please read it thoroughly before use and retain it for future reference.
Important Safety Information
- Do not expose this appliance to dripping or splashing water.
- Do not place objects filled with liquids, such as vases, on the appliance.
- Ensure proper ventilation around the unit. Do not block ventilation openings.
- Use only the power adapter supplied with the unit.
- Do not attempt to disassemble or modify the unit. Refer all servicing to qualified personnel.
- Keep the unit away from direct sunlight, heat sources, and strong magnetic fields.
- Clean the unit only with a soft, dry cloth.
Package Contents
Please check that all items are present:
- Muse M-10 CR Clock Radio
- Power Adapter
- User Manual
Product Overview
Familiarize yourself with the controls and display of your Muse M-10 CR.
Image: Front view of the Muse M-10 CR Clock Radio, showing the large white LED display and control buttons on top.
Image: Top view of the Muse M-10 CR Clock Radio, highlighting the control buttons for power, alarm settings, hour/minute adjustment, radio tuning, and the large snooze button.
Controls and Indicators:
- Power Button: Turns the unit on/off.
- Alarm 1 / Alarm 2 Buttons: Set and activate individual alarms.
- HR (Hour) Button: Adjusts the hour.
- MIN (Minute) Button: Adjusts the minute.
- Tuning Buttons (<< / >>): Adjusts radio frequency.
- Snooze Button: Temporarily silences the alarm and dims the display.
- LED Display: Shows time, alarm status, and radio frequency.
Setup
1. Connecting Power
- Insert the DC plug of the power adapter into the DC IN jack on the back of the unit.
- Plug the power adapter into a standard wall outlet (AC 220V, 50Hz).
- The LED display will light up, indicating the unit is powered.
2. Setting the Time
- To set the time, press and hold the HR button to adjust the hour.
- Press the MIN button to adjust the minute.
- Release the buttons to confirm the time. The time will be set in 24-hour format.
Operating Instructions
Radio Operation (FM)
- Press the Power button to turn on the radio.
- Press the Tuning (<< / >>) buttons briefly to manually tune to your desired FM frequency.
- To auto-scan and store presets: Press and hold the Tuning (<< / >>) button for a few seconds. The radio will scan for available stations and store them automatically. The unit supports 20 preset FM stations.
- To recall a preset station: After auto-scanning, use the Tuning (<< / >>) buttons to cycle through the stored preset stations.
Note: For optimal reception, ensure the FM wire antenna (located at the back of the unit) is fully extended.
Setting Alarms (Dual Alarm)
The Muse M-10 CR features a dual alarm system, allowing you to set two separate alarm times.
- Press the Alarm 1 or Alarm 2 button once. The alarm time will flash on the display.
- While the alarm time is flashing, press the HR button to set the alarm hour.
- Press the MIN button to set the alarm minute.
- Press the Alarm 1 or Alarm 2 button again to confirm the alarm time.
- To select the alarm source (Buzzer or Radio), press the respective Alarm 1 or Alarm 2 button repeatedly until the desired icon (buzzer or radio wave) appears next to the alarm indicator on the display.
- To deactivate an alarm, press the corresponding Alarm 1 or Alarm 2 button until the alarm indicator disappears from the display.
Snooze Function
When an alarm sounds, press the large SNOOZE button on top of the unit. The alarm will be temporarily silenced for approximately 9 minutes and will sound again after this period. The snooze function can be used multiple times.
Display Dimmer
The 0.6-inch white LED display has adjustable intensity. Press the SNOOZE button while the unit is in standby mode to cycle through different brightness levels (High, Low, Off). This allows you to adjust the display brightness to your preference, especially for nighttime use.
Maintenance
Cleaning
- Always unplug the unit from the power outlet before cleaning.
- Use a soft, dry cloth to wipe the exterior surfaces of the clock radio.
- Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
Storage
If you plan to store the unit for an extended period, unplug it from the power source and store it in a cool, dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Power adapter not connected or faulty. | Ensure the power adapter is securely plugged into the unit and a working wall outlet. Try a different outlet. |
| Poor radio reception. | Weak signal; antenna not properly extended. | Extend the FM wire antenna fully. Reposition the unit for better reception. |
| Alarm does not sound. | Alarm not set or deactivated; volume too low (for radio alarm). | Verify that the alarm is set and activated (alarm icon visible). Ensure radio alarm volume is audible. |
| Display is too bright/dim. | Display dimmer setting needs adjustment. | Press the SNOOZE button in standby mode to cycle through display brightness levels. |
Specifications

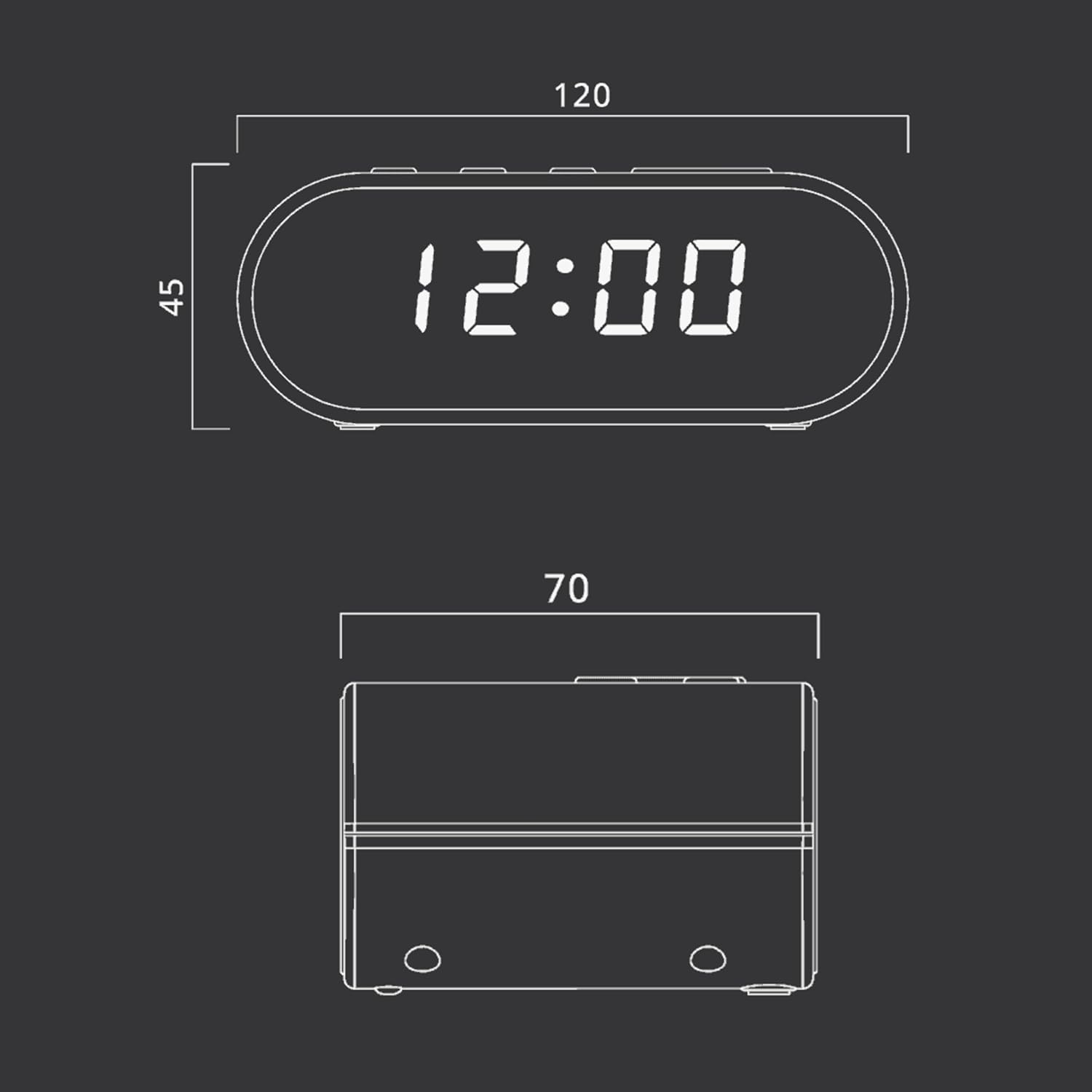

Image: Technical drawing illustrating the dimensions of the Muse M-10 CR Clock Radio, with measurements in millimeters.
- Brand: Muse
- Model Number: 3700460200701
- Color: Schwarz (Black)
- Product Dimensions: 12 x 7 x 10.9 cm (L x W x H)
- Item Weight: 200 g
- Voltage: 220 Volts
- Material: Kunststoff (Plastic)
- Display Type: LED (0.6-inch white)
- Radio: FM PLL Radio with 20 preset stations
- Special Features: Adjustable Brightness, Large Display, Radio, Snooze Function, Dual Alarm
Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your purchase or contact your local Muse distributor or retailer. Keep your proof of purchase for any warranty claims.
You can also visit the official Muse website for further assistance and product information.
